Heater Core: Service and Repair

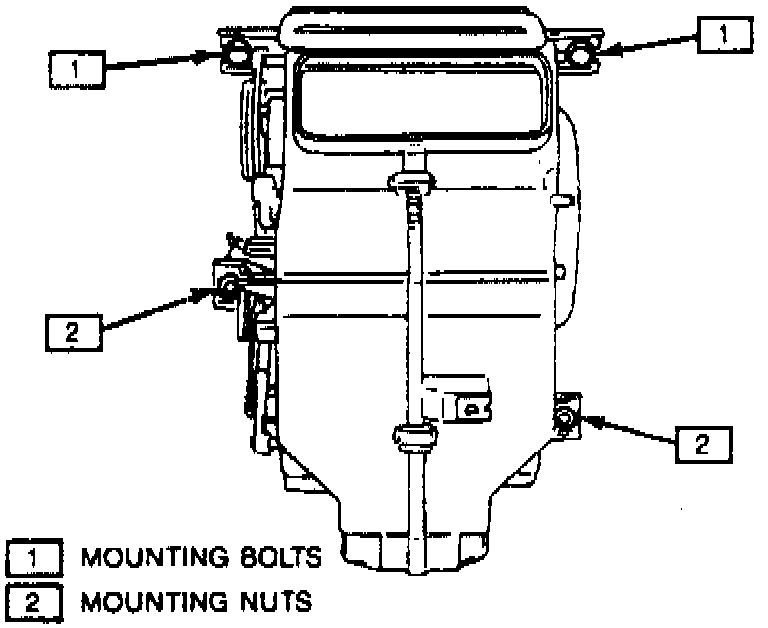

Fig. 15 Heater Case Attaching Bolt & Nut Locations.:

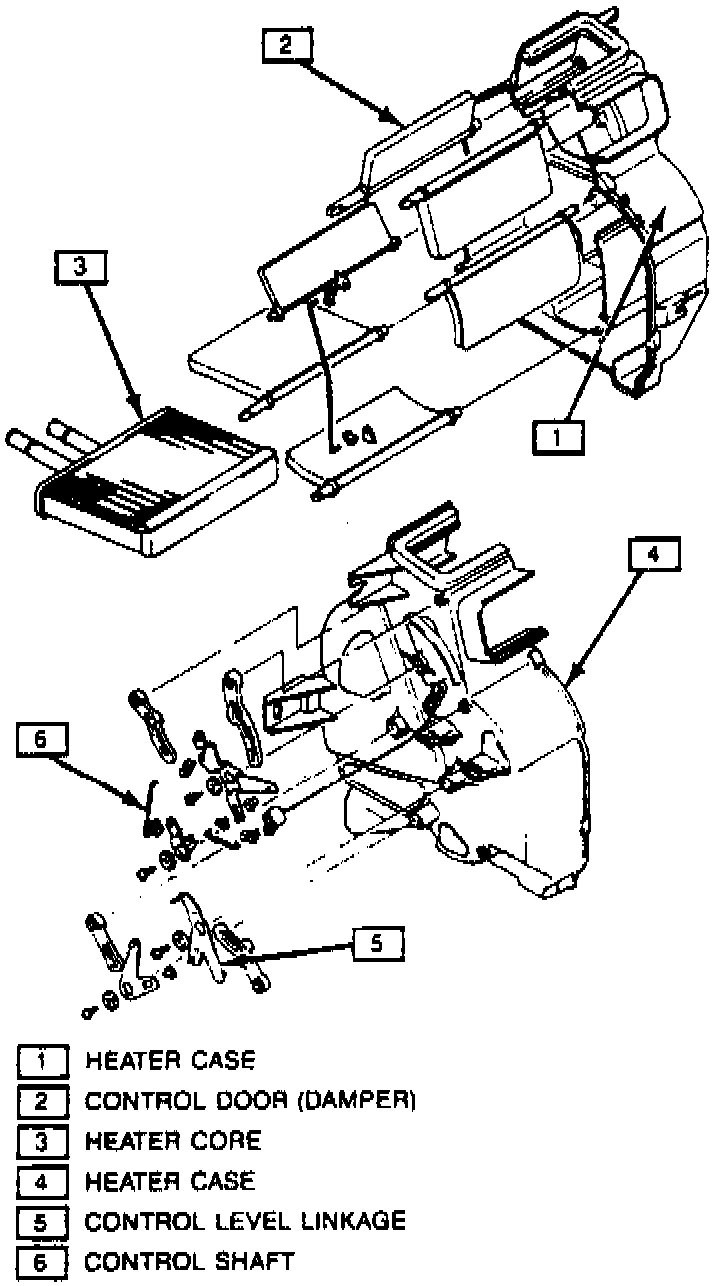

Fig. 16 Exploded View Of Heater Case Assembly.:

1. Disconnect battery ground cable
2. Remove instrument panel as outlined under Dash Panel Service. Refer to Instrument Panel, Gauges and Warning Indicators.
3. Drain coolant into suitable container.
4. Remove heater core clamps and hoses, through engine compartment.
5. Disconnect temperature and mode control cables from heater case.
6. Remove heater case attaching nuts and bolts, Fig. 15 then remove case.
7. Remove heater case clip and two attaching screws, then separate case halves, Fig. 16 .
8. Remove heater core from case.
9. Reverse procedure to install. Torque heater case attaching nuts and bolts to 89 lb in
