Timing Component Alignment Marks: Locations

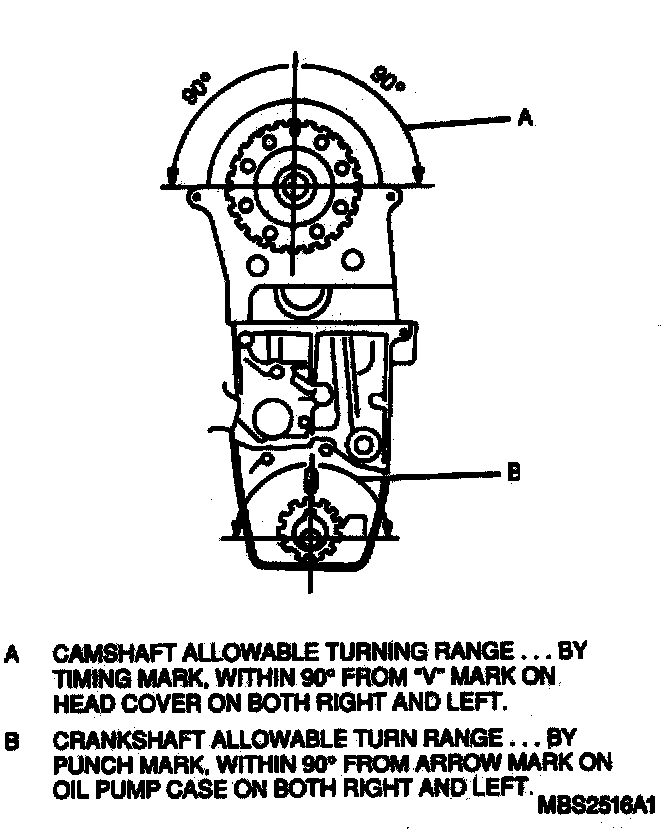

Allowable Turning Range:

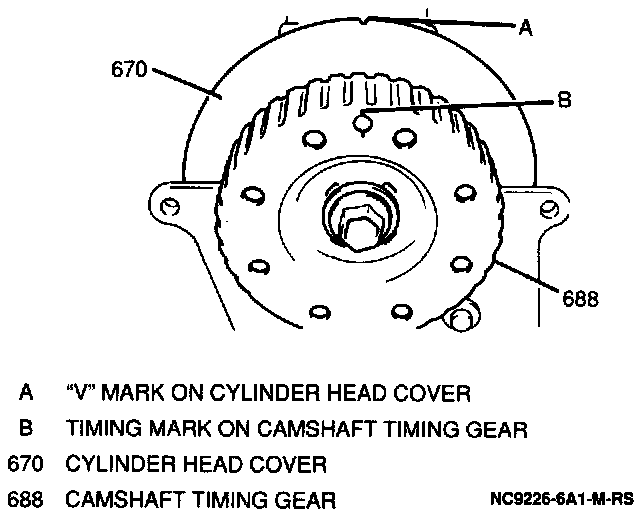

Upper Timing Marks:

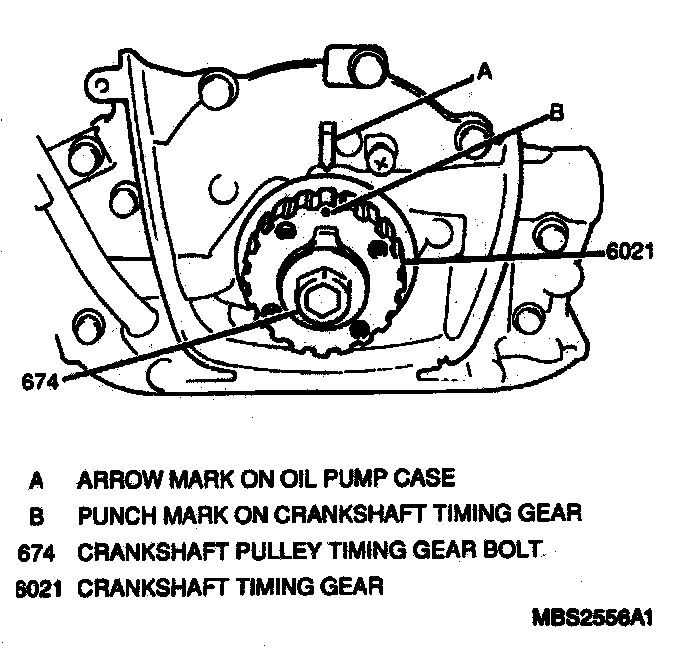

Lower Timing Marks:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information, Service and Repair
