Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Lamps and Indicators - Engine >> Oil Level Warning Indicator >> Testing and Inspection >> Oil Pressure Indicator Does Not Light

Oil Pressure Indicator Does Not Light

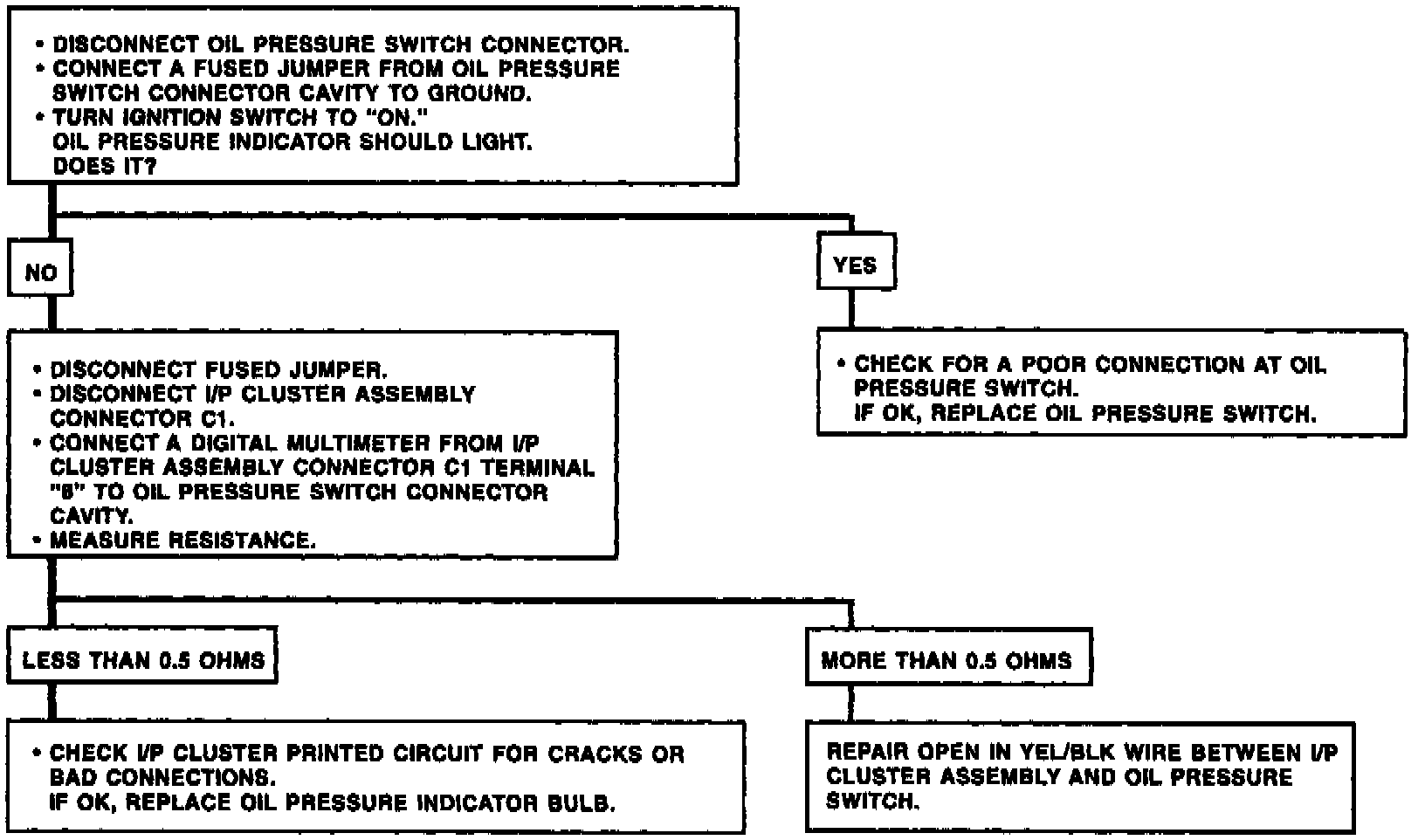

Fig. 141 Chart 8: Oil Pressure Indicator Does Not Light:
