Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse Block Diagrams >> Tail and Stop Fuse

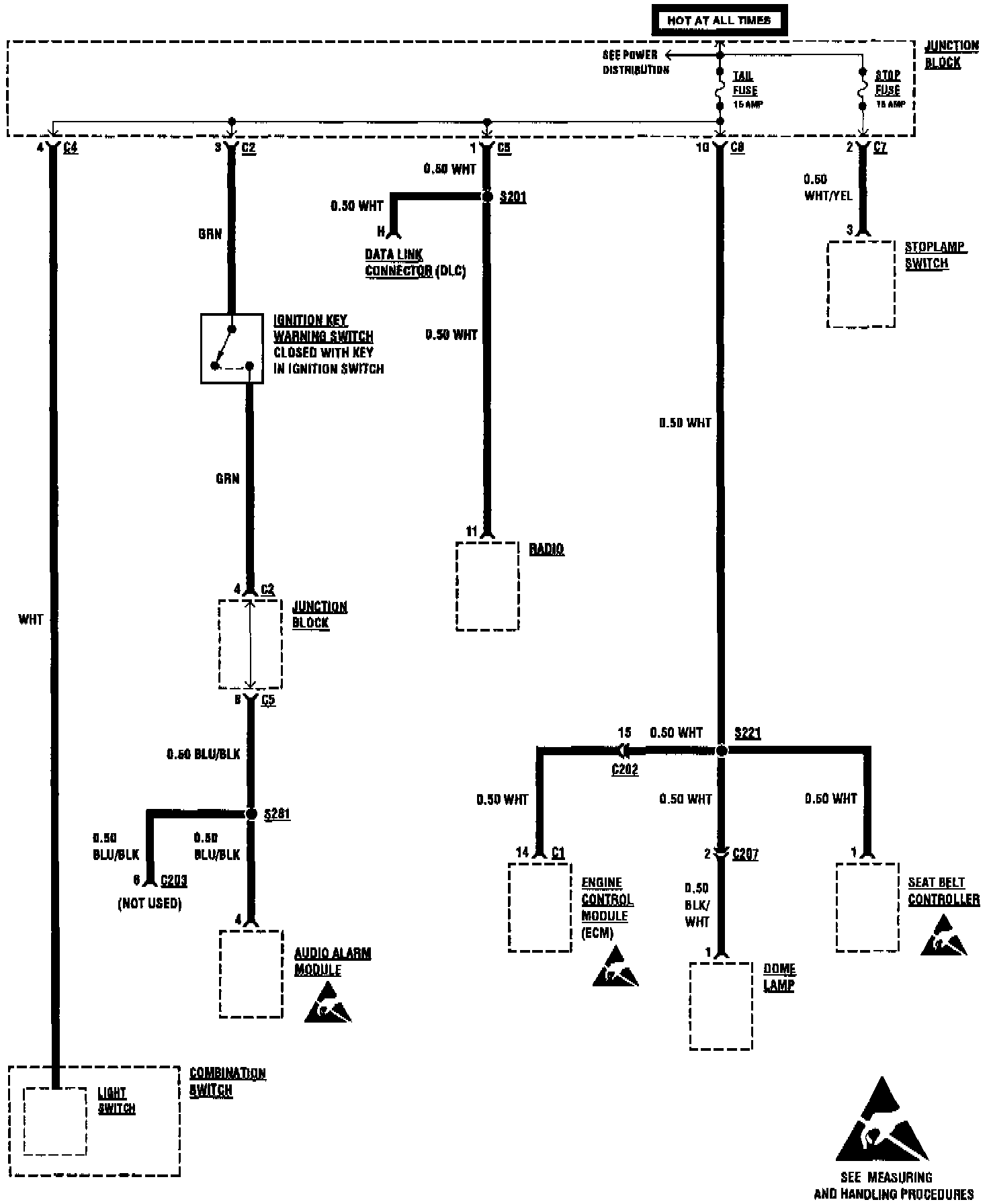

Tail and Stop Fuse

Fuse Block Details:
