Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Ignition Controls >> With Upgraded Emissions

With Upgraded Emissions

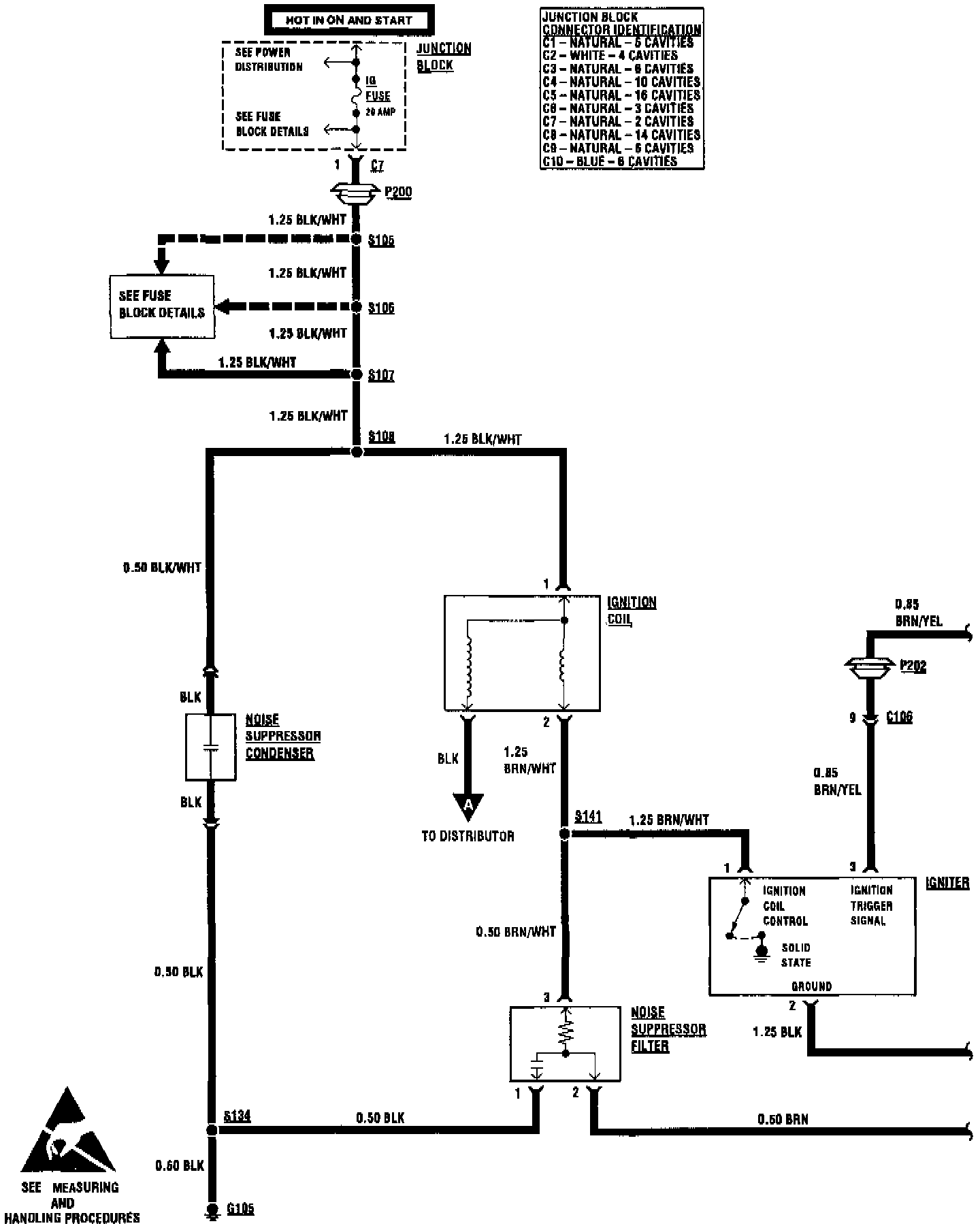

Engine Controls: Ignition - Part 1 Of 2:

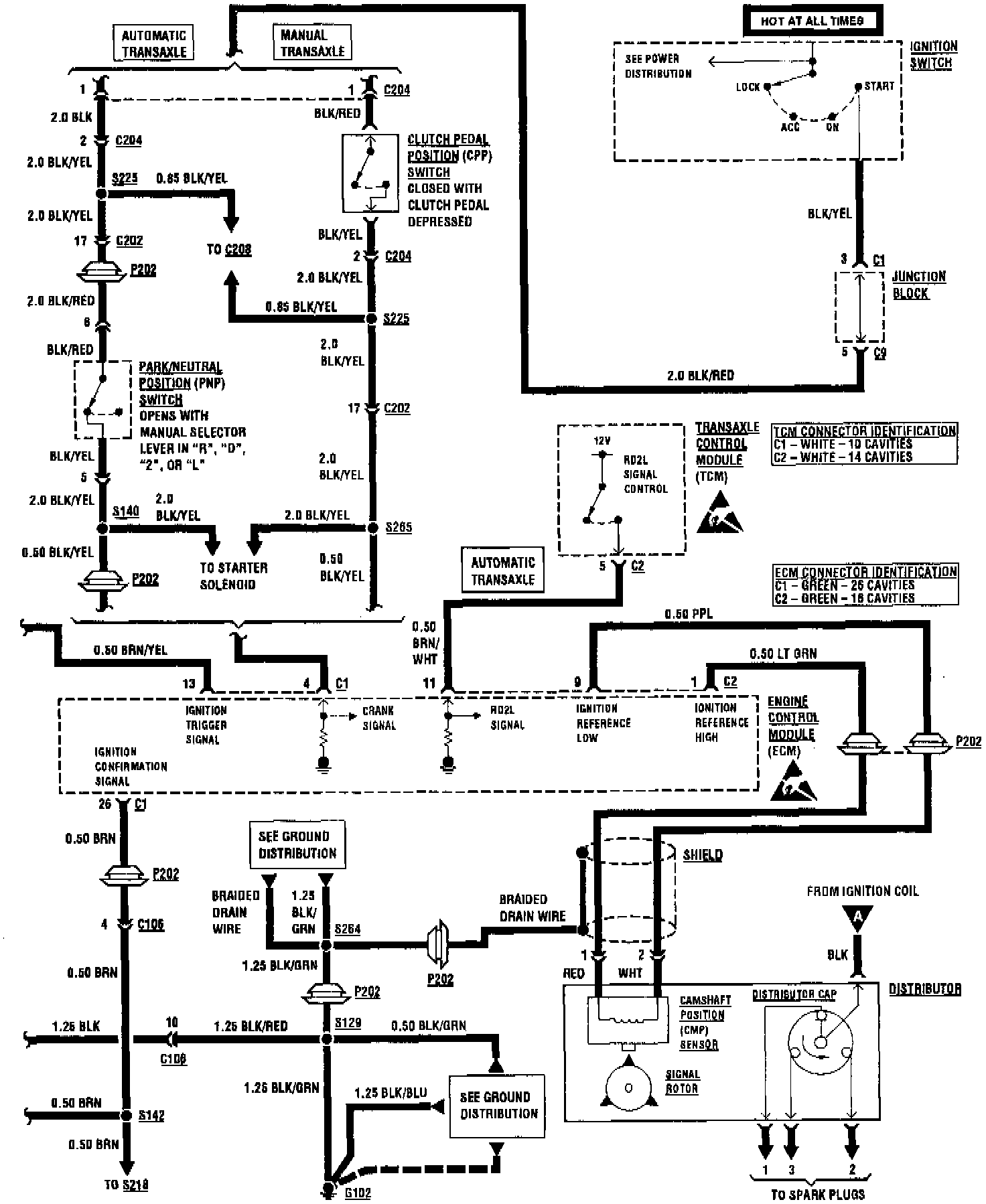

Engine Controls: Ignition - Part 2 Of 2:
