Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> With Standard Emissions >> Connector C2

Connector C2

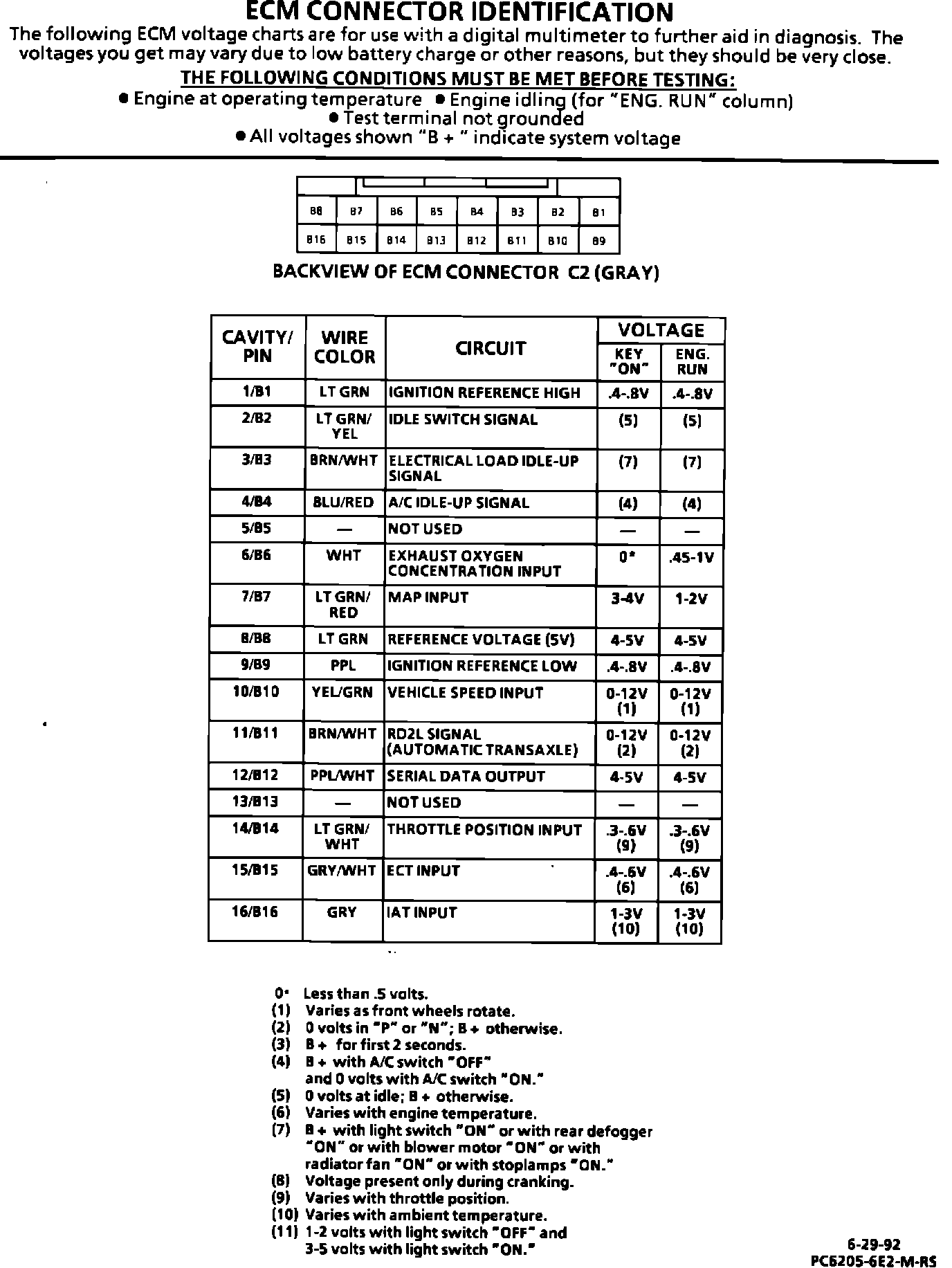

ECM Connector With Standard Emissions:
