Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview

Initial Inspection and Diagnostic Overview

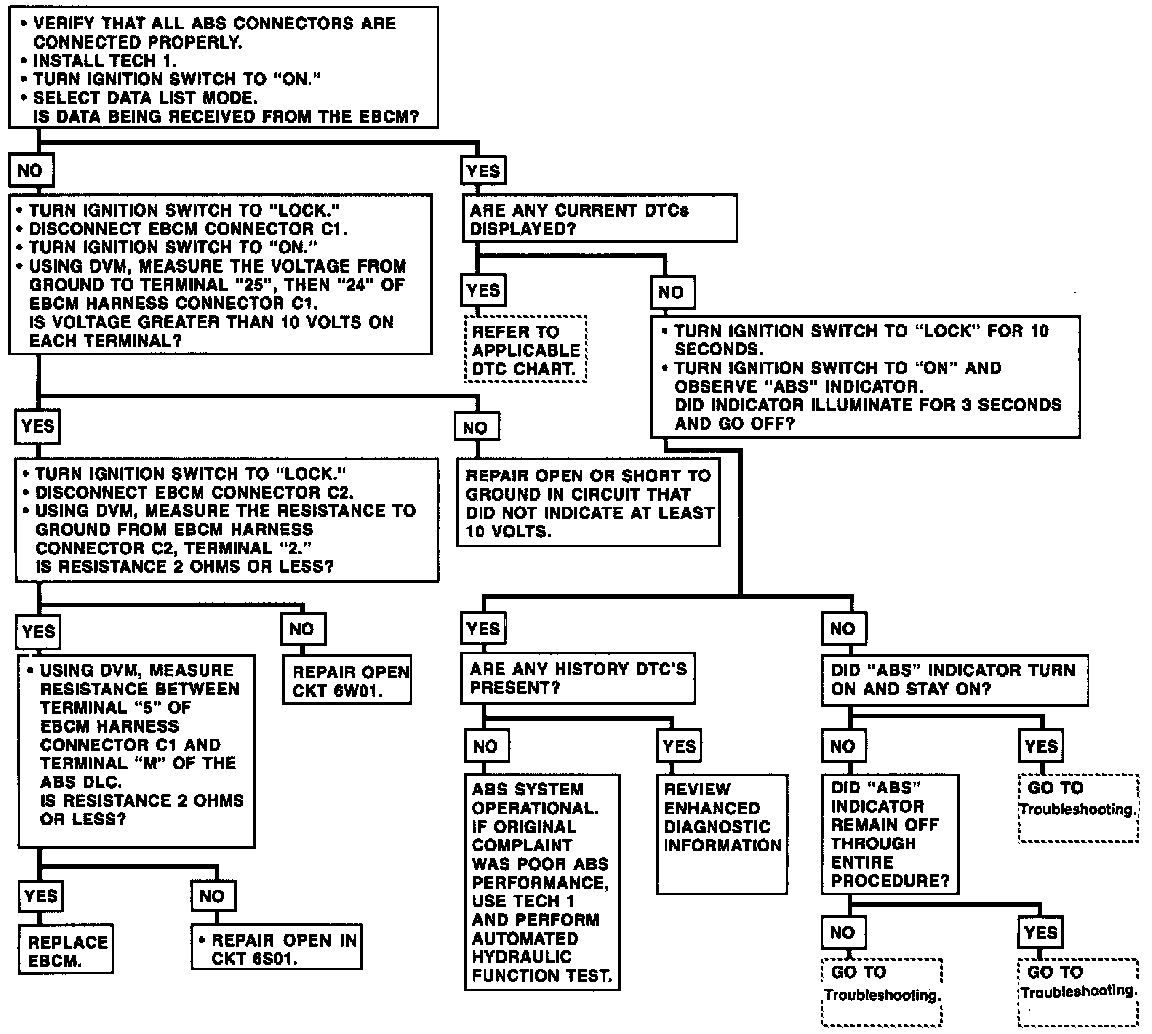

Fig. 463 Diagnostic Circuit Check:
