Home >> Geo >> 1994 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams

Electrical Diagrams

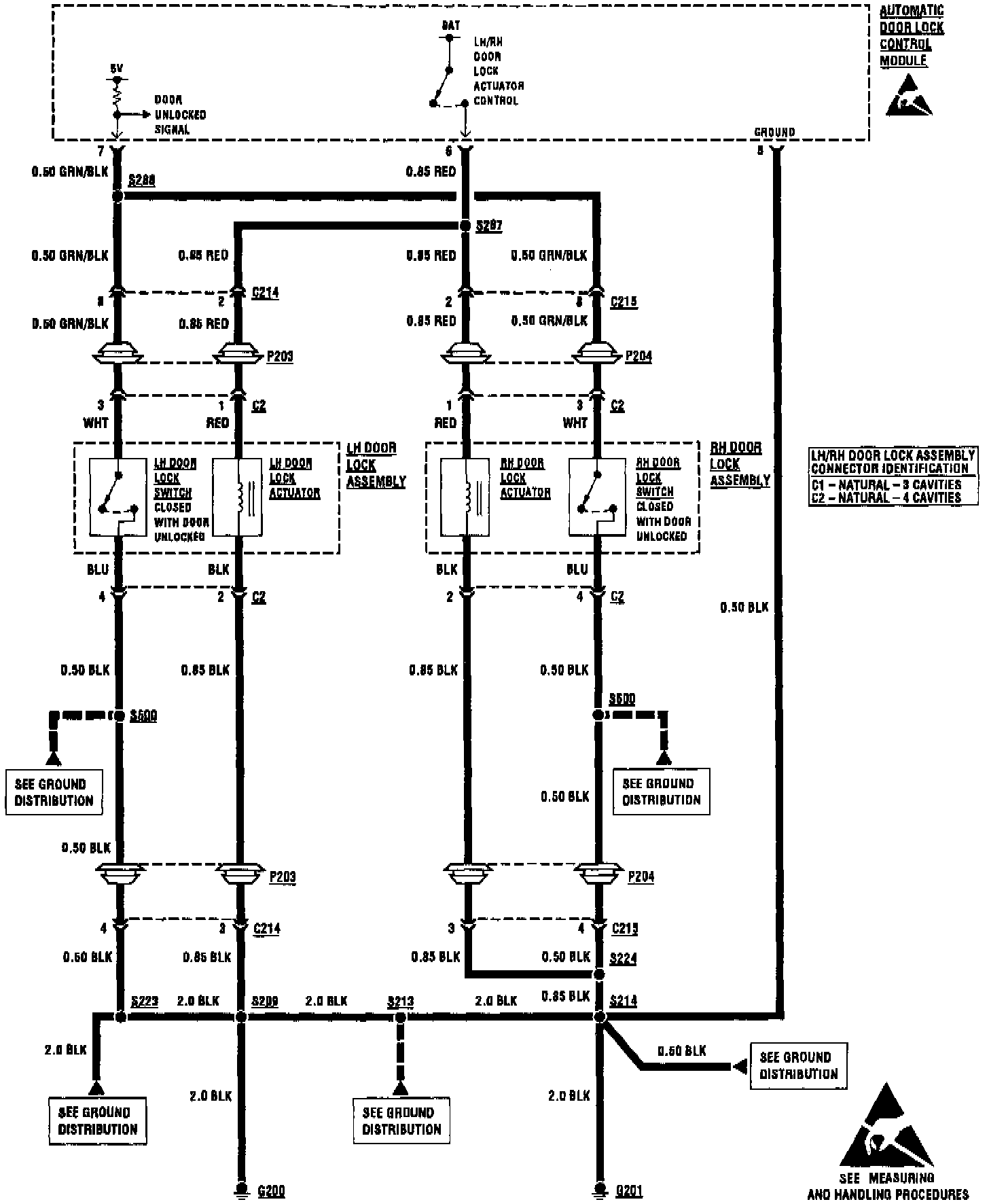

Automatic Door Locks - Part 1 Of 2:

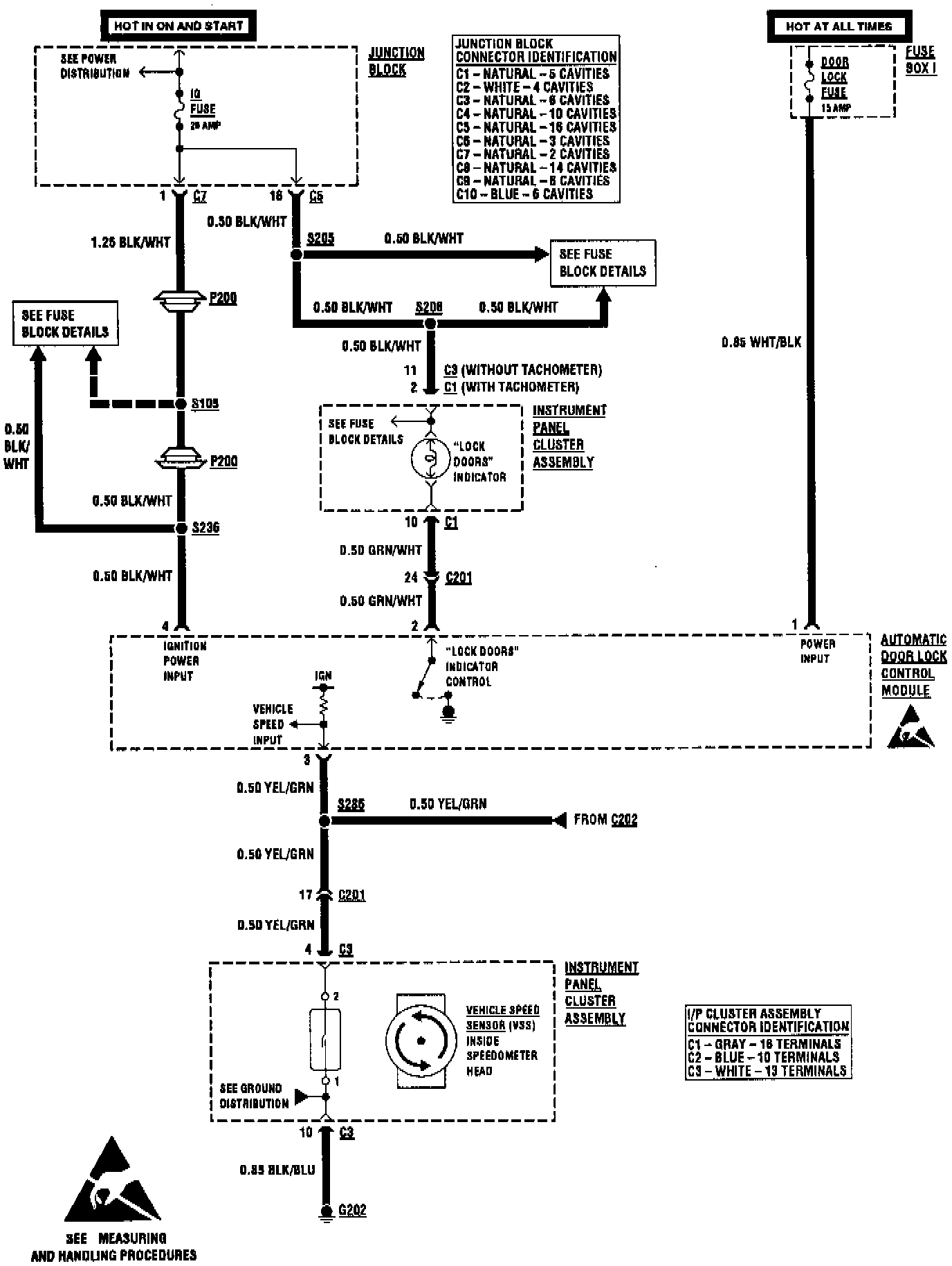

Automatic Door Locks - Part 1 Of 2:
