Transaxle Control System

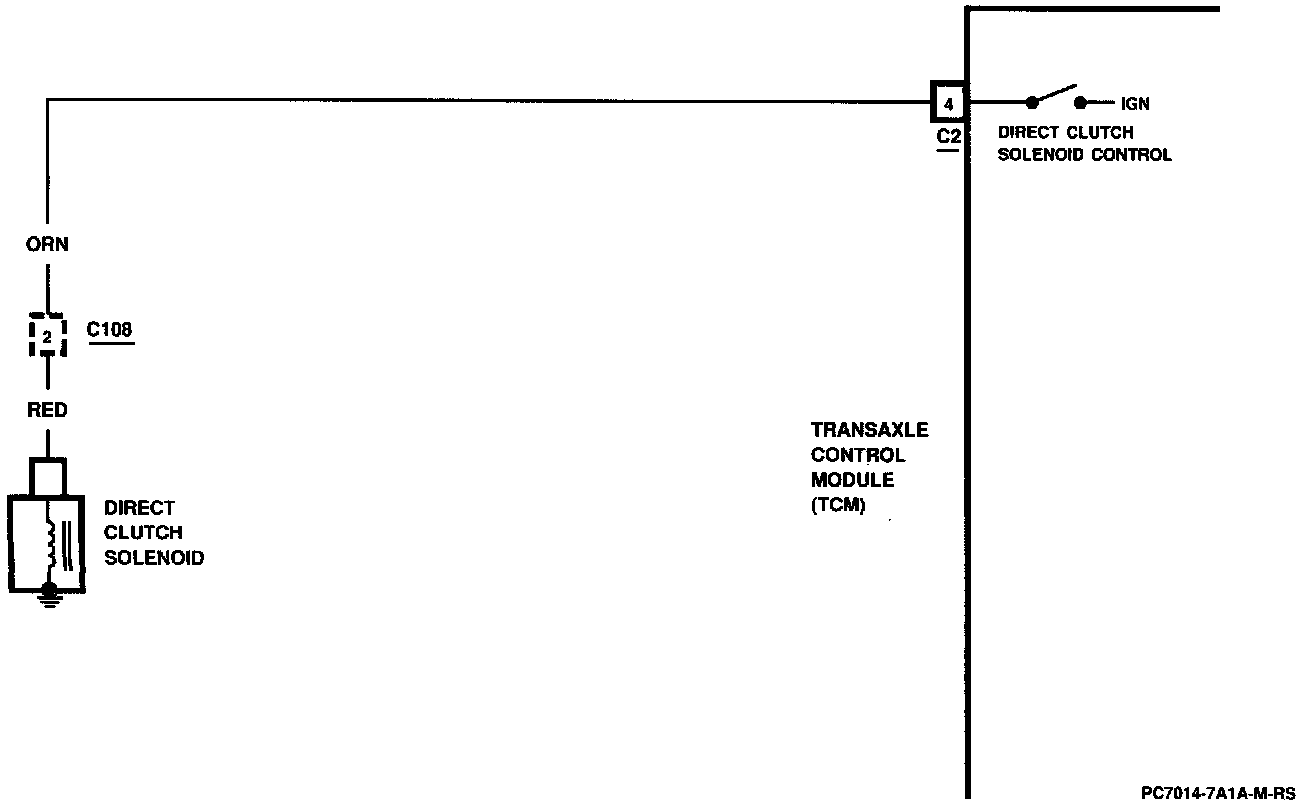

CIRCUIT DESCRIPTION
The direct clutch solenoid is energized and de-energized by the Transmission Control Module (TCM) in response to varying transaxle shift demands. With the direct clutch solenoid de-energized, line pressure is applied to the 2-3 shift valve. With line pressure applied, the 2-3 shift valve operates, and the transaxle shifts from second to third gear. When the TCM energizes the direct clutch solenoid, line pressure is relieved, and the 2-3 shift valve does not operate.

DTC 21 will set if the following condition is met:
^ TCM does not see any voltage drop across direct clutch solenoid control circuit during attempted solenoid energizing.

TEST DESCRIPTION

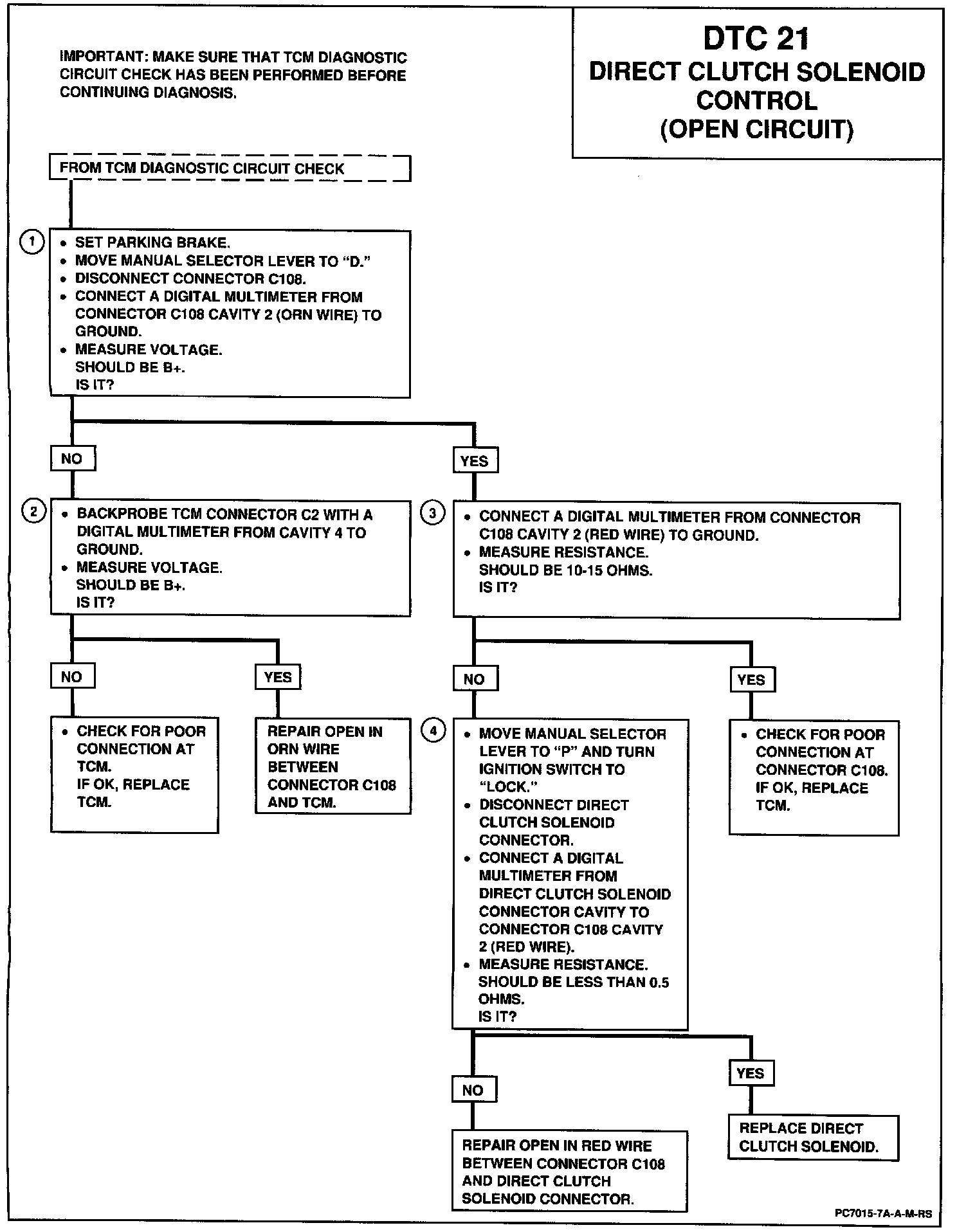

Number(s) below refer to circled number(s) on the diagnostic chart.
1. Places transaxle in a state where direct clutch solenoid should be energized and checks for battery voltage from TCM to connector C108.
2. Checks for an open in ORN wire and for a faulty TCM.
3. Checks for proper resistance of direct clutch solenoid coil and RED wire from connector C108 to solenoid.
4. Checks for an open in RED wire between connector C108 and direct clutch solenoid and for a faulty solenoid.

DIAGNOSTIC AIDS
An intermittent may be caused by a poor connection, rubbed through wire insulation or a wire broken inside the insulation. Inspect the TCM harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals and for poor terminal-to-wire connections.
