A055

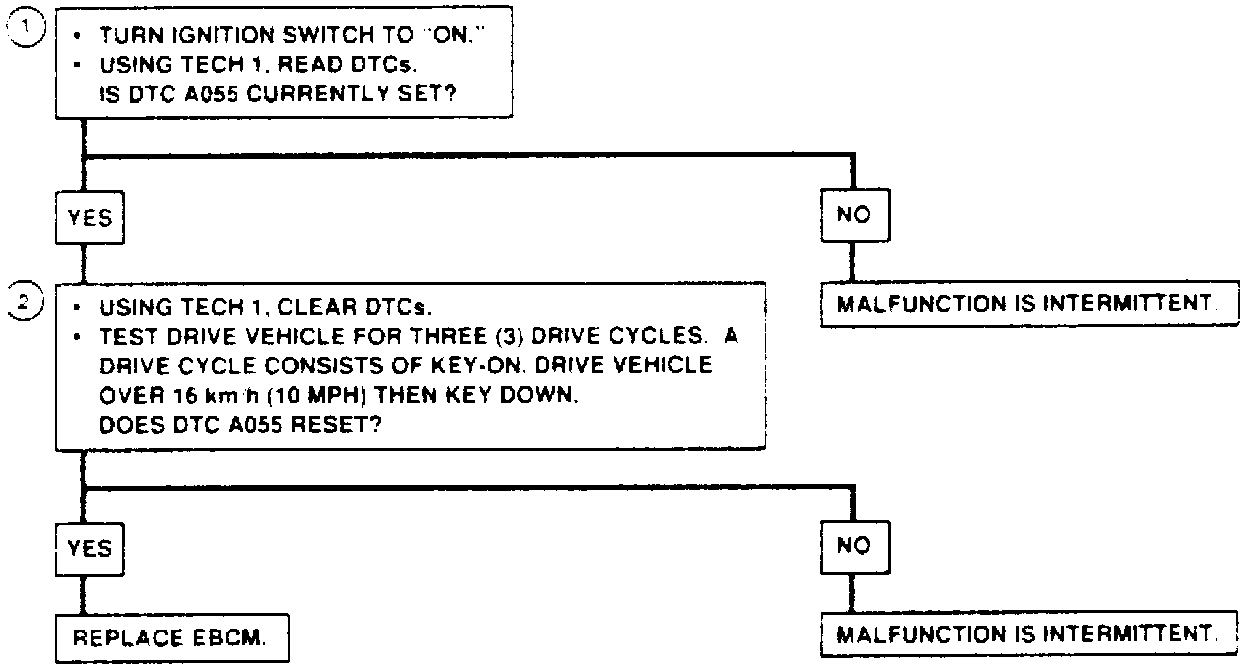

Fig. 495 Code 55: EBCM Fault:

Circuit Description:
This DTC identifies a malfunction detected by the MDI custom IC. It also insures the cause of the malfunction is not a result of a problem with the enable relay under a DTC AO55 malfunction.

Action Taken:
A DTC AO55 is stored, ABS is disabled and the "ABS" indicator is turned on or will flash.

Test Description:
Number(s) below refer to circled number(s) on the diagnostic chart.
1. This checks to see if the malfunction is still present.
2. This step checks to see if the malfunction is intermittent.

Diagnostic Aids:
The frequency of the malfunction can be checked by using the enhanced diagnostic function of the TECH 1.
