Home >> Geo >> 1993 >> Storm L4-1800cc 1.8L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Locations

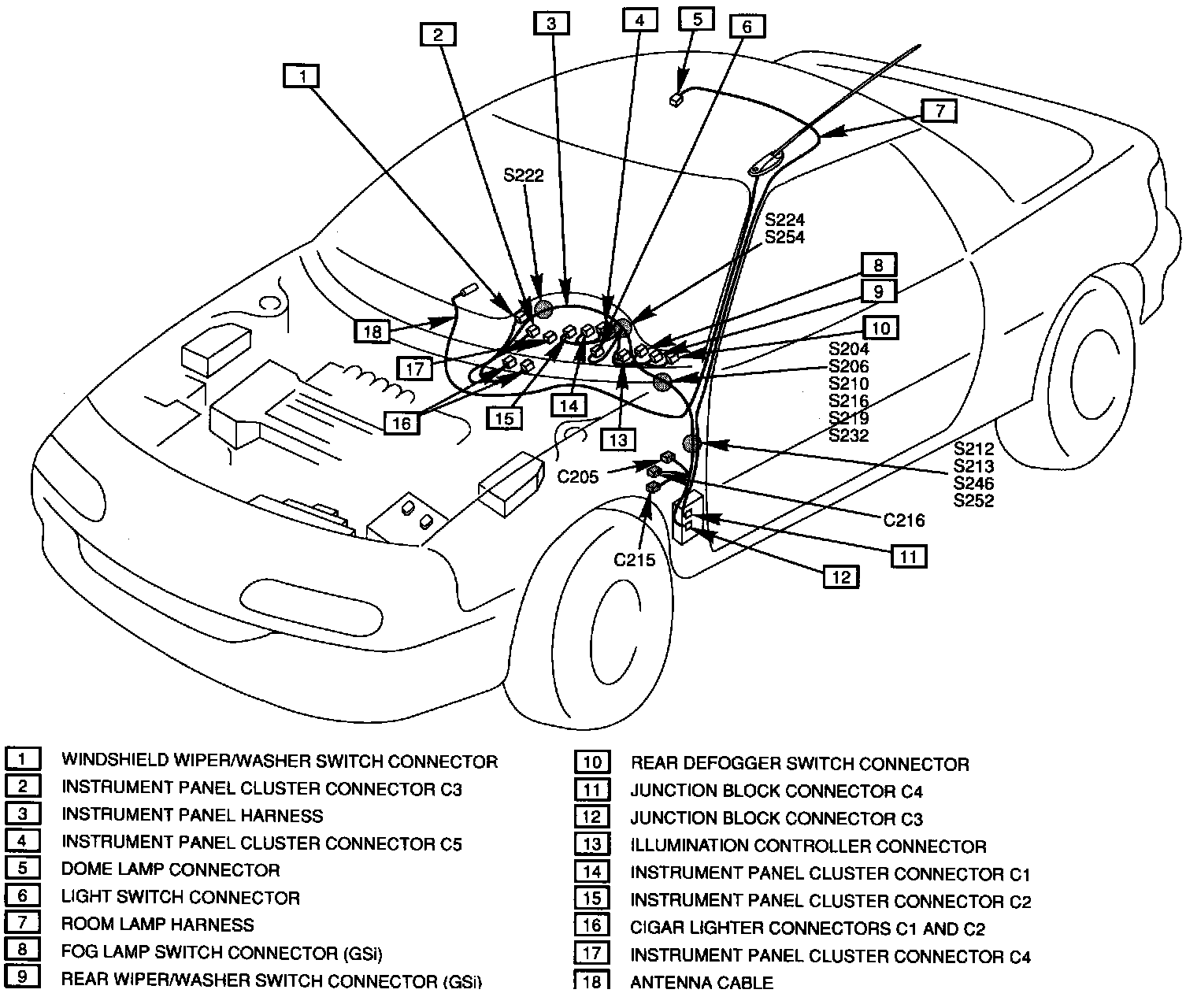

Multiple Junction Connector: Locations

Associated With Or Around I/P Harness:
