Home >> Geo >> 1993 >> Storm L4-1800cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

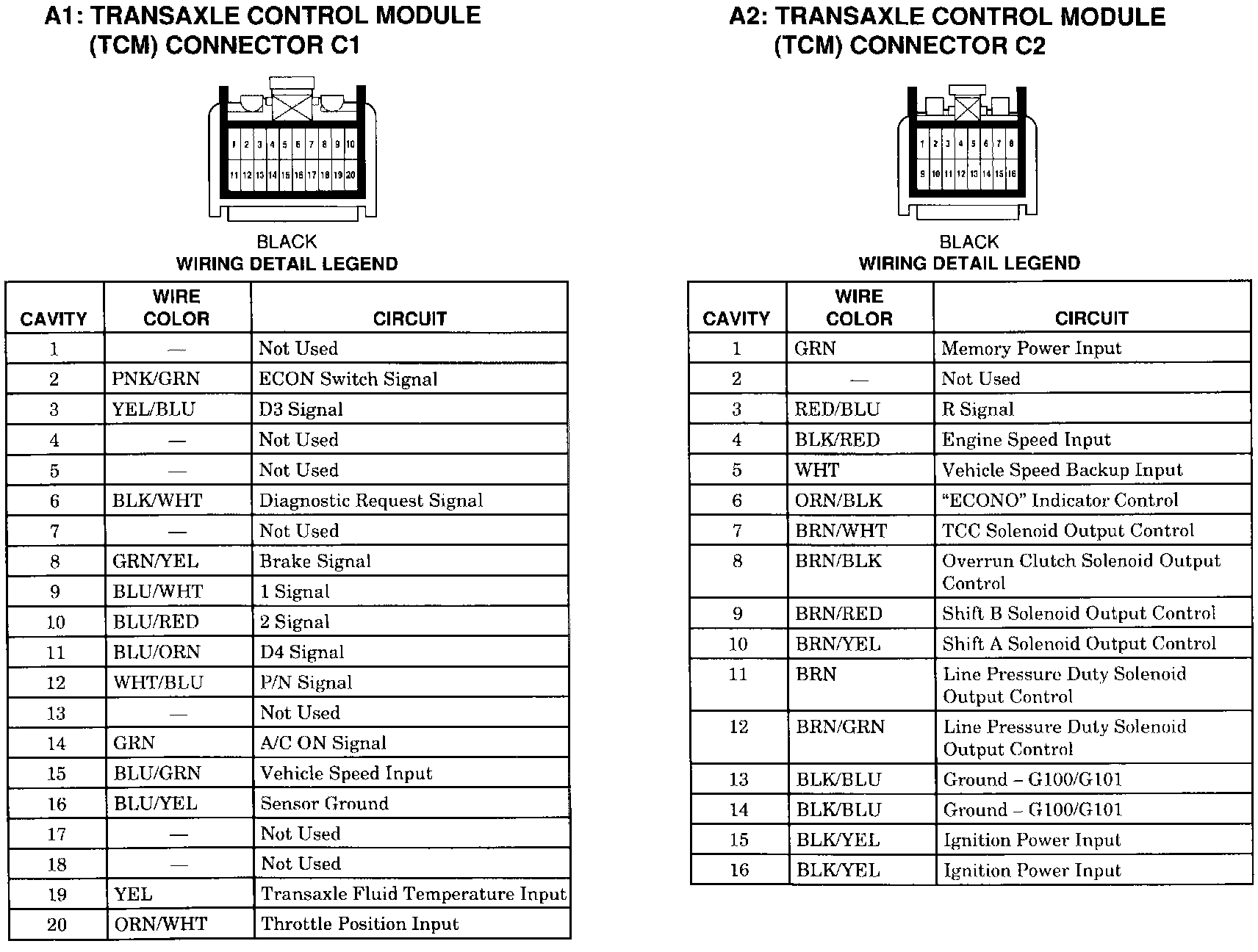

Auto Trans Control Connectors:
