Wiper Switch: Testing and Inspection

Refer to DIAGNOSTIC CHARTS, for complete system diagnosis.

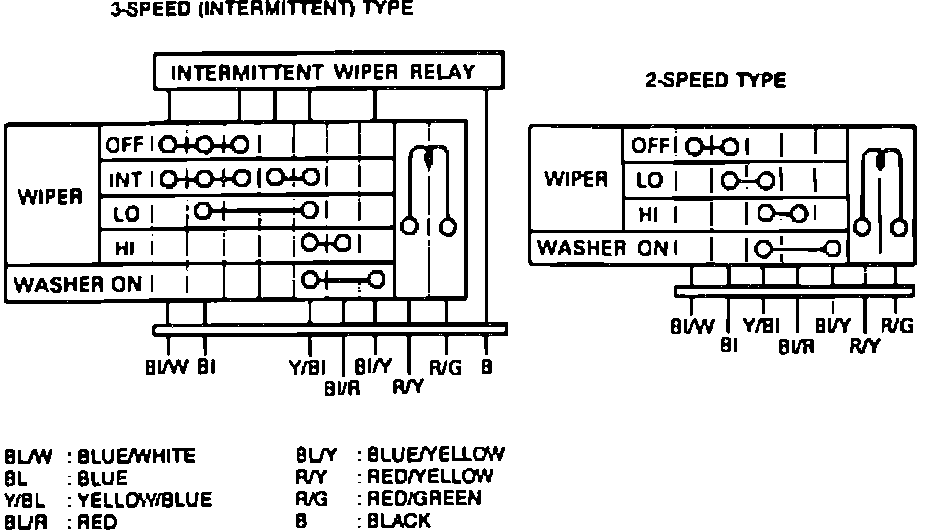

Fig. 30 Wiper Switch Continuity Chart:

Inspect wiper and washer switch for continuity, refer to Fig. 30, for switch connections.
