Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Rear
>>
Chart 3 Wiper Inoperative
Chart 3 Wiper Inoperative

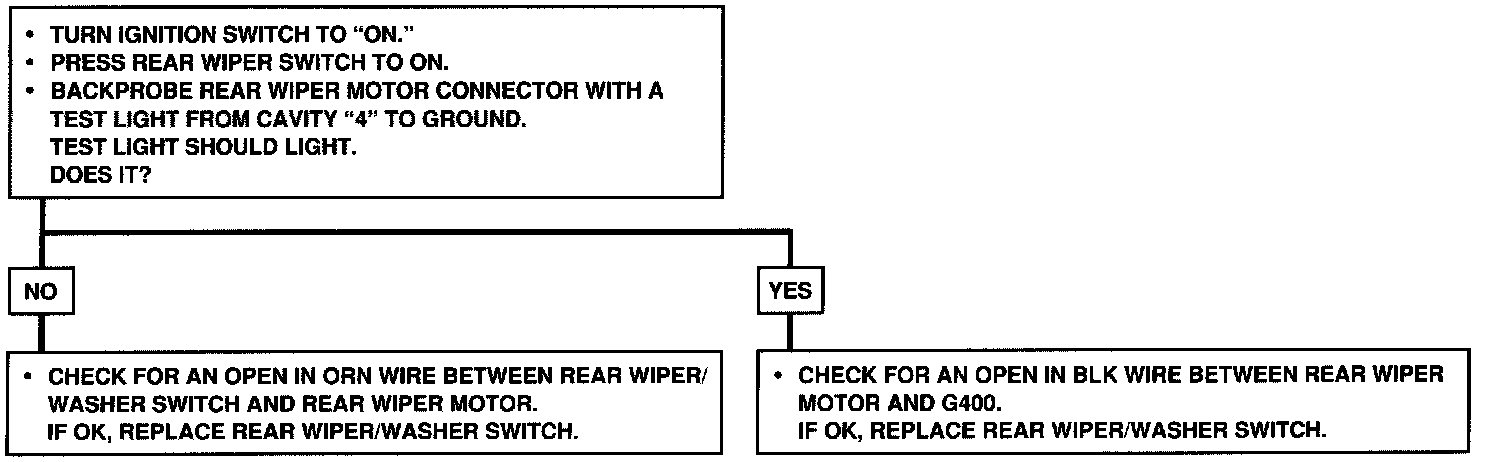

Chart 3: Rear Wiper/Washer: Rear Wiper Motor Inoperative:
