Chart 2 Washer Inoperative
Chart 2 Washer Inoperative

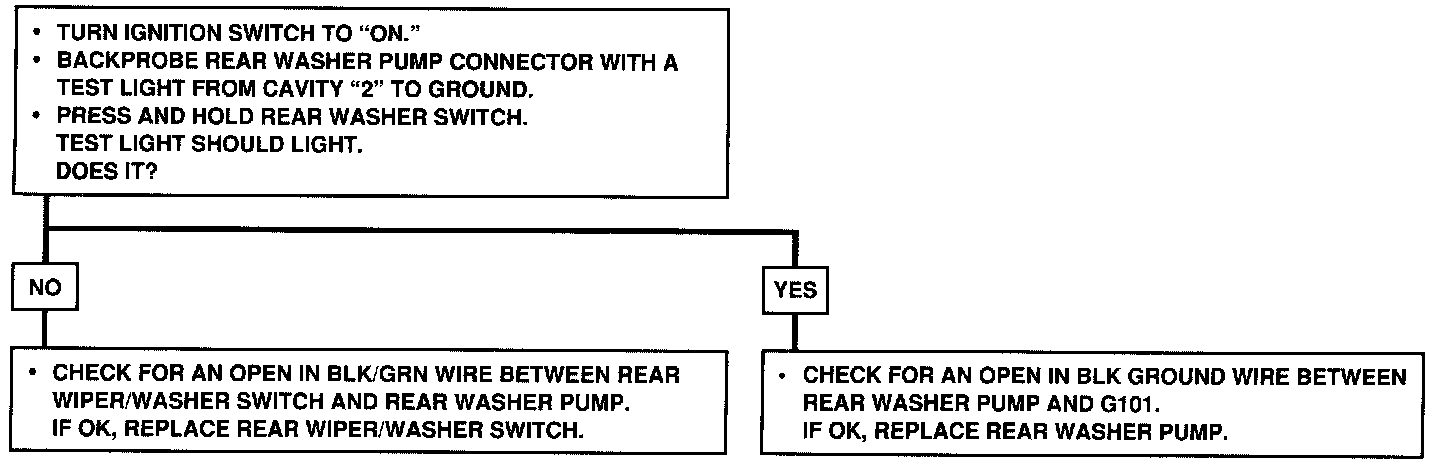

Chart 2: Rear Wiper/Washer: Rear Washer Pump Inoperative:
