Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>
Rear
>>
Chart 1 Wiper & Washer Inoperative
Chart 1 Wiper & Washer Inoperative

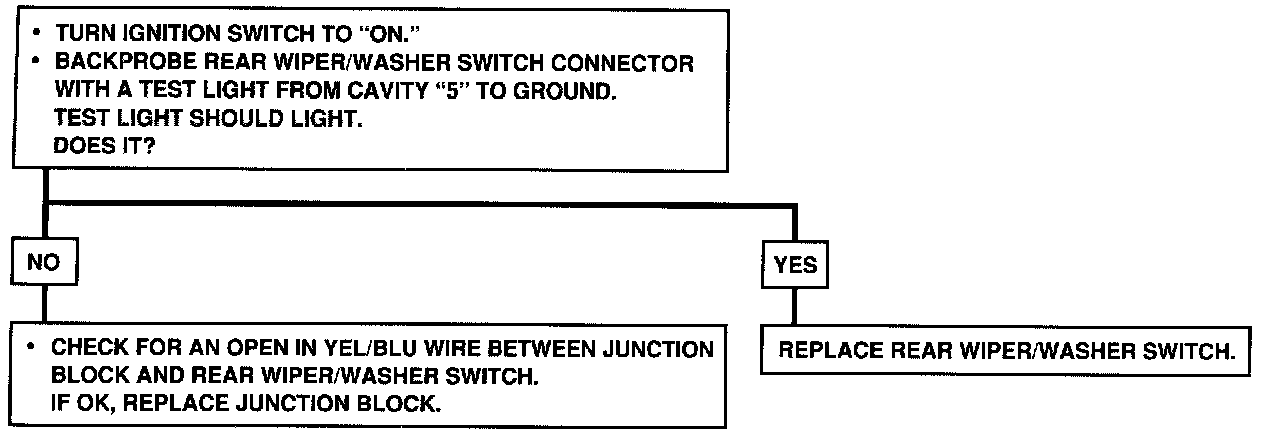

Chart 1: Rear Wiper/Washer: Both Inoperative:
