Front
>>
With Pulse
>>
Chart 3 Washer Pump Works, Wipers Don't Finish Sweep
Chart 3 Washer Pump Works, Wipers Don't Finish Sweep

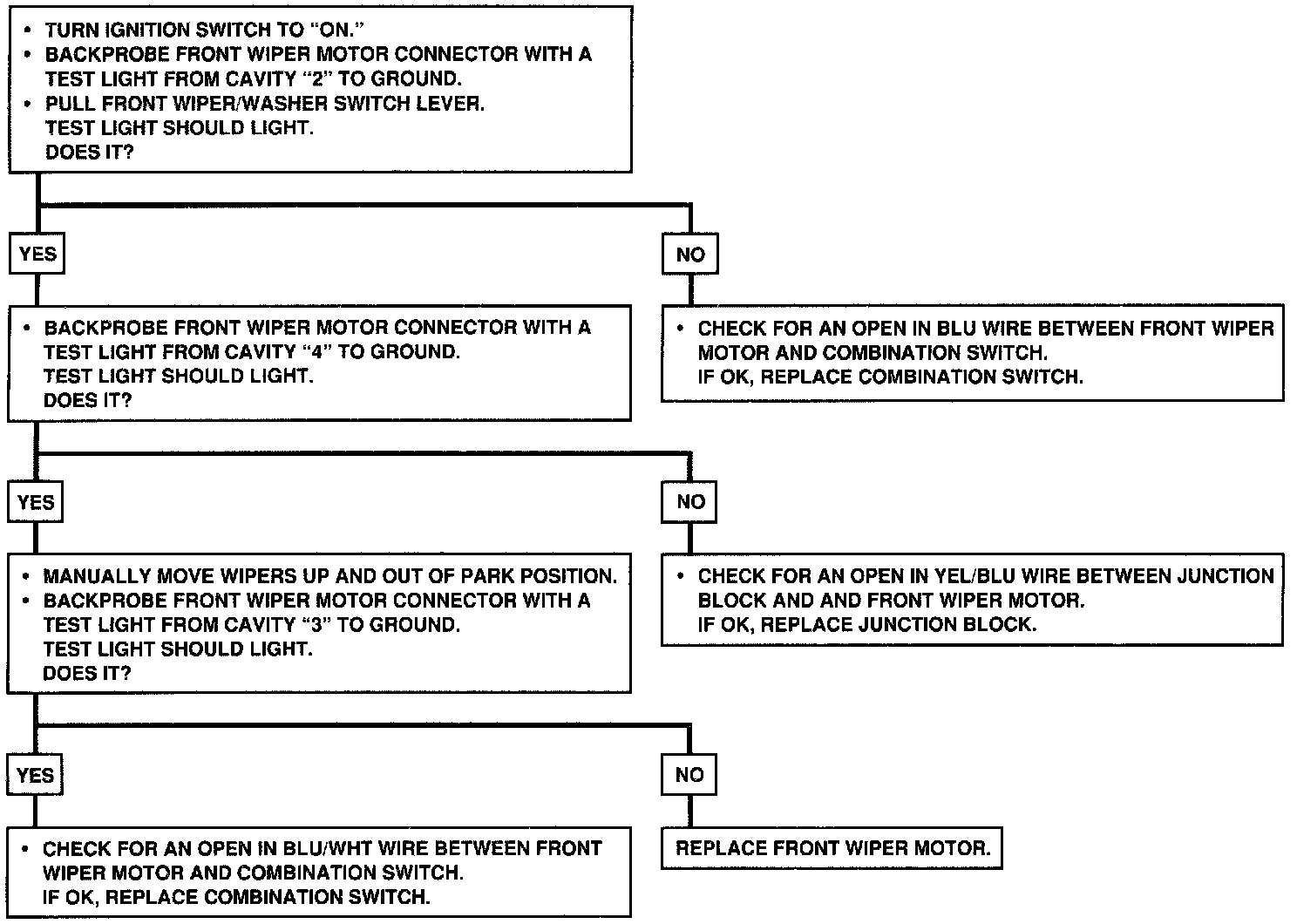

Chart 3: Wiper/Washer Pulse, Front Washer Pump Operates, But Wipers Don't Complete Full Sweep:
