Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Can't Move Shifter With Key on & Brake Pedal Depressed
Can't Move Shifter With Key on & Brake Pedal Depressed

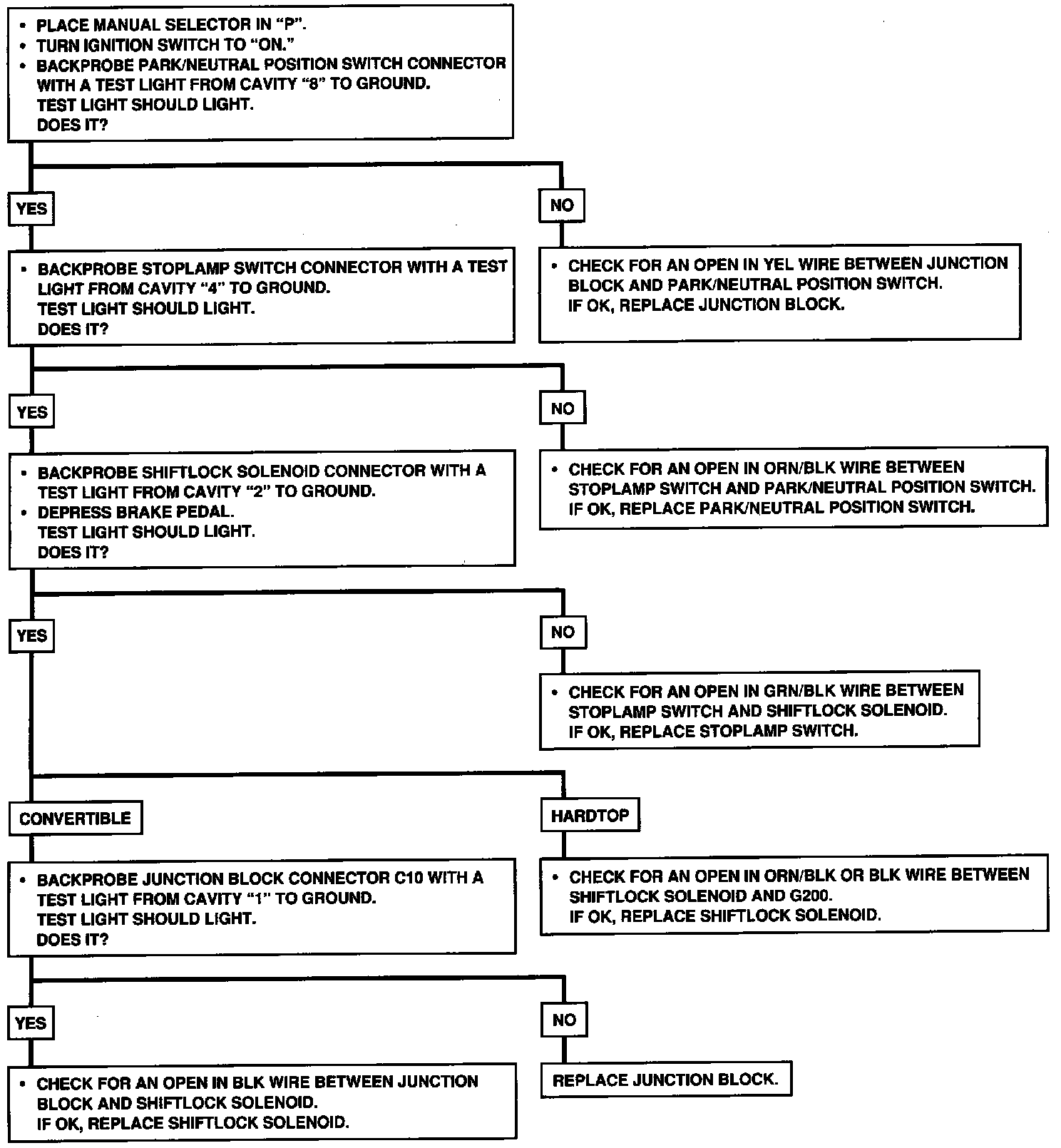

Chart 1: Brake Transaxle Shift Interlock, Selector Lever Cannot Be Moved From "P" With Ing. ON, And Brake Pedal Depressed:
