Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> CAN Move Shifter From P With Brake Pedal Released

CAN Move Shifter From P With Brake Pedal Released

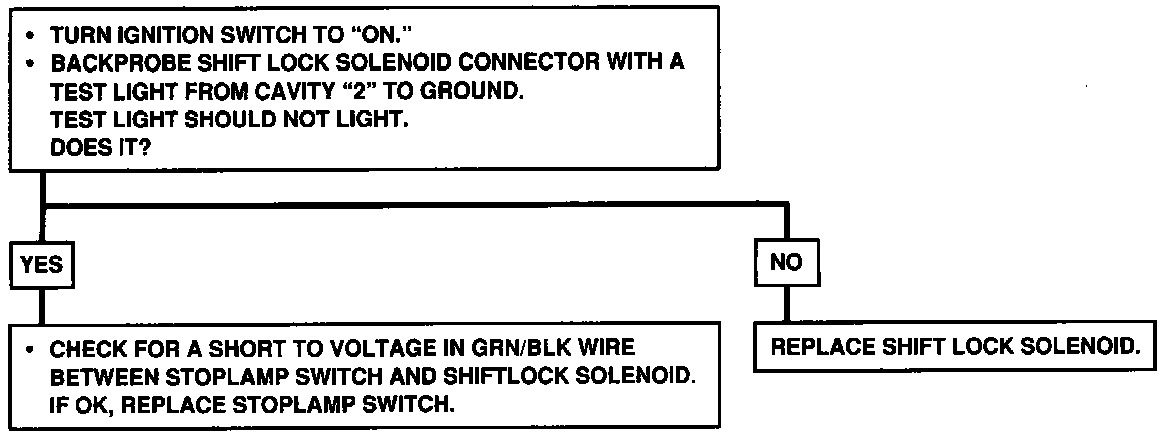

Chart 2: Brake Transaxle Shift Interlock, Selector Lever Cannot Be Moved From "P" With Brake Pedal Released:
