Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Does Not Crank, Solenoid Does Not Click - Manual Transmission

Engine Does Not Crank, Solenoid Does Not Click - Manual Transmission

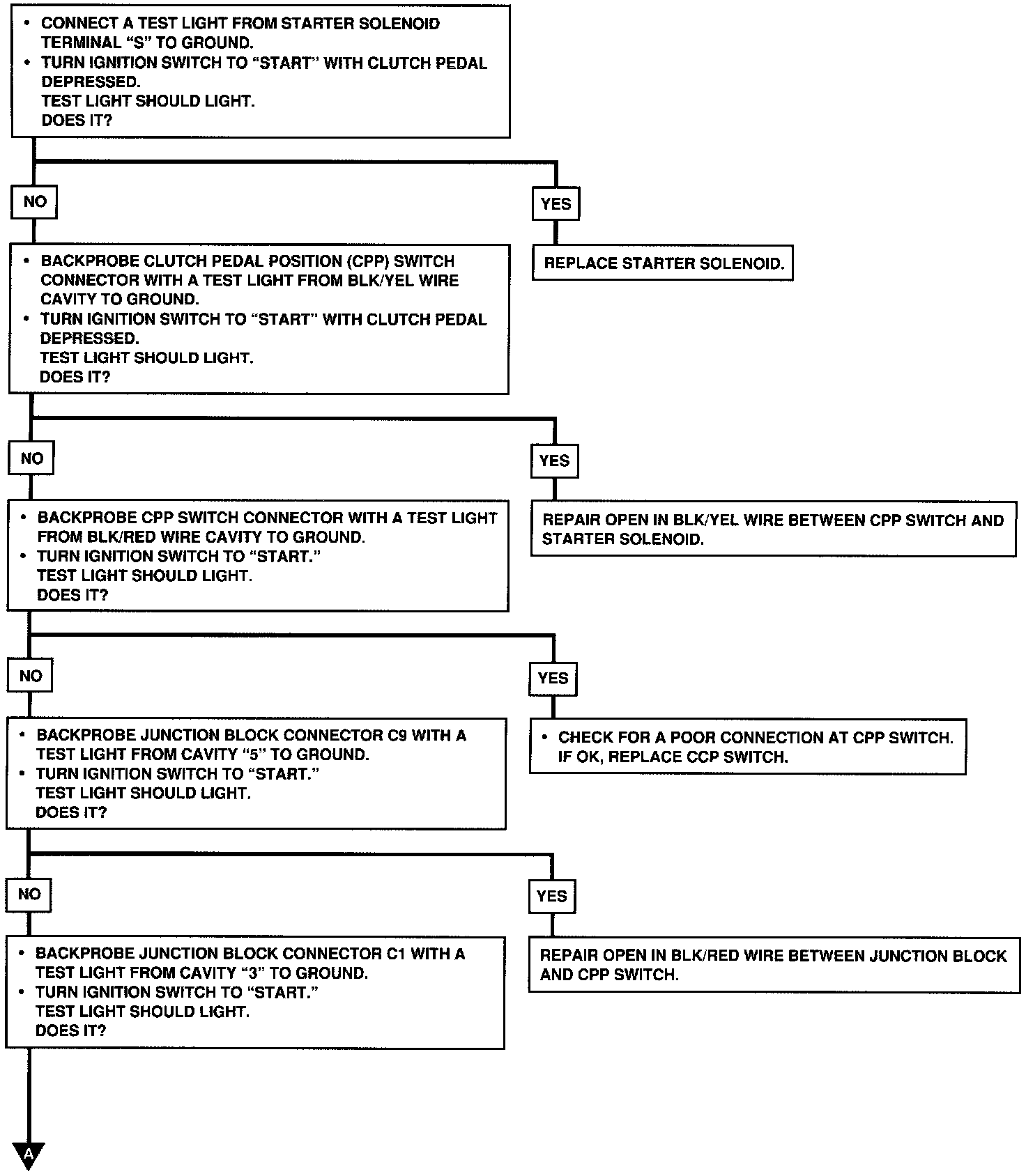

Starter & Charging: Chart 2 Engine Does Not Start & No Solenoid Click Manual Transaxle:



Starter & Charging: Chart 2 Cont. Engine Does Not Start & No Solenoid Click Manual Transaxle:
