Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Does Not Crank, Solenoid Does Not Click - Automatic Transmission

Engine Does Not Crank, Solenoid Does Not Click - Automatic Transmission

Starter & Charging: Chart 1 Engine Does Not Start & No Solenoid Click - Automatic Transaxle:

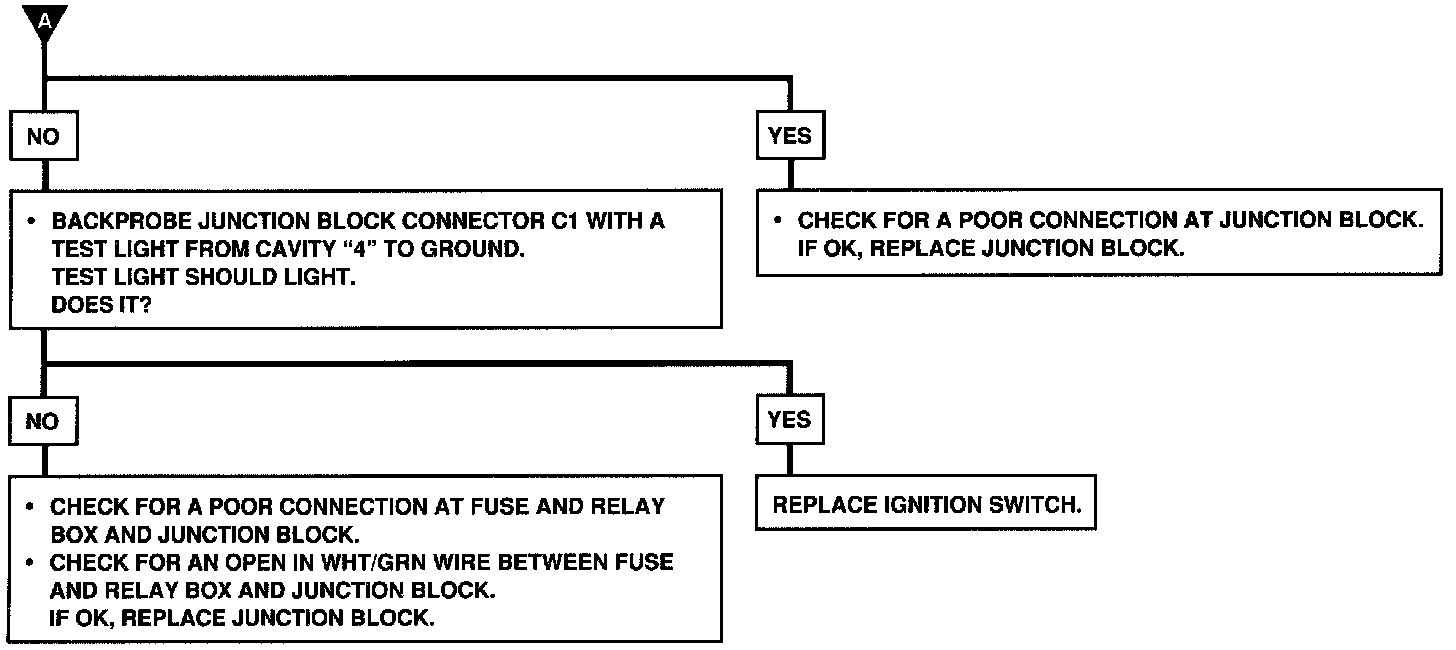

Starter & Charging: Chart 1 Cont. Engine Does Not Start & No Solenoid Click Automatic Transaxle:
