Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> IG, #1

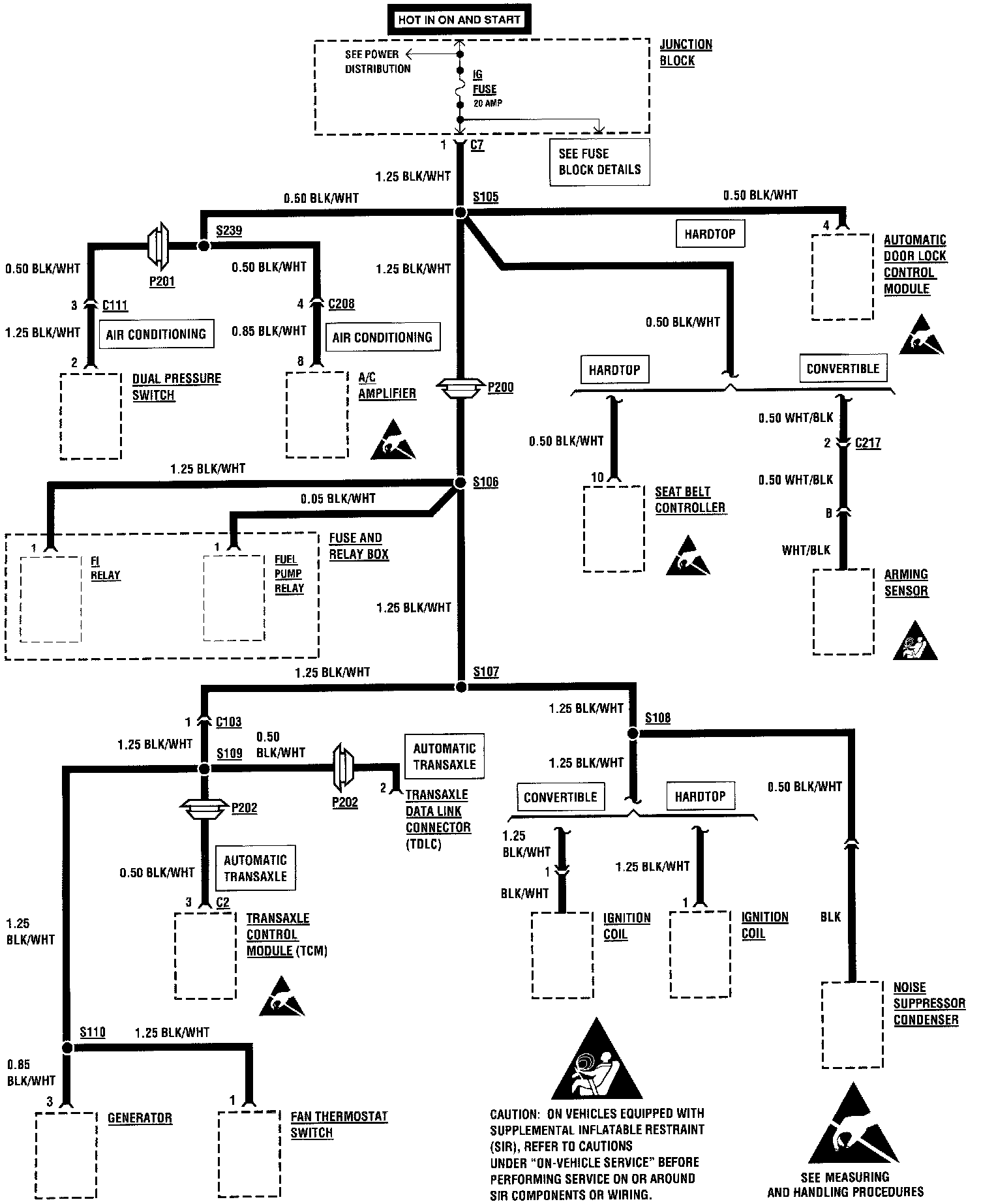

IG, #1

Fuse Block Details: IG Fuse:
