Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Haz, Headlamp & Fog

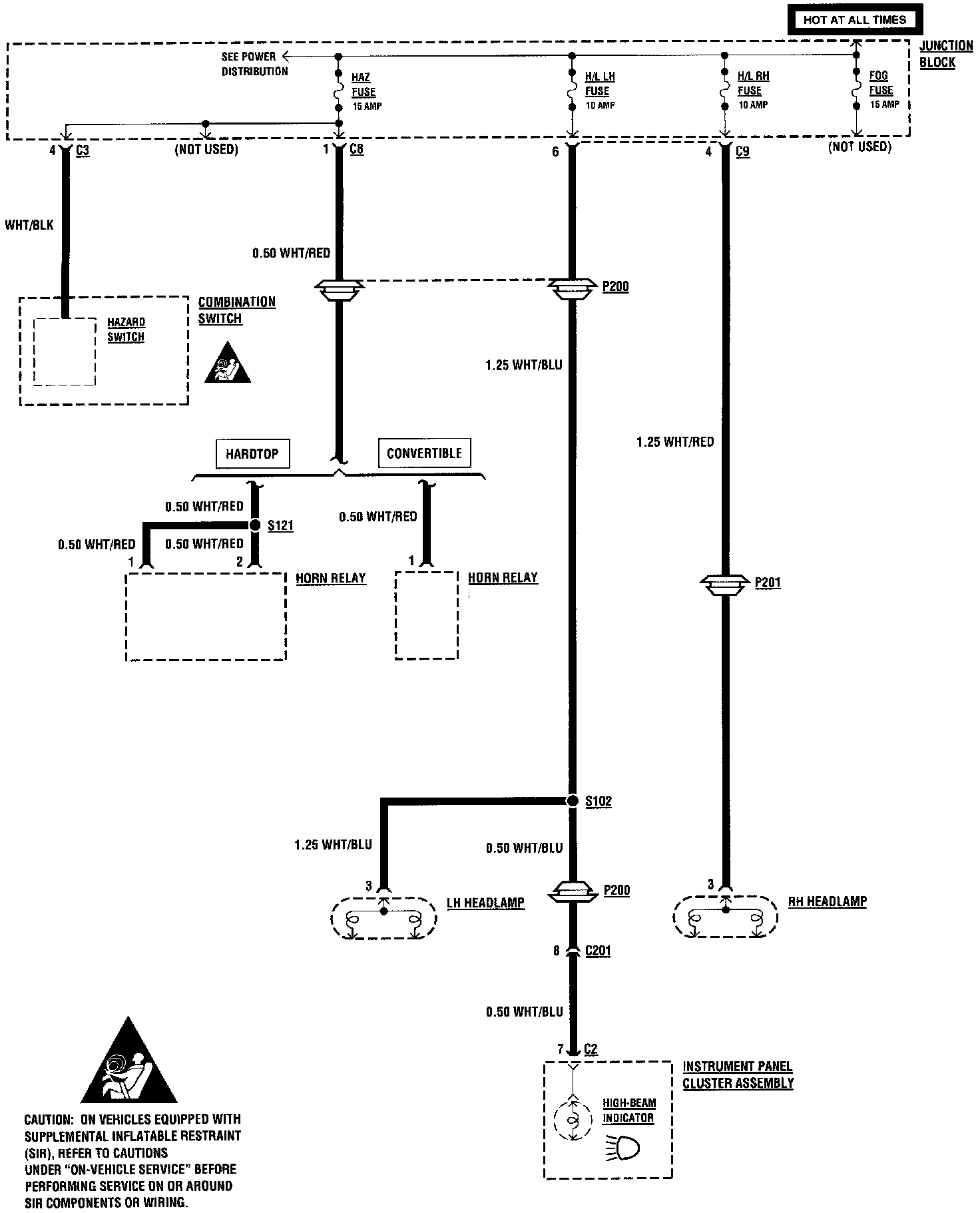

Haz, Headlamp & Fog

Fuse Block Details: Haz., Headlight & Fog Fuse:
