Chart 8 LH Belt Indicator Doesn't Light With LH Belt Unfastened
Chart 8 LH Belt Indicator Doesn't Light With LH Belt Unfastened

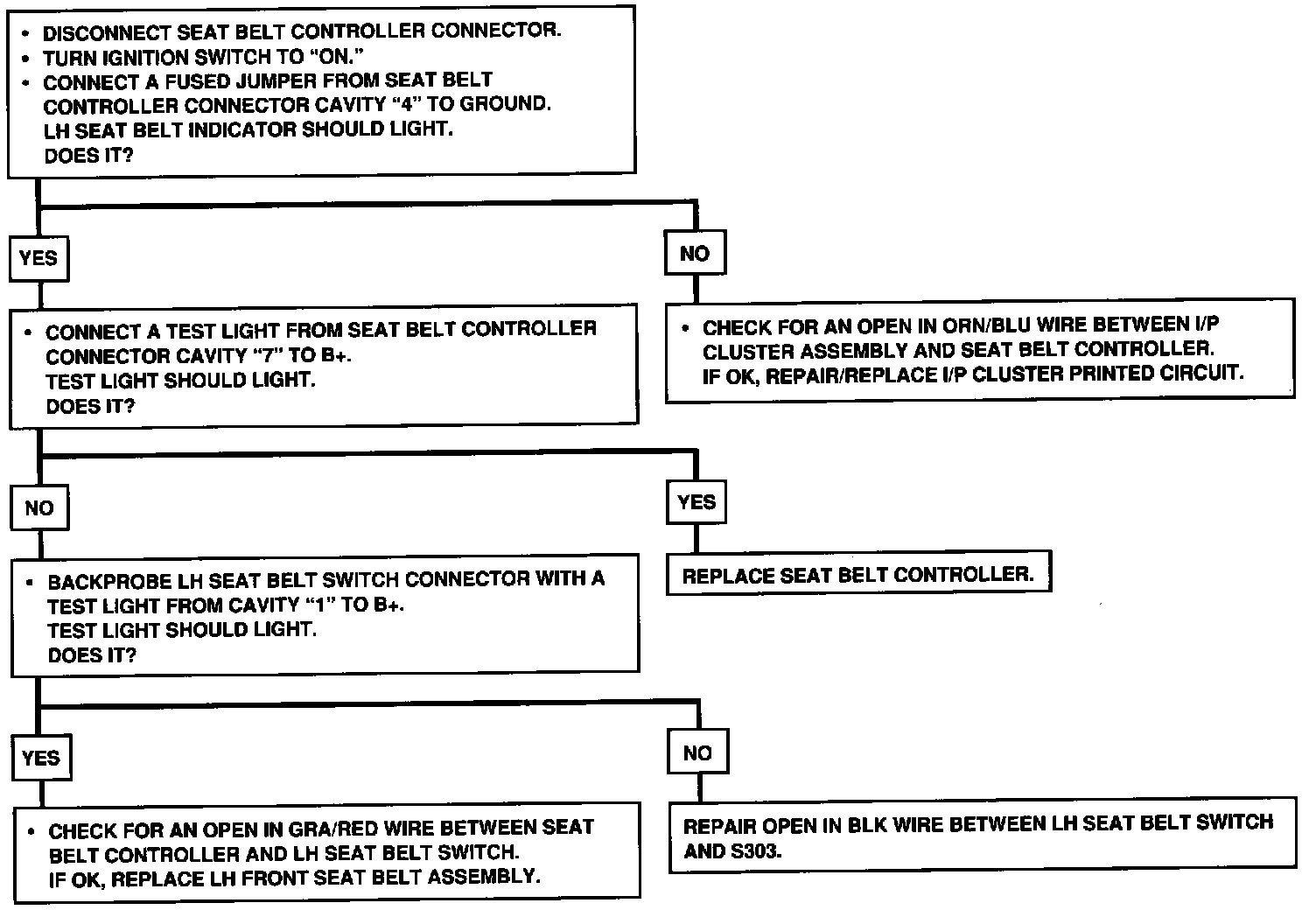

Chart 8: Automatic Seat Belts, Hardtop, LH Seat Belt Indicator Does Not Light With LH Seat Belt Unfastened:
