Chart 13 Door Open Indicator Remains Off With Front Door Open
Chart 13 Door Open Indicator Remains Off With Front Door Open

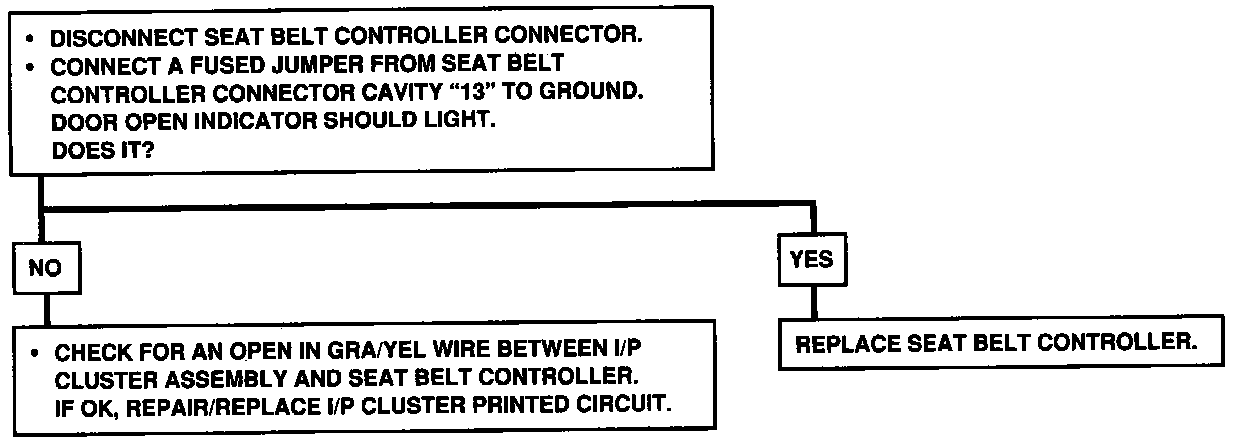

Chart 13: Automatic Seat Belts, Hardtop, Door Open Indicator Does Not Flash With LH & RH Doors Open:
