Chart 12 Door Open Indicator Remains Lit With Doors Closed
Chart 12 Door Open Indicator Remains Lit With Doors Closed

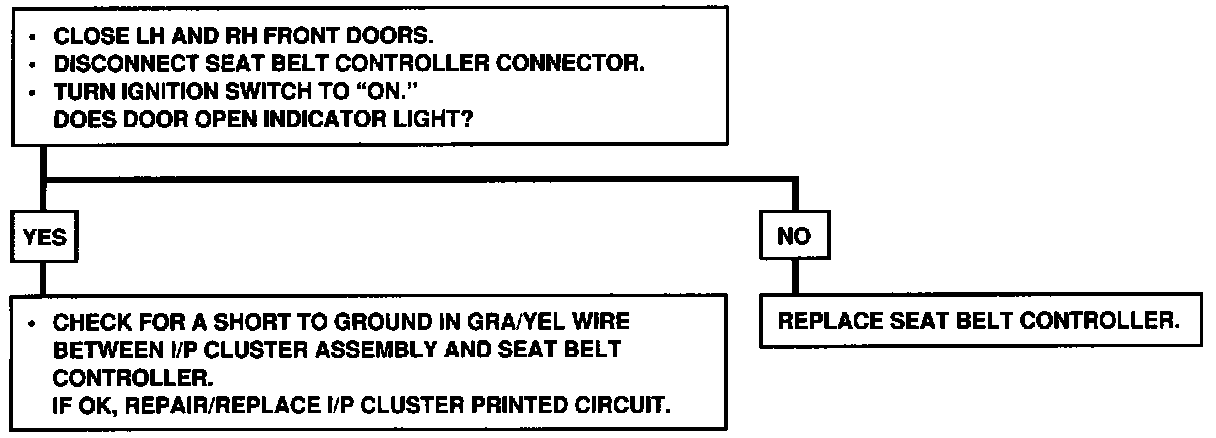

Chart 12: Automatic Seat Belts, Hardtop, Door Open Indicator Remains Lite With LH & RH Doors Closed:
