FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Charts
>>
Chart 11 Belt Indicator Remains Lit With IG Switch In "On"
Chart 11 Belt Indicator Remains Lit With IG Switch In "On"

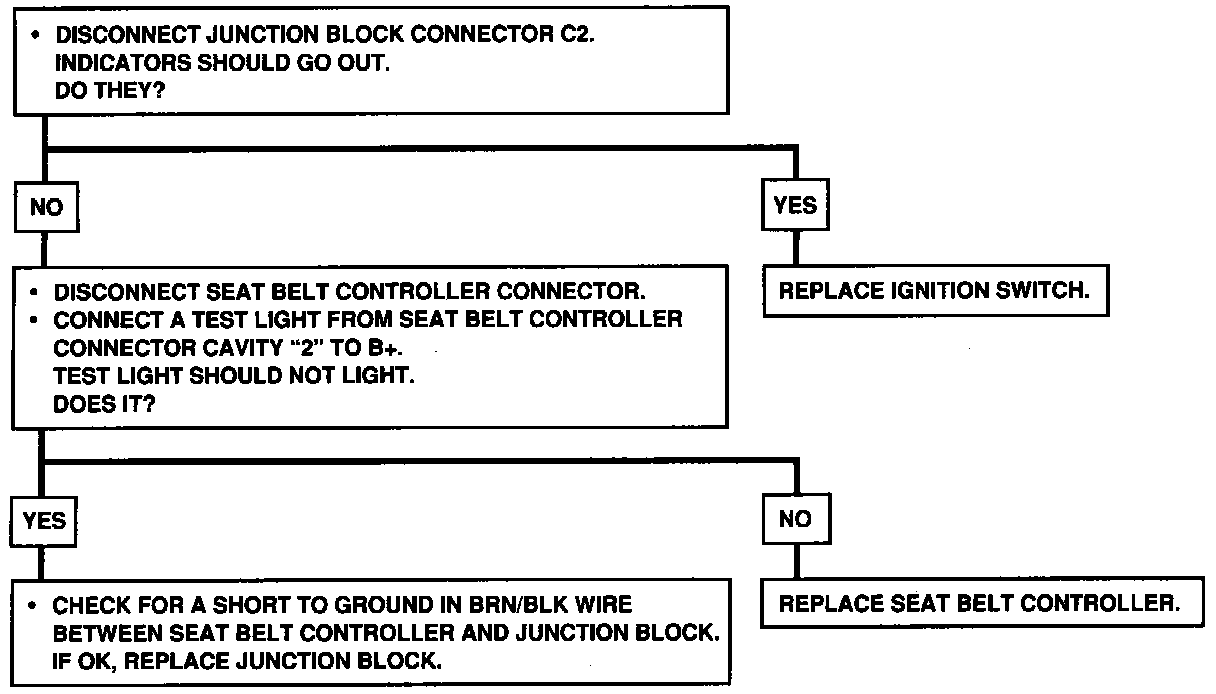

Chart 11: Automatic Seat Belts, Hardtop, Seat Belt, Brake & Door Open Indicator Remain Lite With Ing. Switch In "On":
