Chart 10 Belt Indicator Doesn't Lite With Switch In Bulb Test
Chart 10 Belt Indicator Doesn't Lite With Switch In Bulb Test

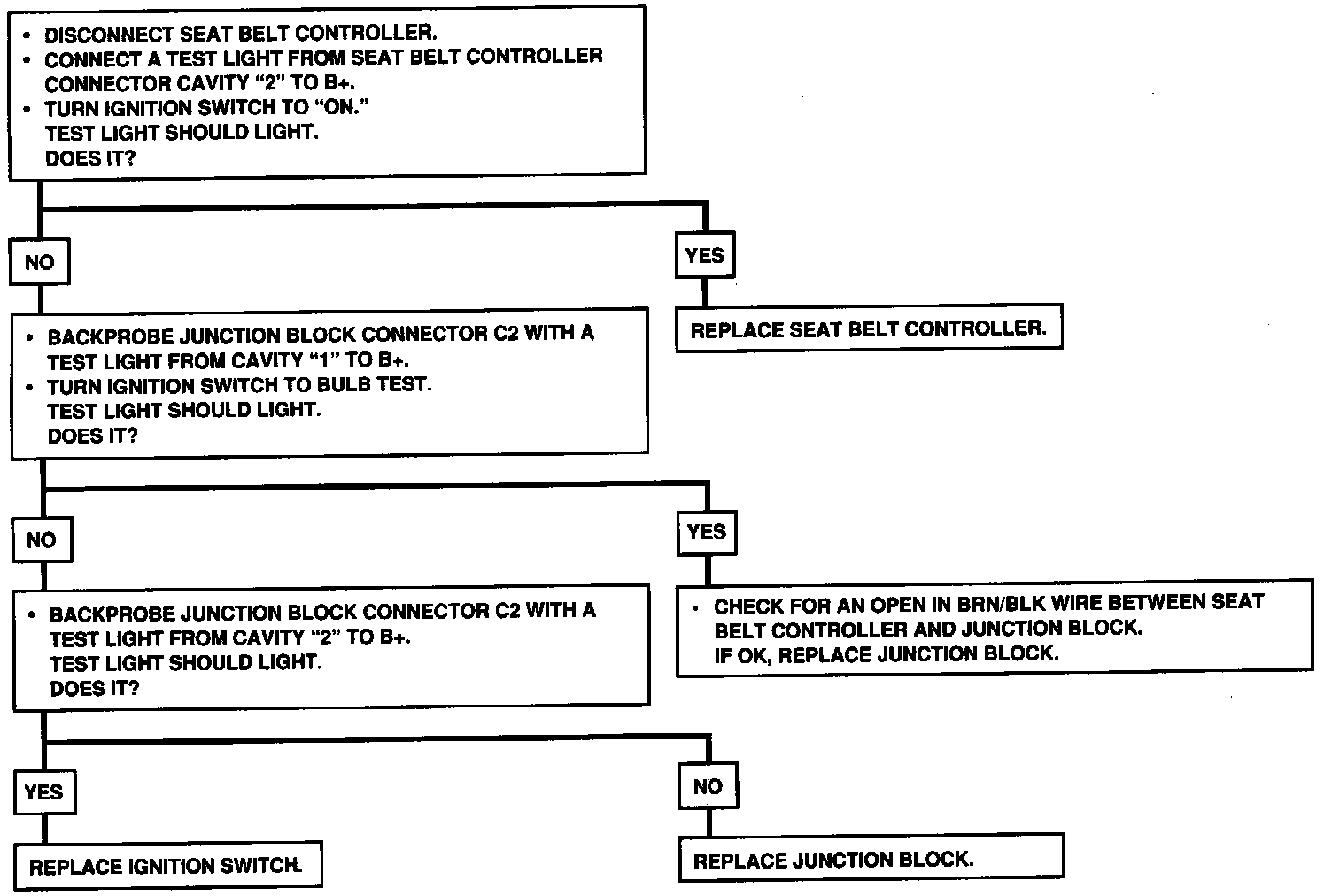

Chart 10: Automatic Seat Belts, Hardtop, Seat Belt, Brake & Door Open Indicator Don't Light With Ing. Switch In Bulb Test:
