Electrical Diagrams

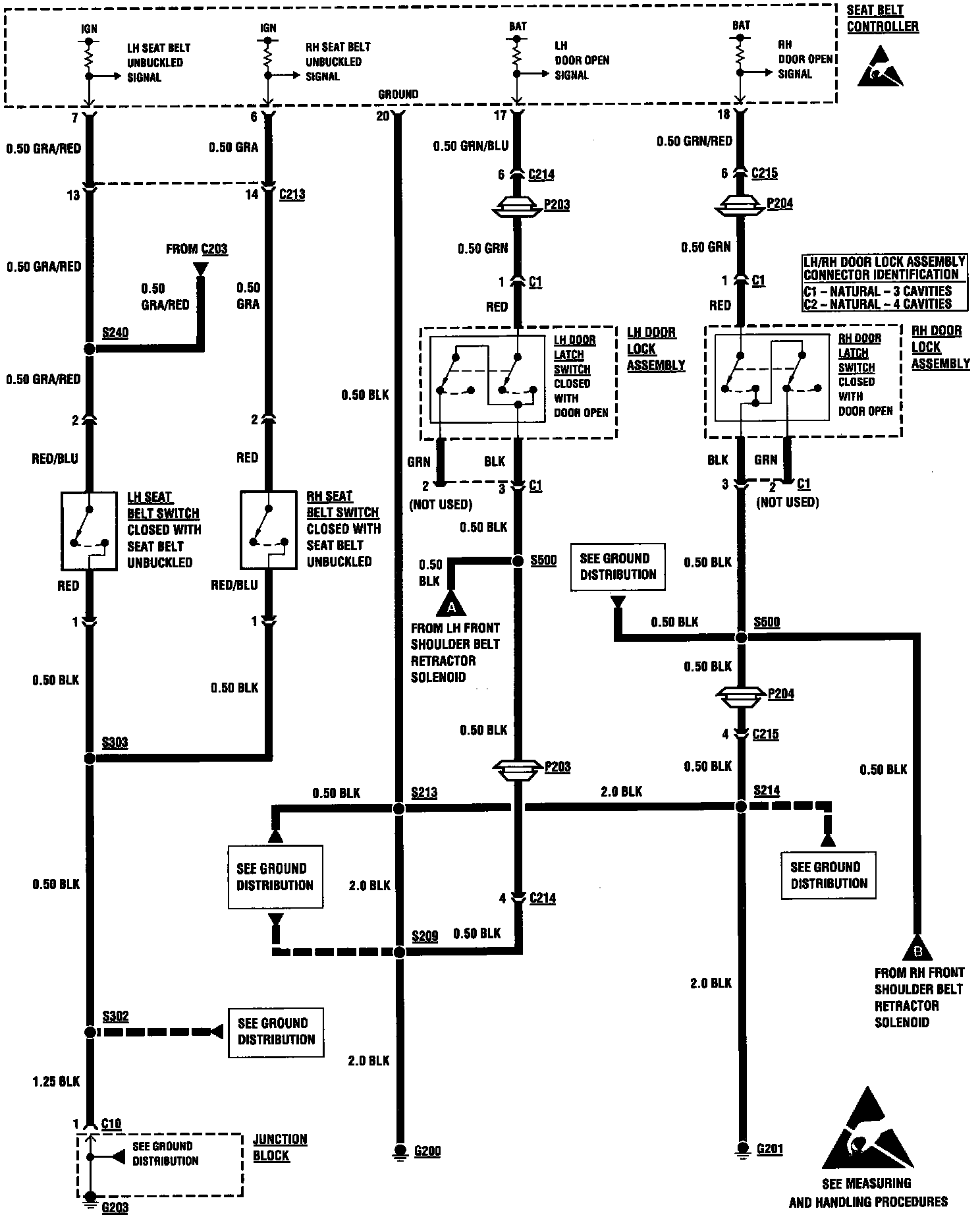

Automatic Seat Belts: Hardtop:

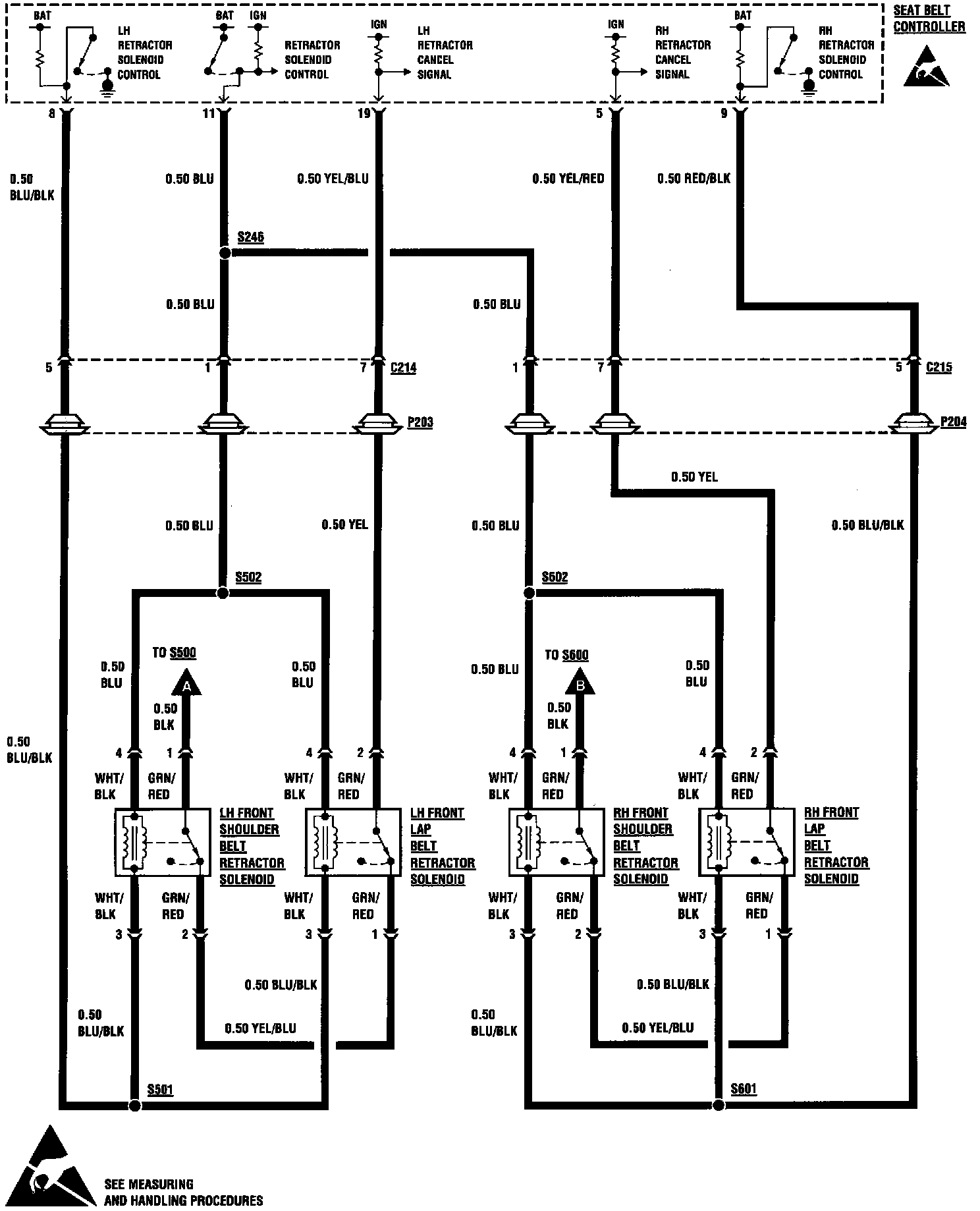

Automatic Seat Belts: Hardtop Cont.:

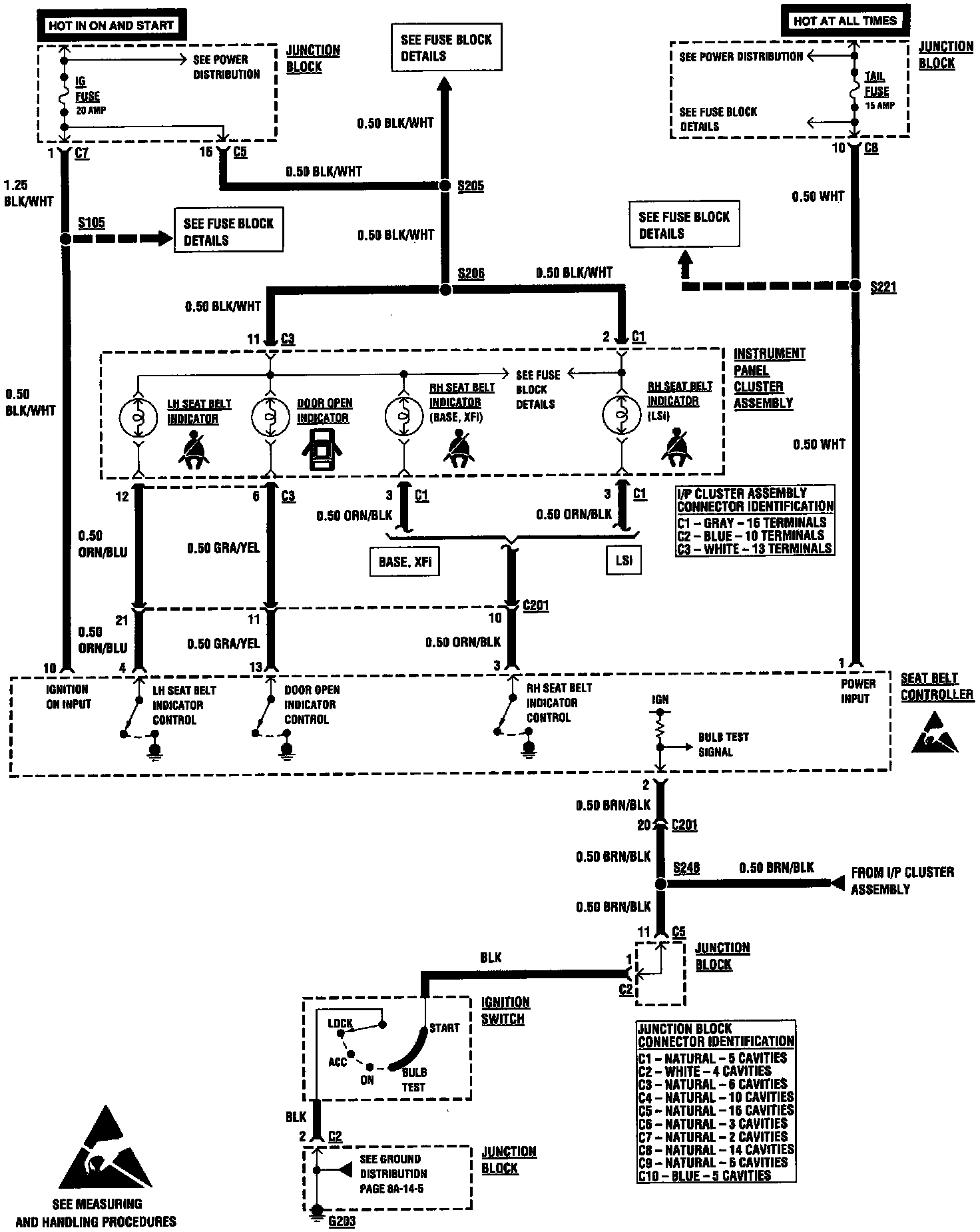

Automatic Seat Belts: Hardtop Cont.:
