Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Chart F Indicator Flashes 7-9 Times Then Flashes DTC 12

Chart F Indicator Flashes 7-9 Times Then Flashes DTC 12

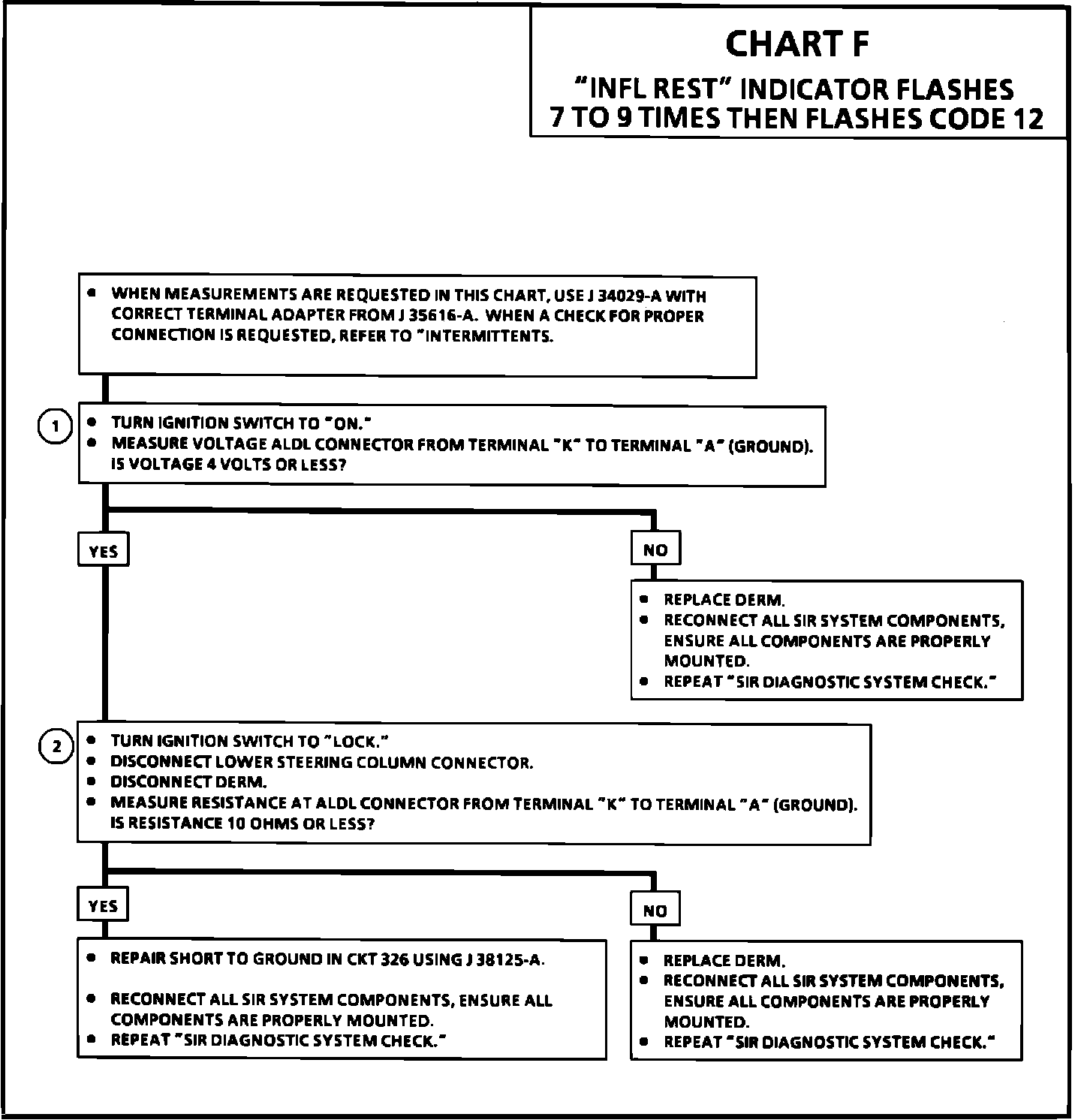

Fig. 371 Chart F, INFL REST Indicator Blinks 7 To 9 Times Then Flashes Code 12 (Part 1 of 2):

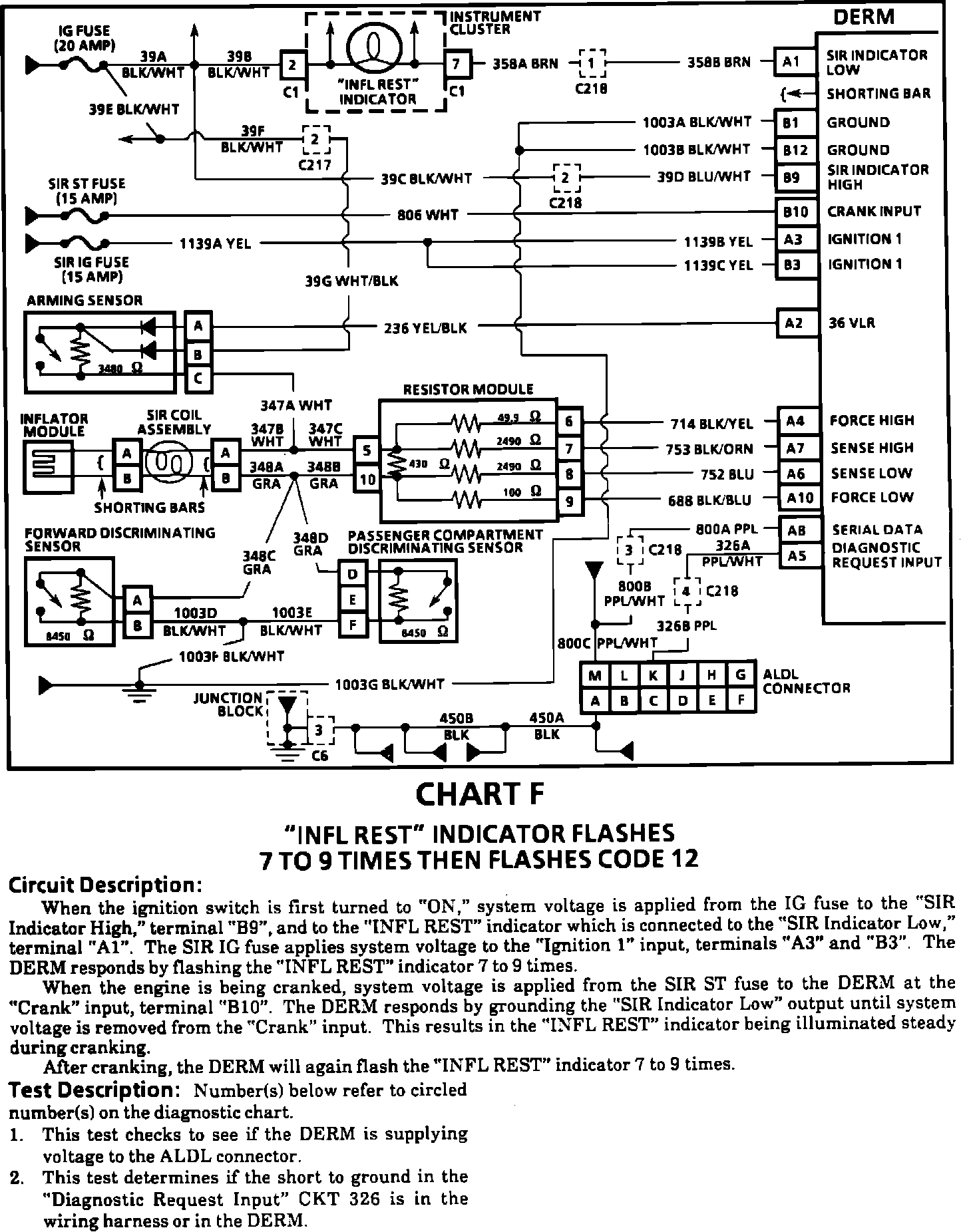

Fig. 371 Chart F, INFL REST Indicator Blinks 7 To 9 Times Then Flashes Code 12 (Part 2 of 2):
