Main Relay (Computer/Fuel System): Locations

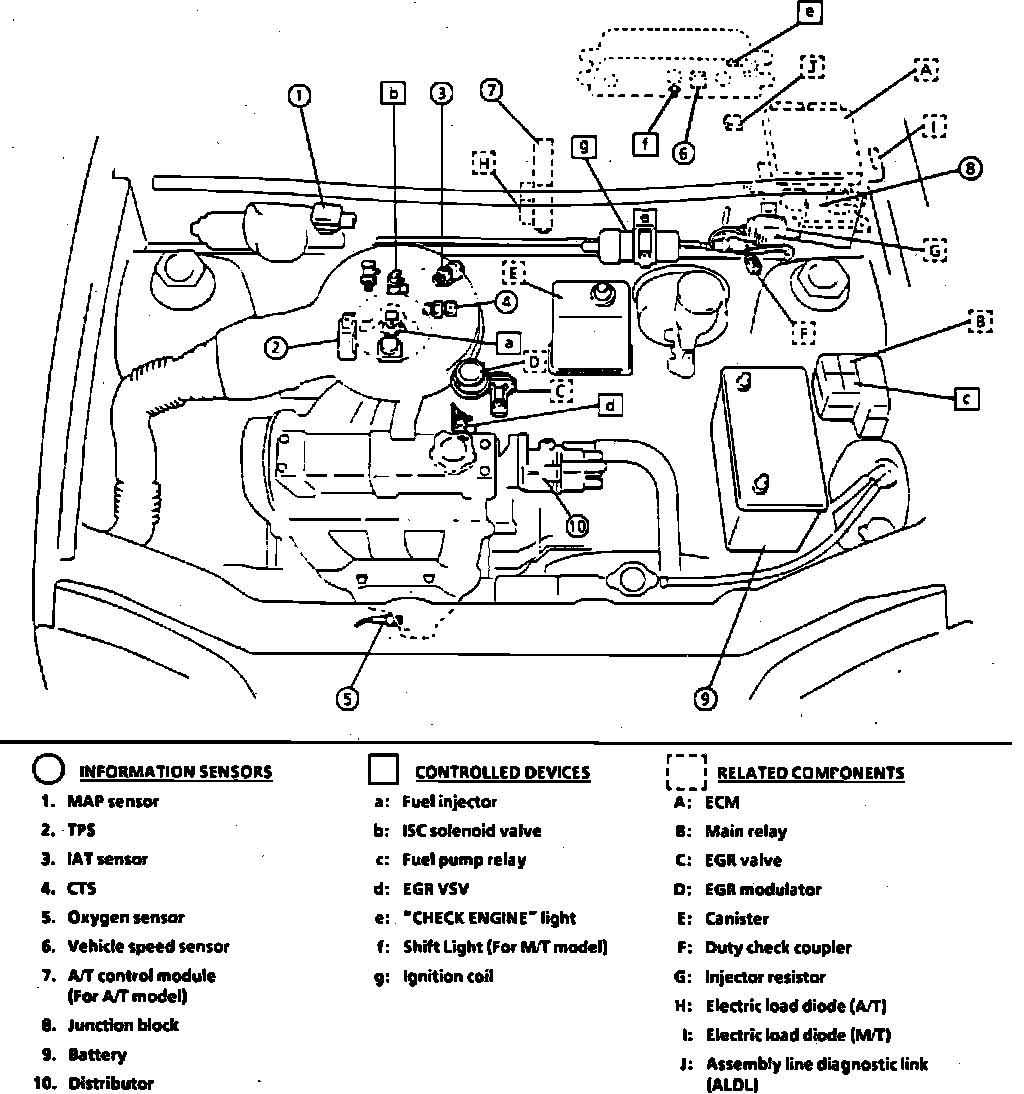

Engine Compartment Component Location:

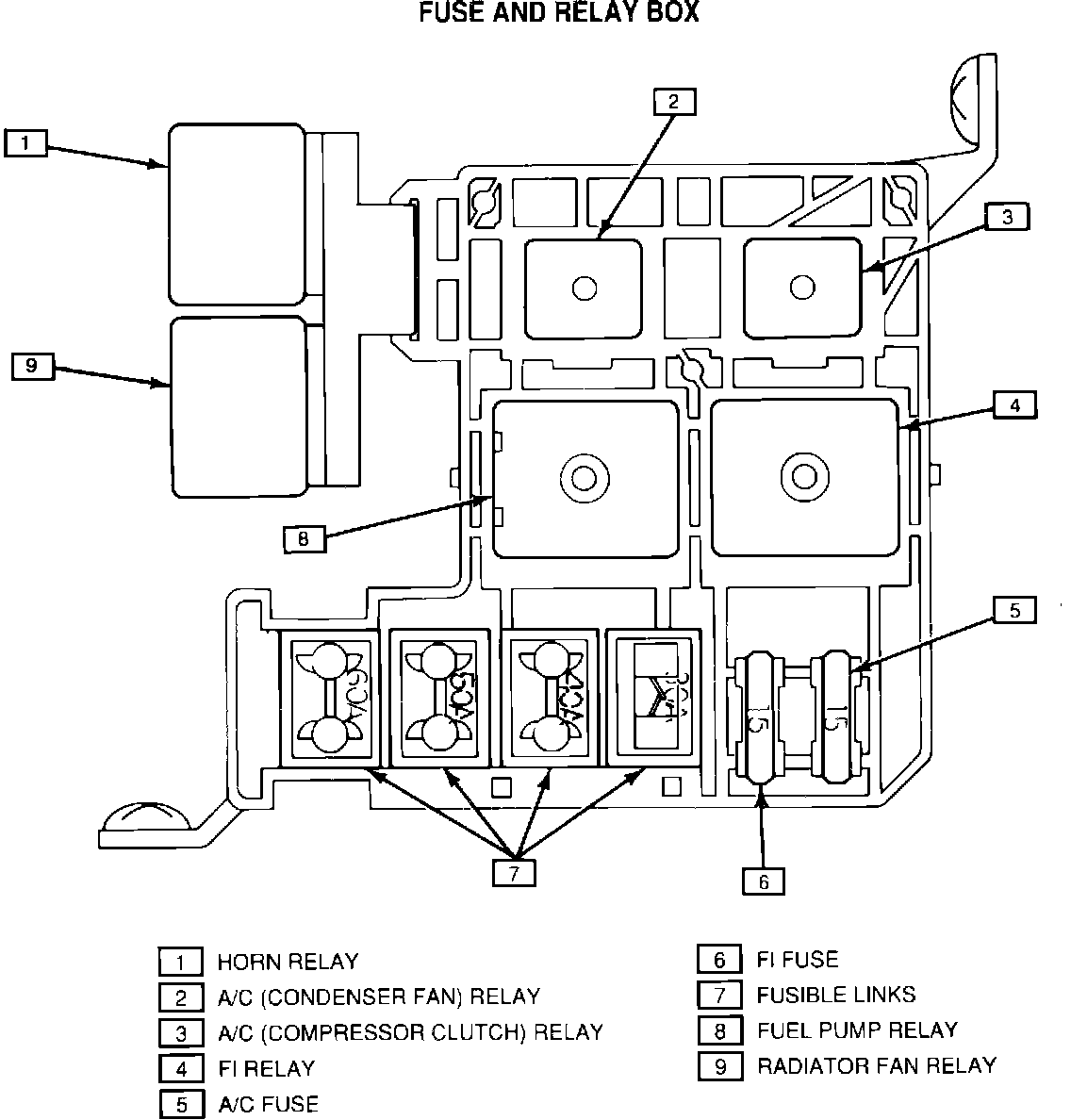

Fuse Block Detail:




LH Side Of engine compartment, inside fuse/relay box.
