Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Delivery
Fuel Control & Delivery

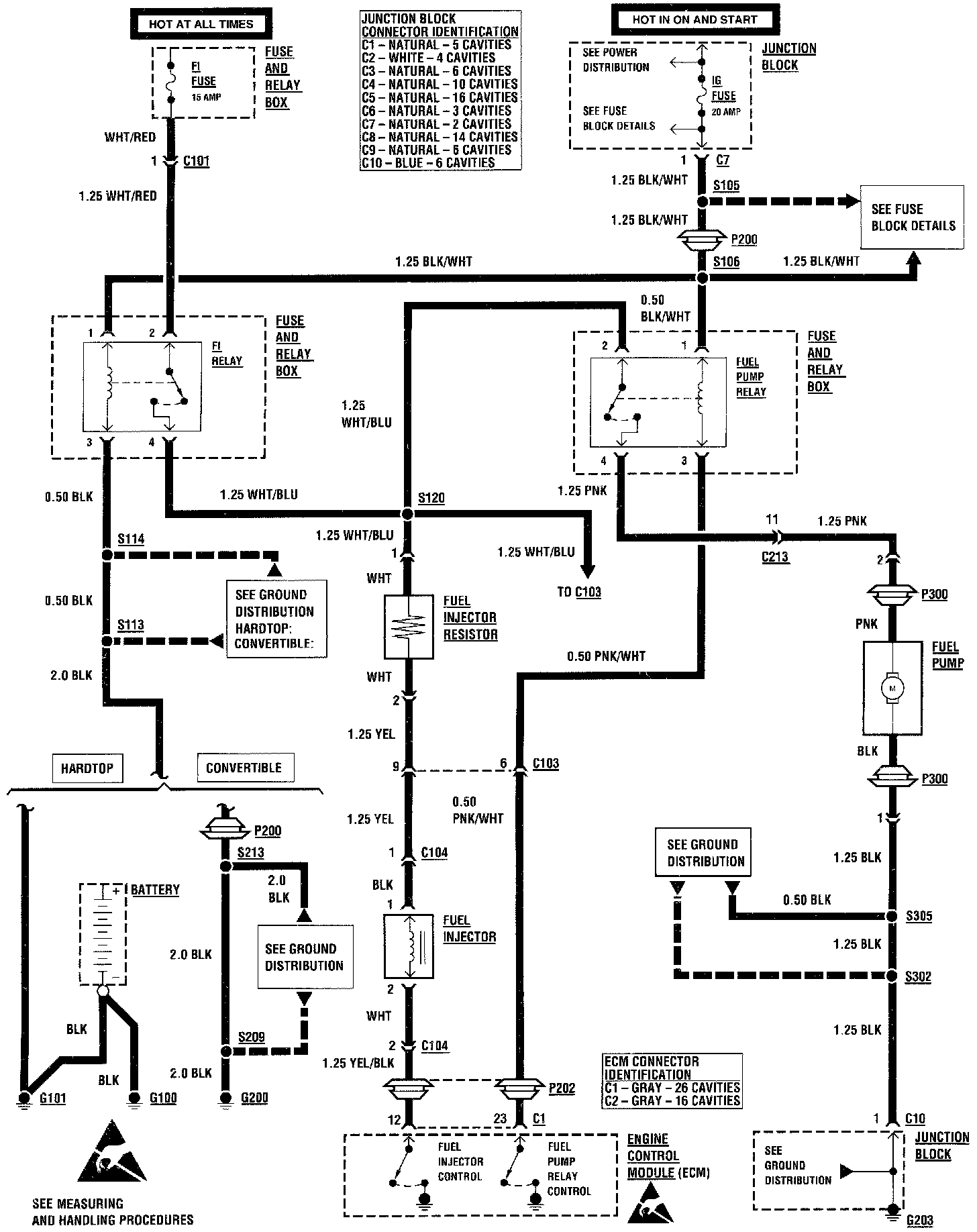

Engine Controls: Fuel Injector & Pump Controls:
