Engine Data Sensors & Vehicle Data Sensors

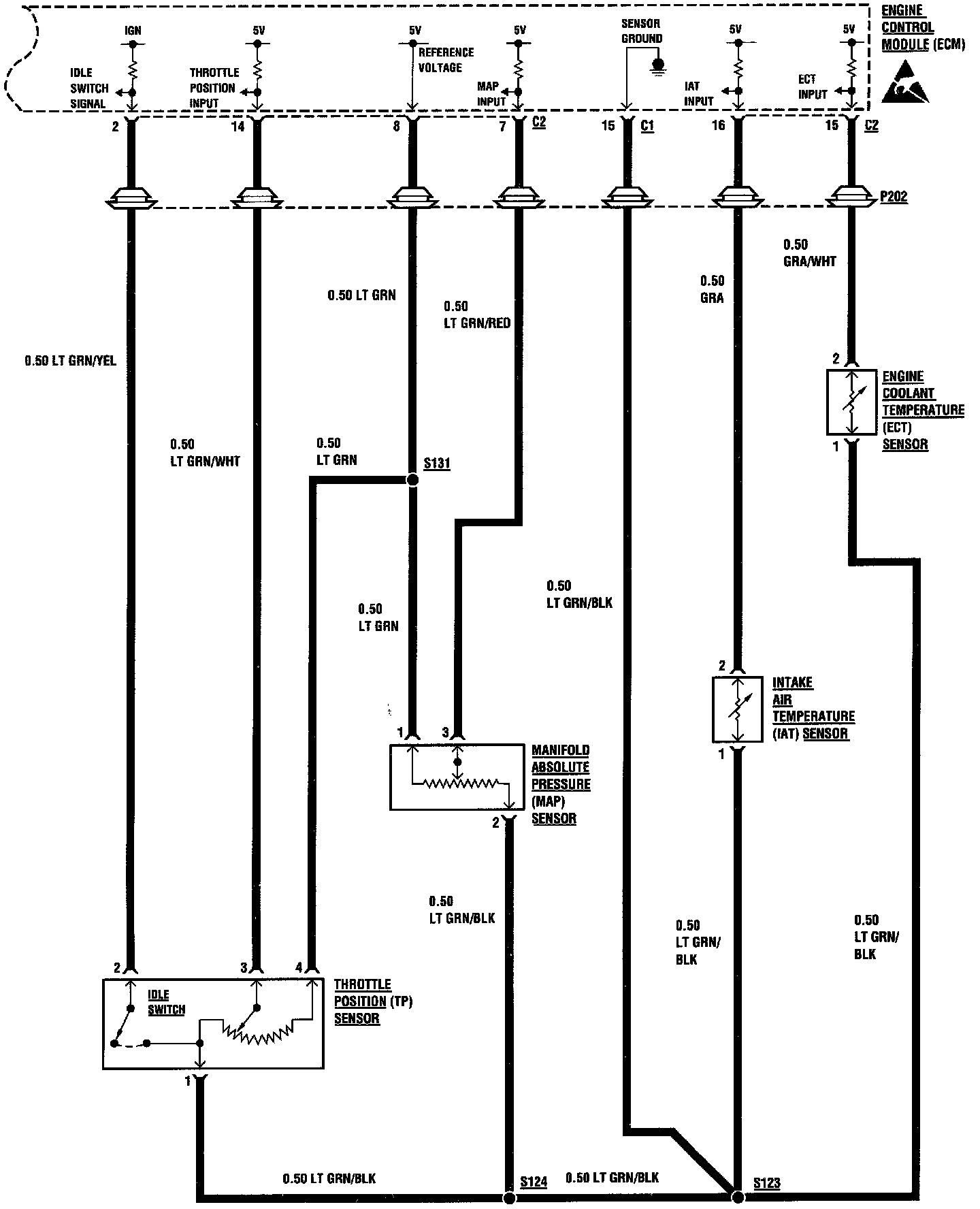

Engine Wiring Diagrams 93 Metro:

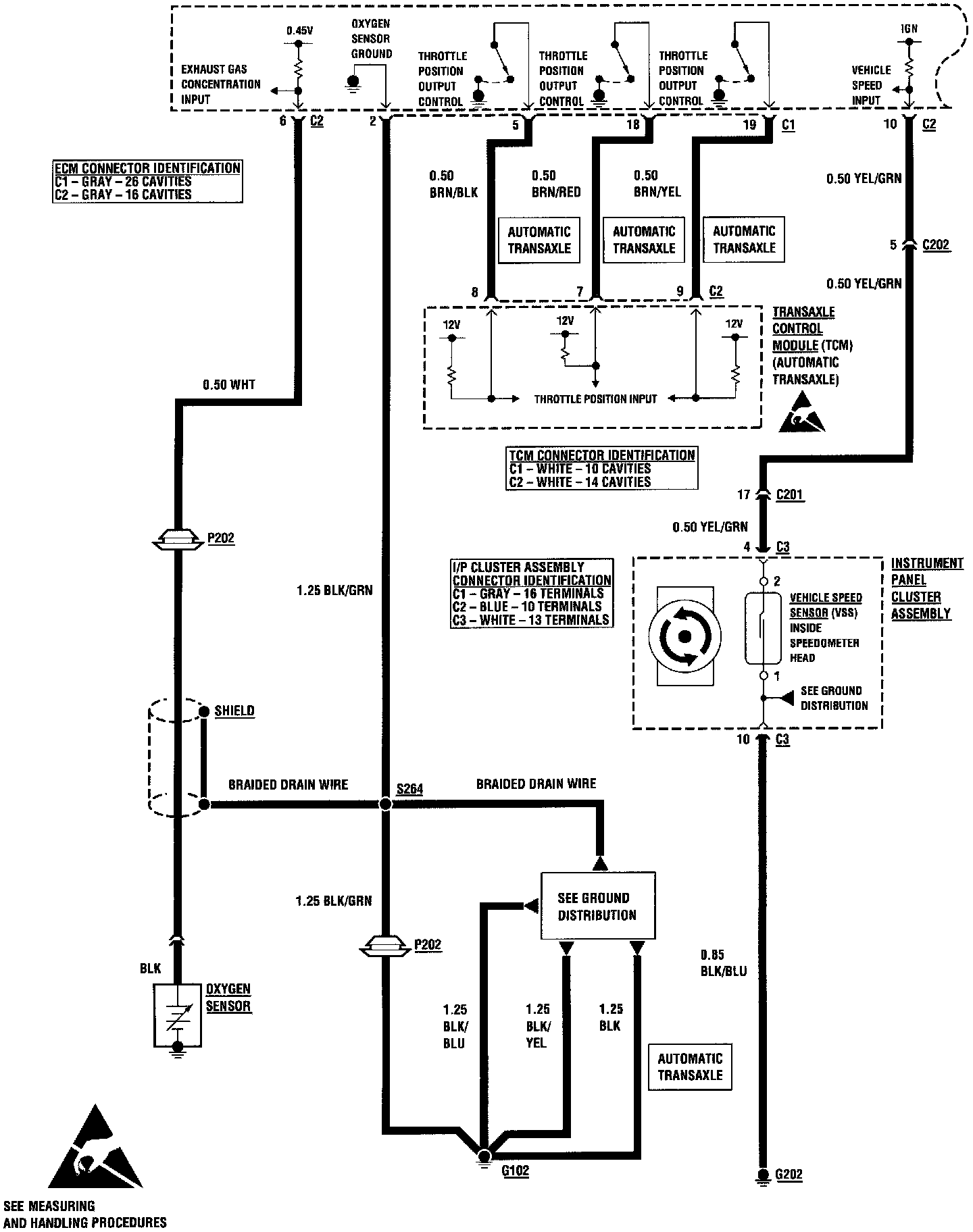

Engine Wiring Diagrams 93 Metro:

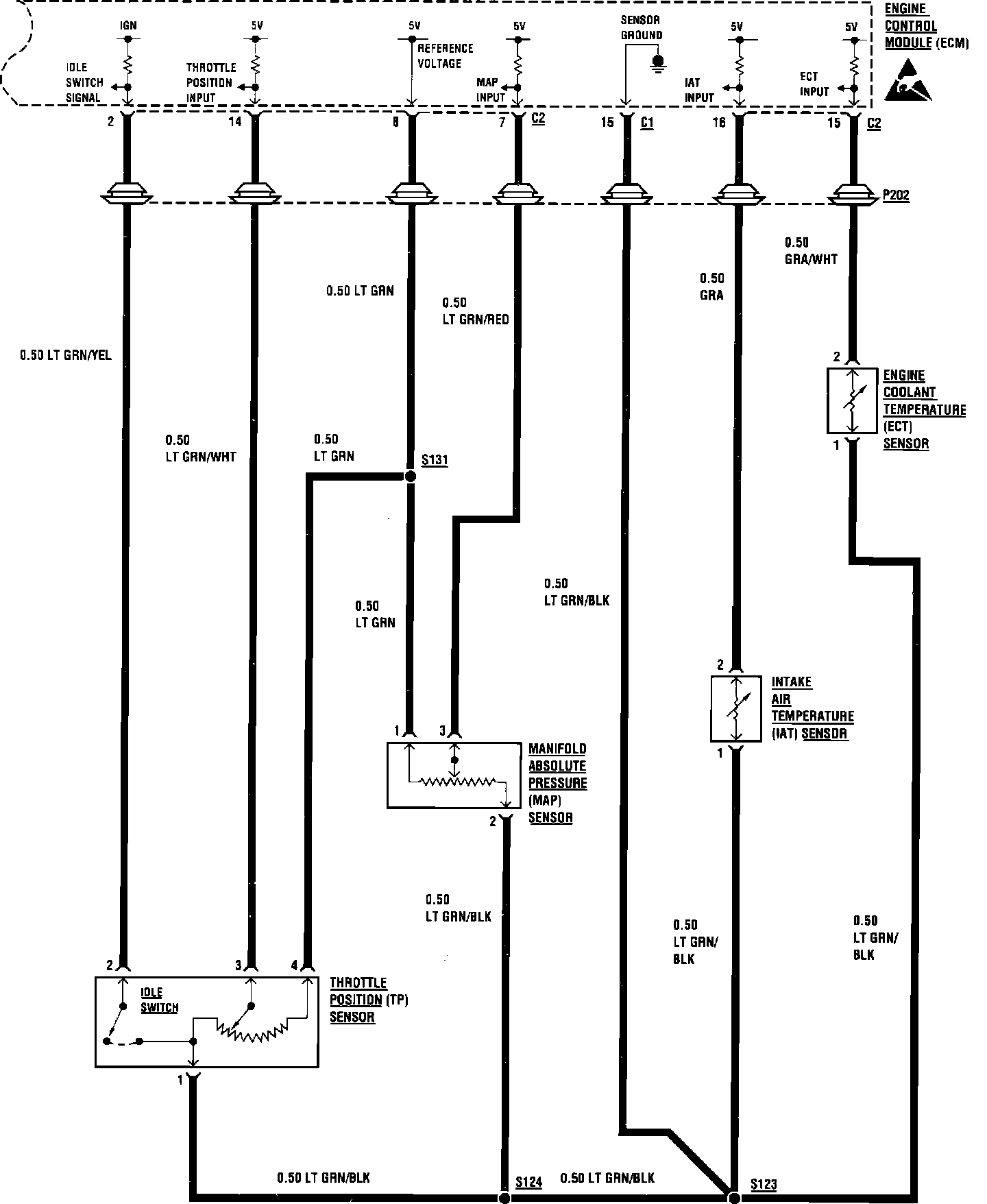

Engine Controls: Engine & Vehicle Data Sensors:

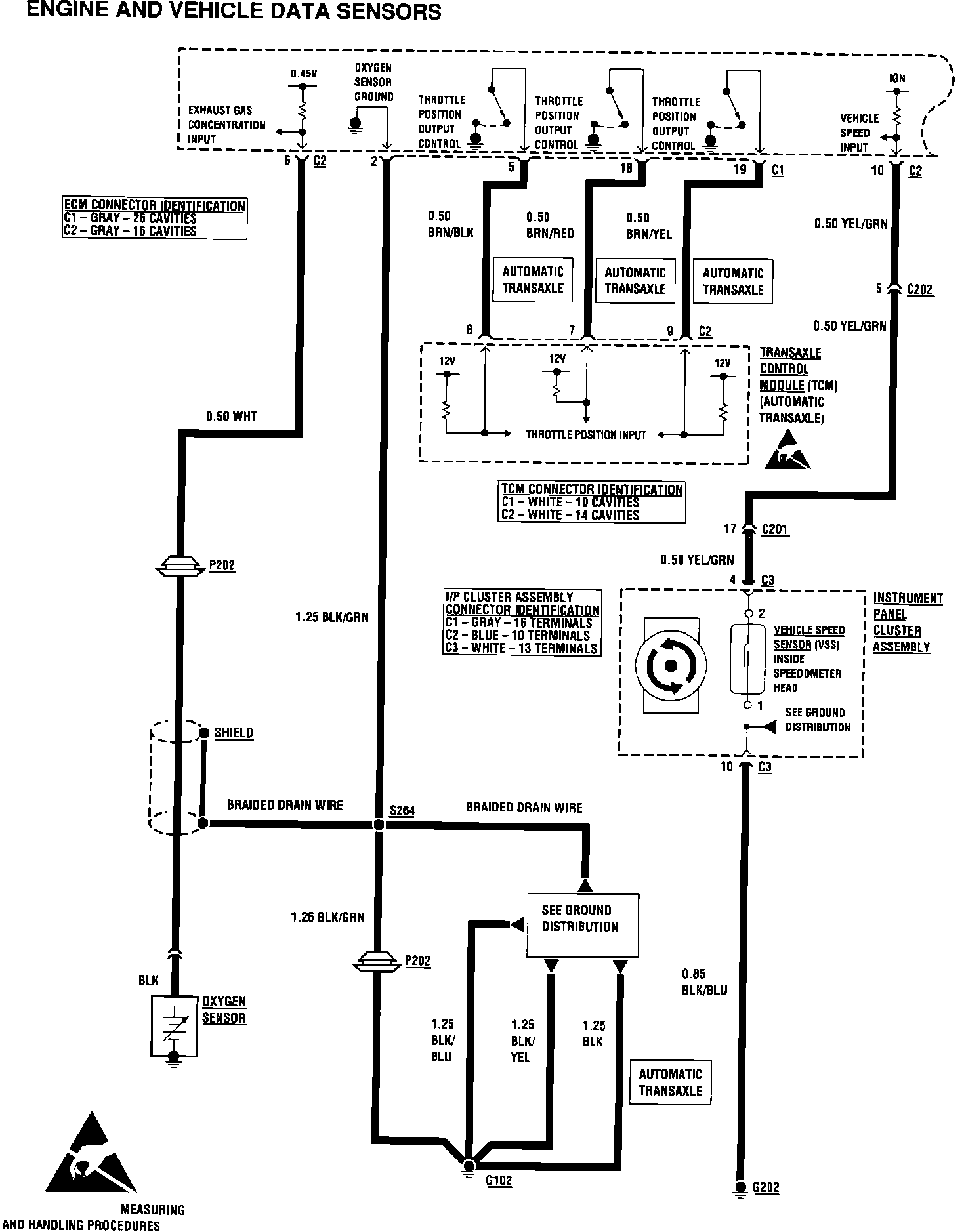

Engine Controls: Engine & Vehicle Data Sensors Cont.:
