Electrical Diagrams

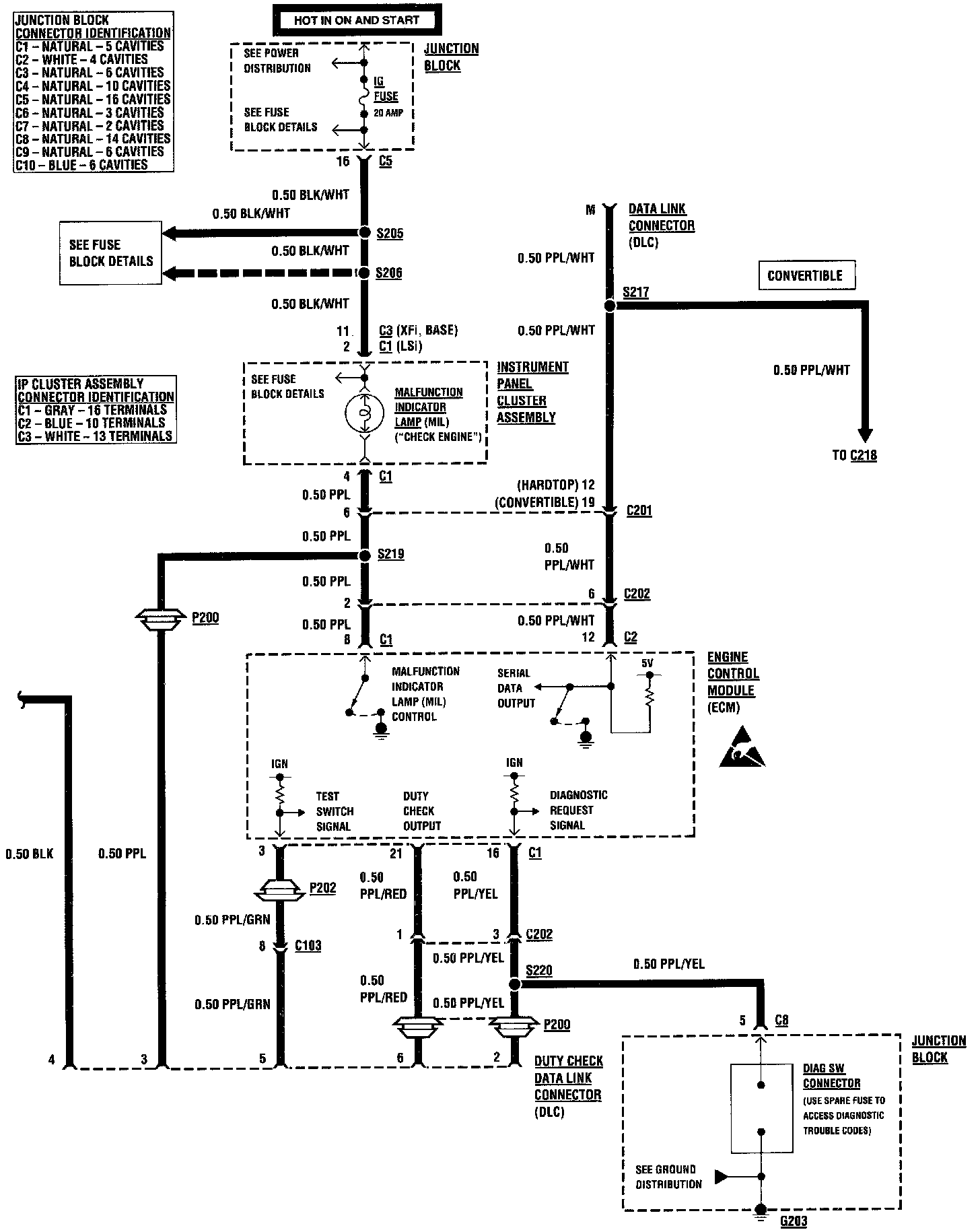

Engine Controls: Power, Ground & MIL:

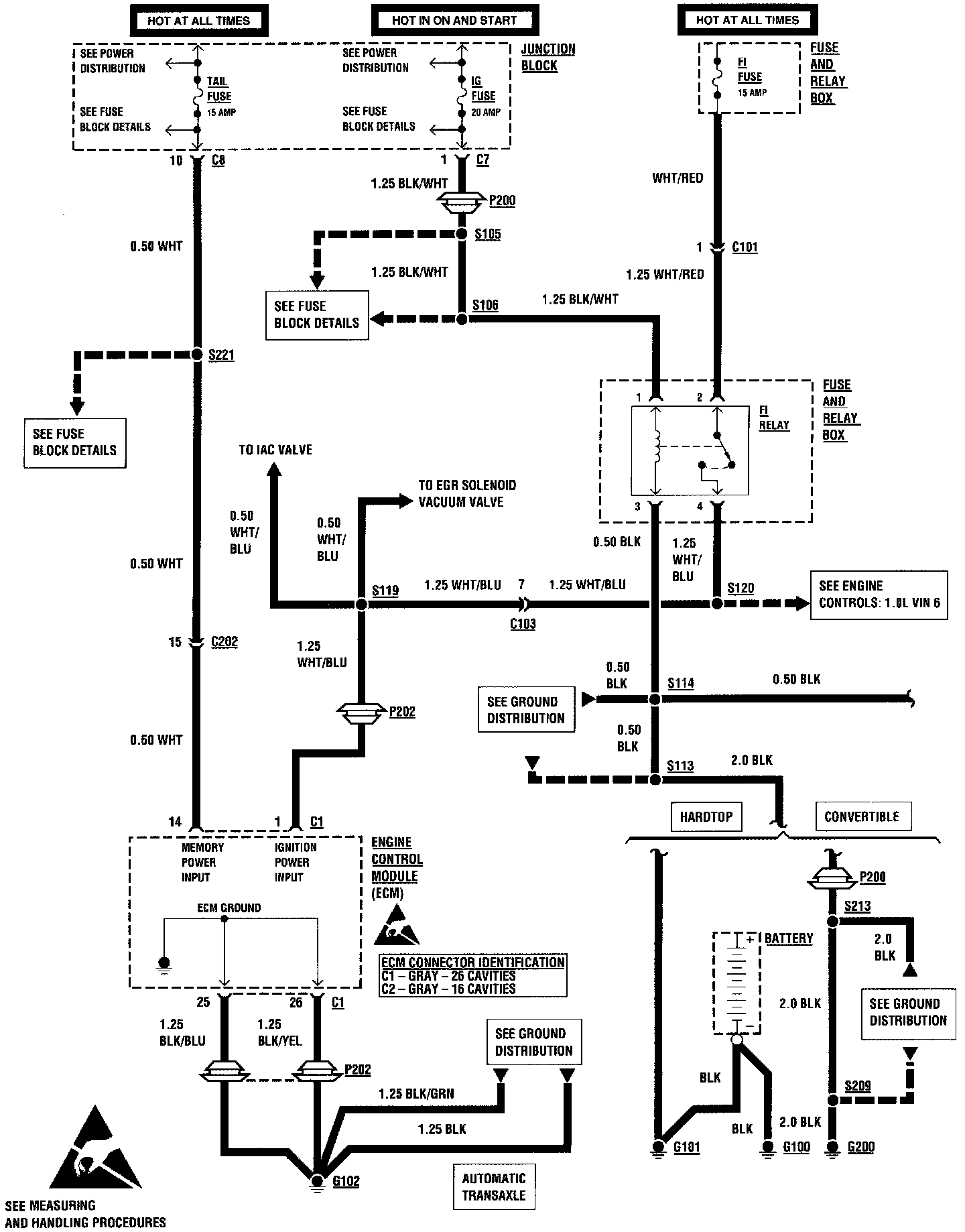

Engine Controls: Power, Ground & MIL Cont.:
