Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lamps >> Part 1 of 3

Part 1 of 3

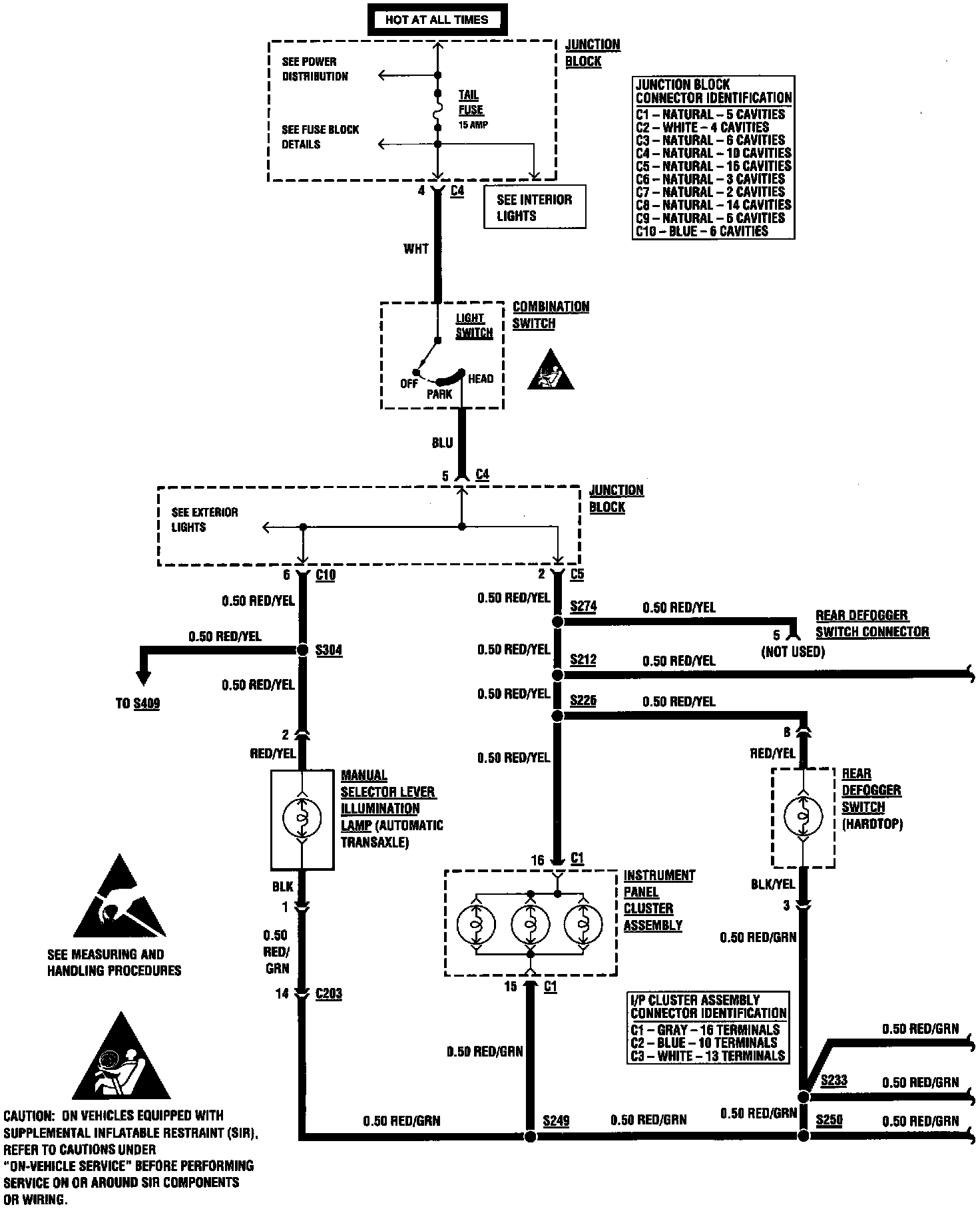

Interior Lights:
