Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Testing and Inspection
>>
Diagnostic Charts
>>
Manual Transaxle
Manual Transaxle

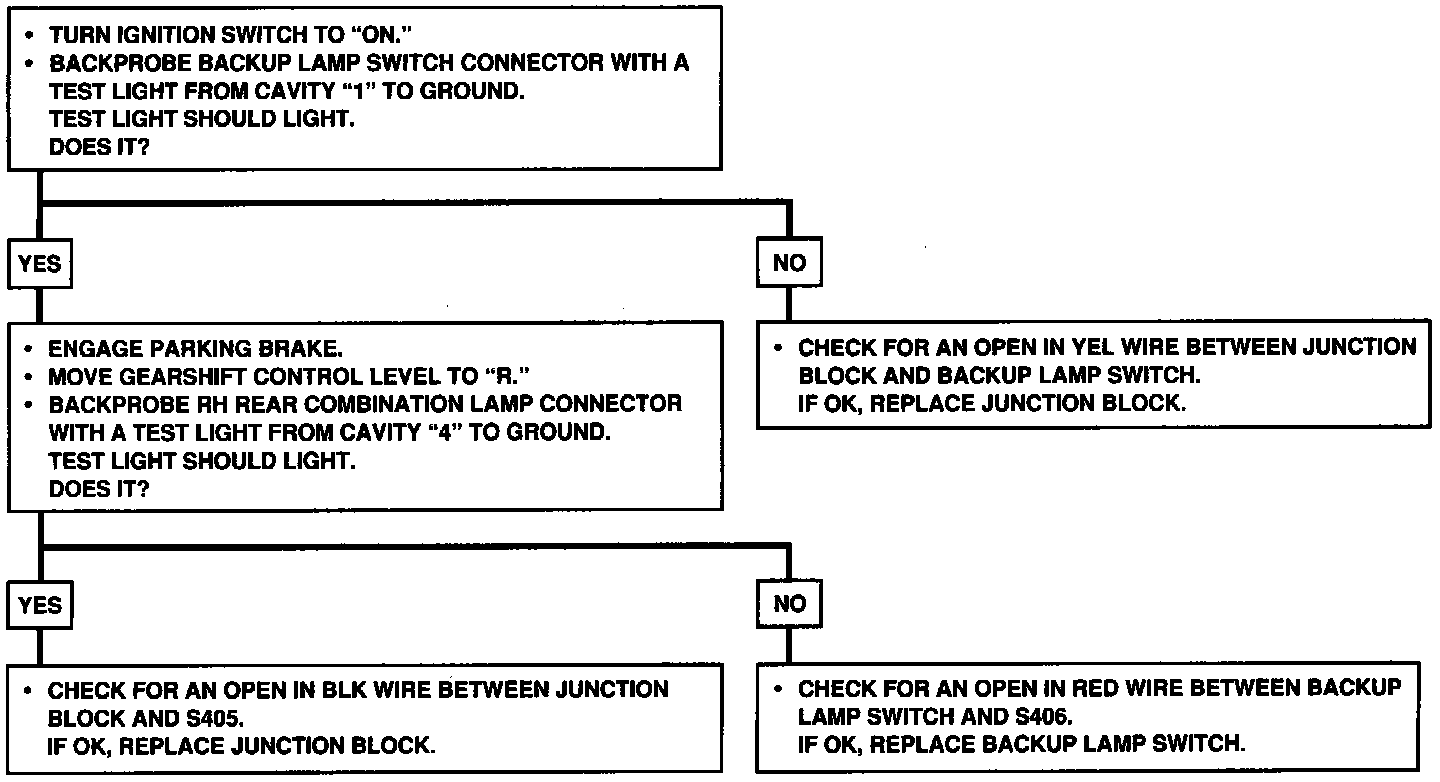

Chart 1: Backup Lights, Do Not Light (Manual Transaxle):
