Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Testing and Inspection >> Diagnostic Charts >> Automatic Transaxle

Automatic Transaxle

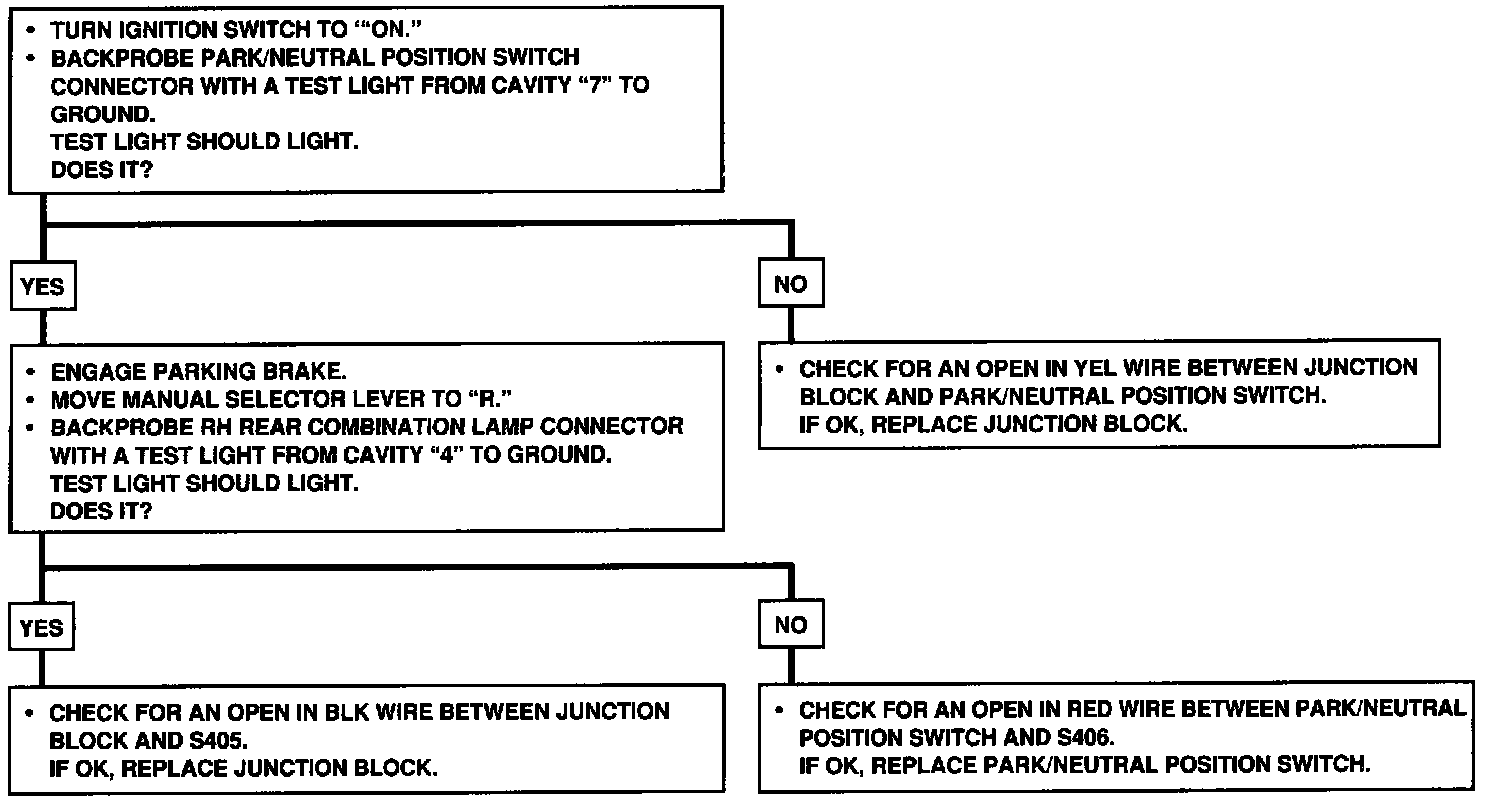

Chart 2: Backup Lights, Do Not Light (Automatic Transaxle):
