Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Connector Views >> Part 1 of 3

Part 1 of 3

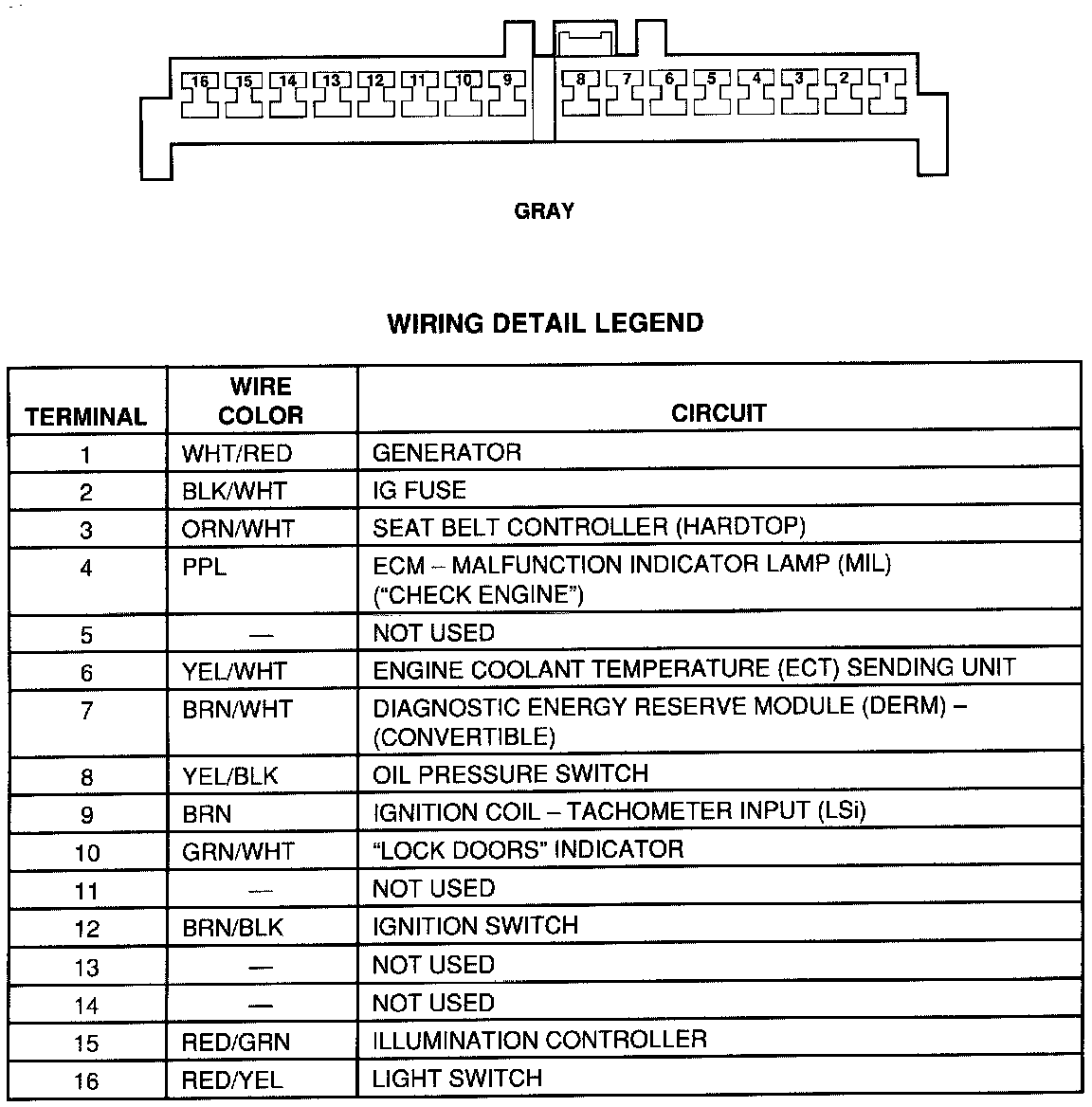

Instrument Cluster: With Gages, Instrument Panel Cluster Connector: C1 & Wiring Legend:
