Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Pressure High/Low
Pressure High/Low

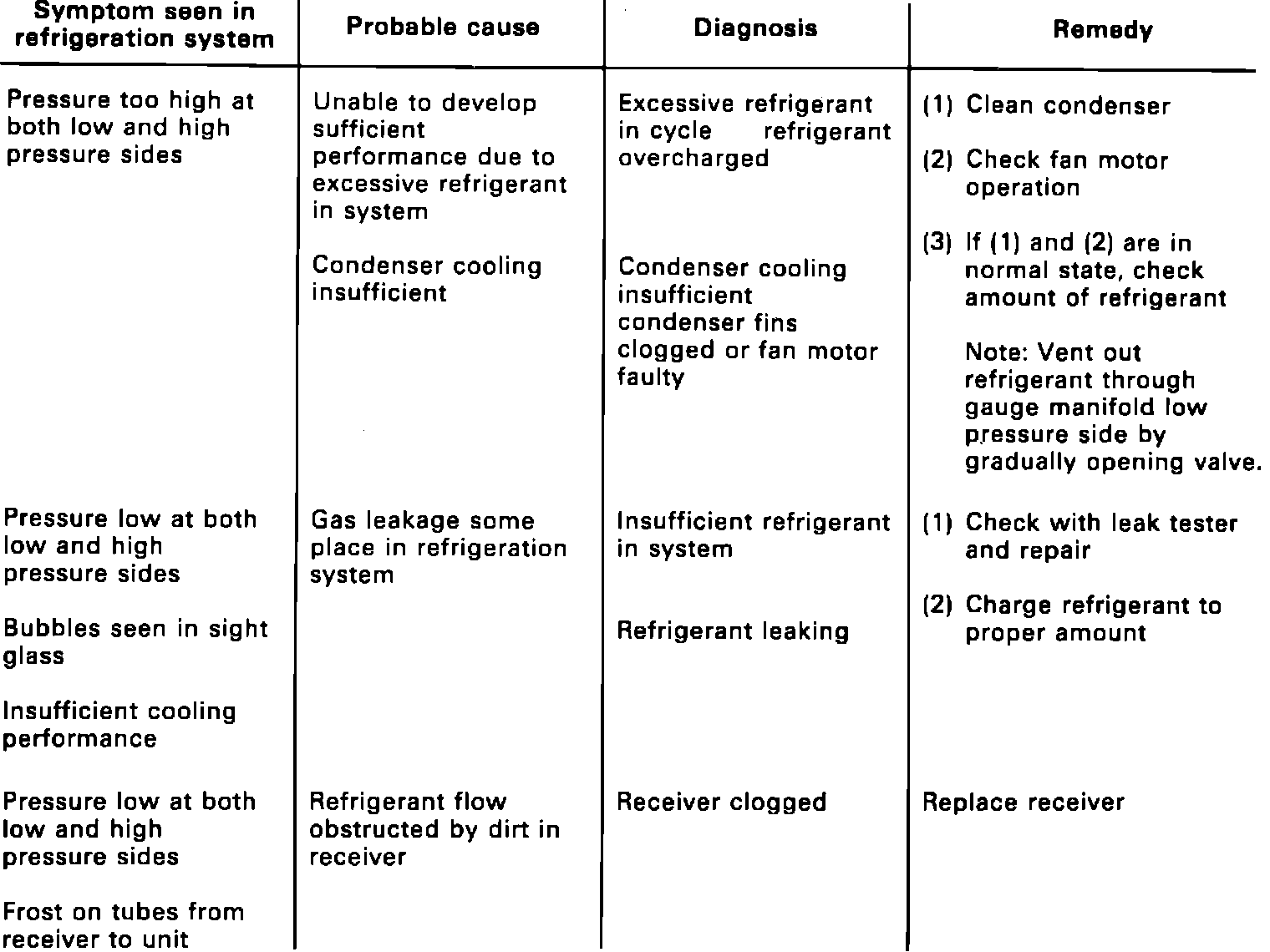

Fig. 26b A/C cooling system diagnosis (Part 2 of 3).:
