Variable Displacement Orifice Tube System
>>
Troubleshooting Step 7
Troubleshooting Step 7

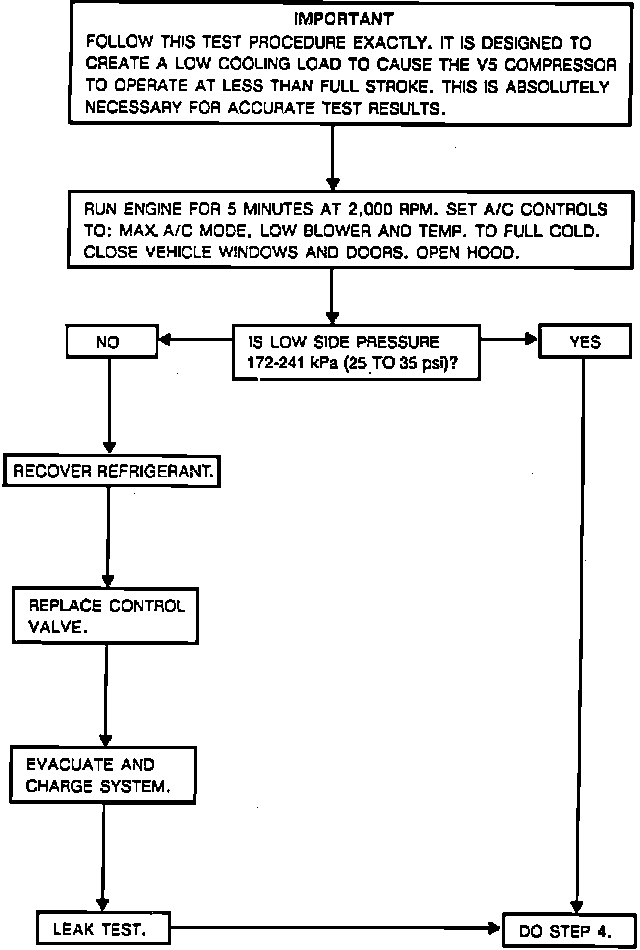

Troubleshooting Step 7. Variable Displacement Orifice Tube System:
