Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Service and Repair >> Diagnostic Charts >> Variable Displacement Orifice Tube System >> Troubleshooting Step 3

Troubleshooting Step 3

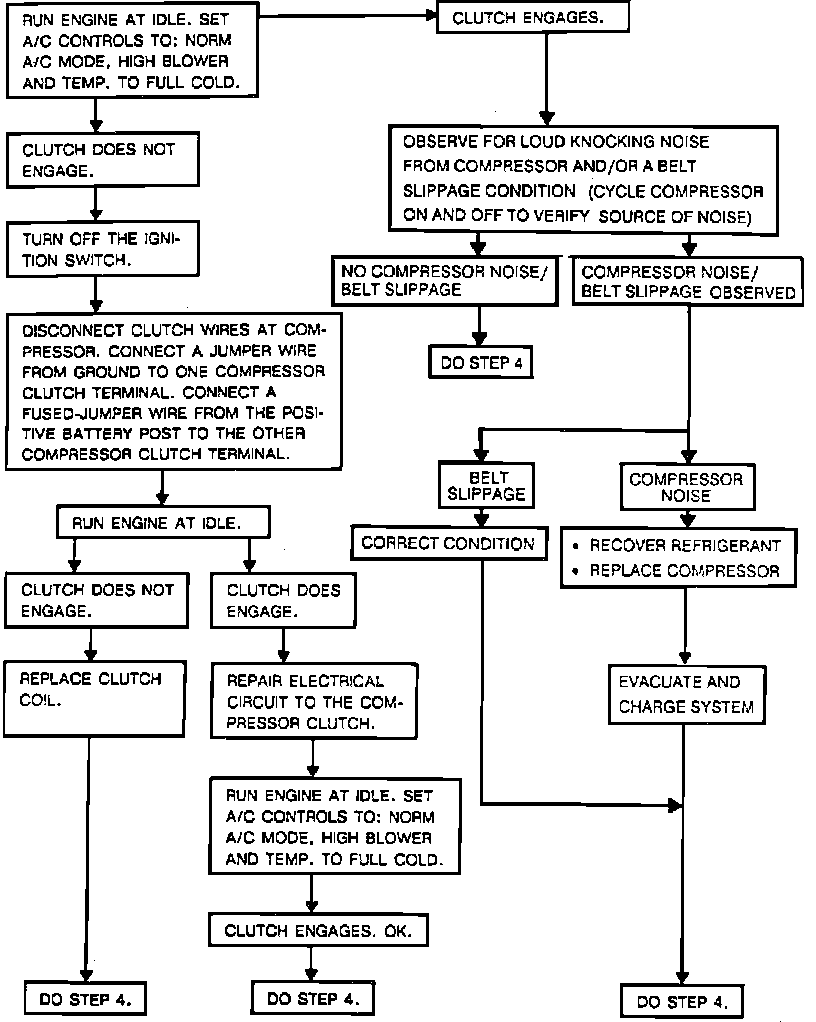

Troubleshooting Step 3. Variable Displacement Orifice Tube System:
