Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Service and Repair
>>
Diagnostic Charts
>>
Variable Displacement Orifice Tube System
>>
Troubleshooting Step 2
Troubleshooting Step 2

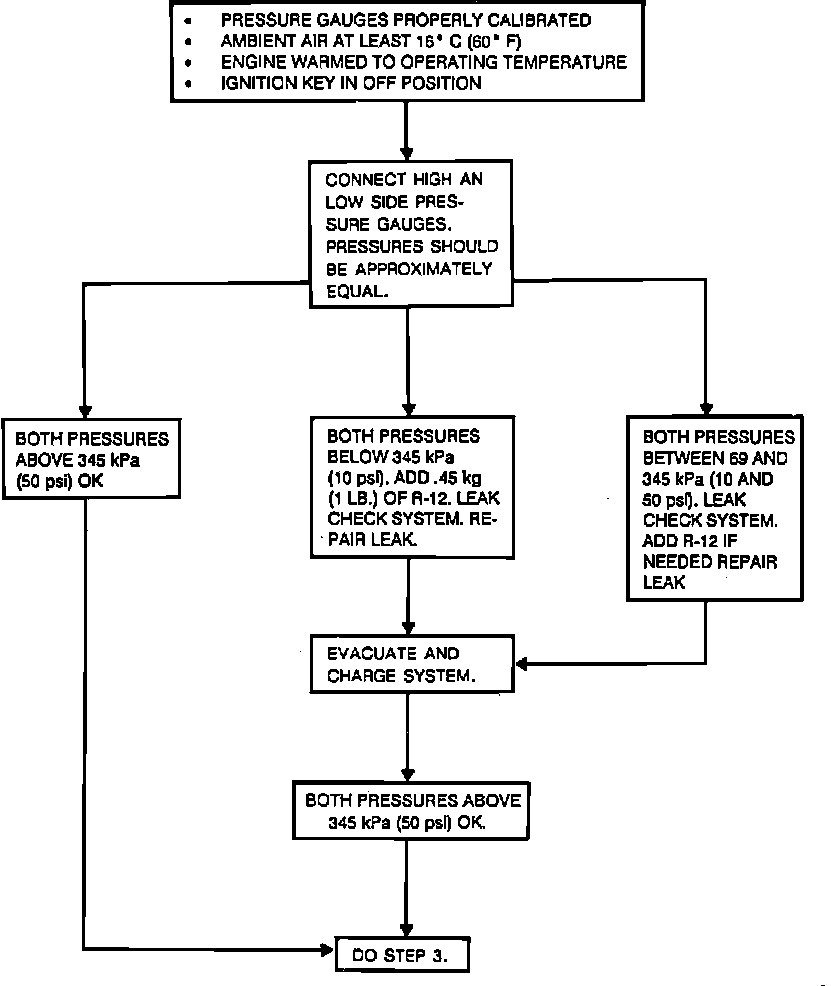

Troubleshooting Step 2. Variable Displacement Orifice Tube System:
