FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Service and Repair
>>
Diagnostic Charts
>>
Variable Displacement Orifice Tube System
>>
Troubleshooting Step 1
Troubleshooting Step 1

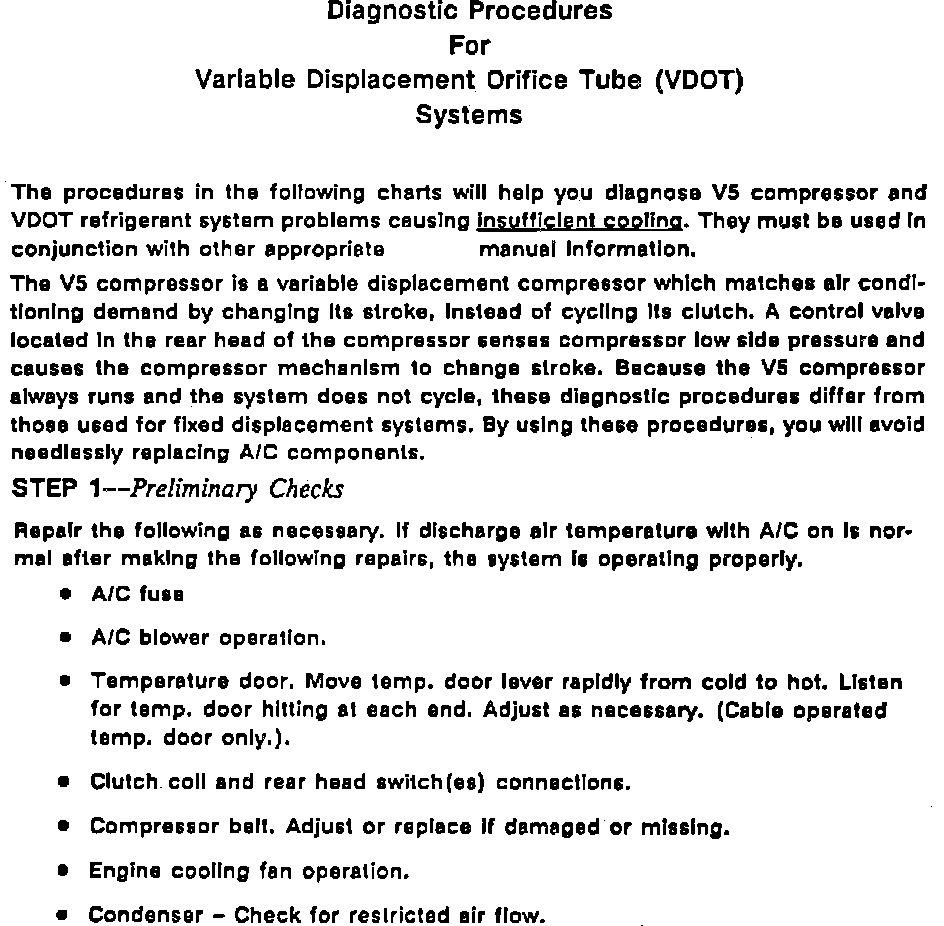

Troubleshooting Step 1. Variable Displacement Orifice Tube System:
