Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Service and Repair >> Diagnostic Charts >> Thermal Expansion Valve System >> Troubleshooting Step 5

Troubleshooting Step 5

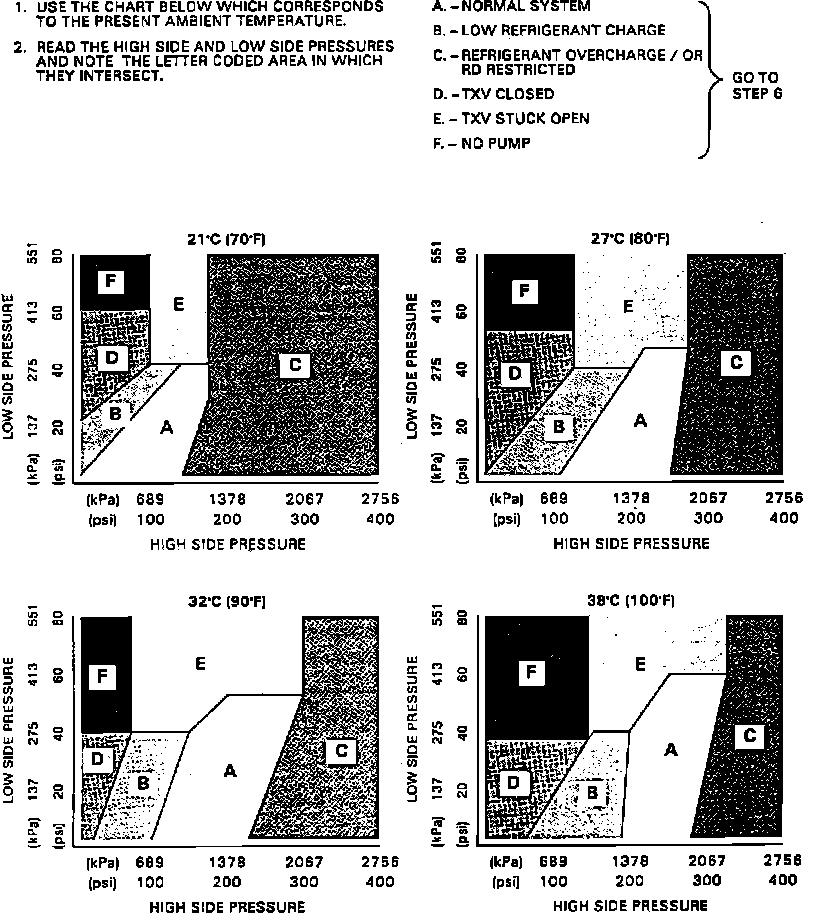

Fig. 16 Troubleshooting Step 5. Thermal Expansion Valve System, Performance Range Charts:
