Engine: Specifications

Torque Specifications:

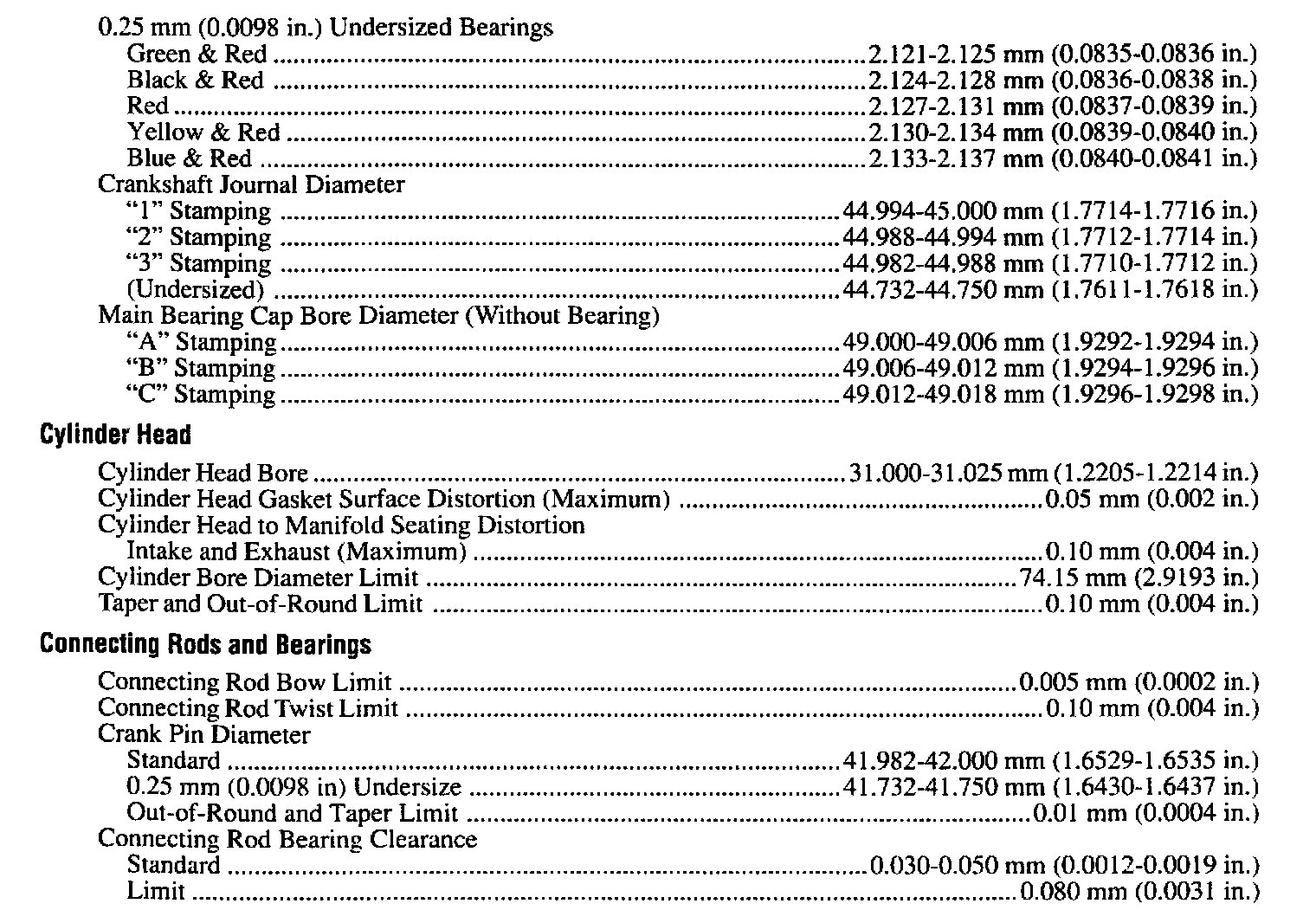

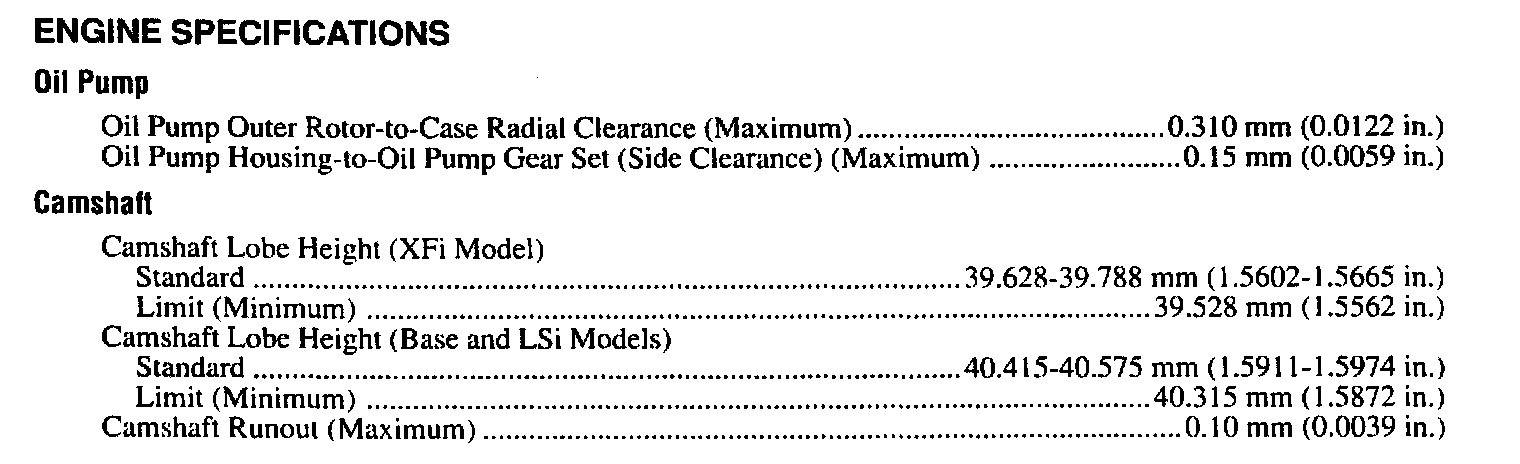

Engine Specifications:

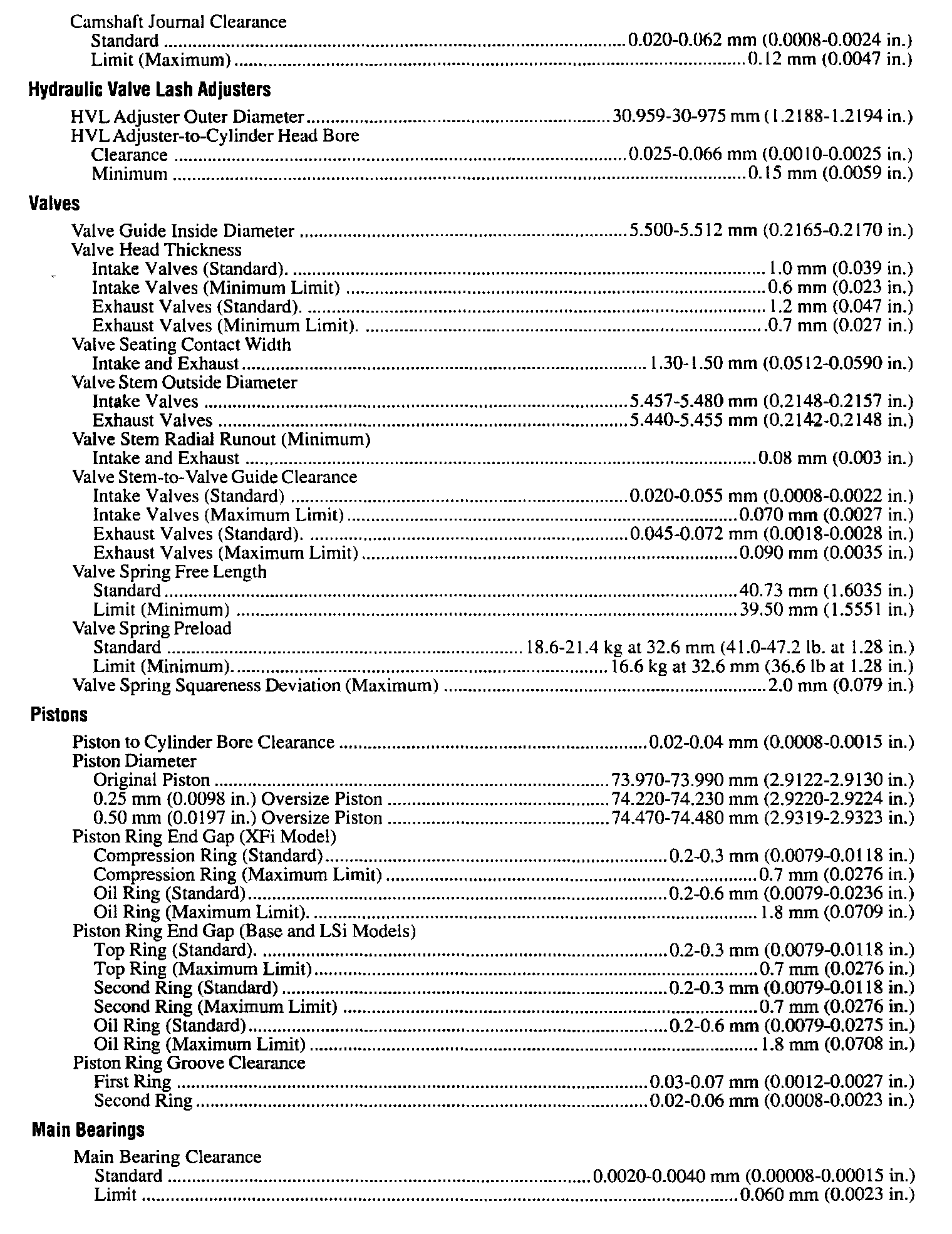

Continued Engine Specifications:

Continued Engine Specifications:

Cylinder Head Bolt Tightening Sequence:
