Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block Diagrams
>>
SIR ST, SIR IG, FI & A/C Fuse
SIR ST, SIR IG, FI & A/C Fuse

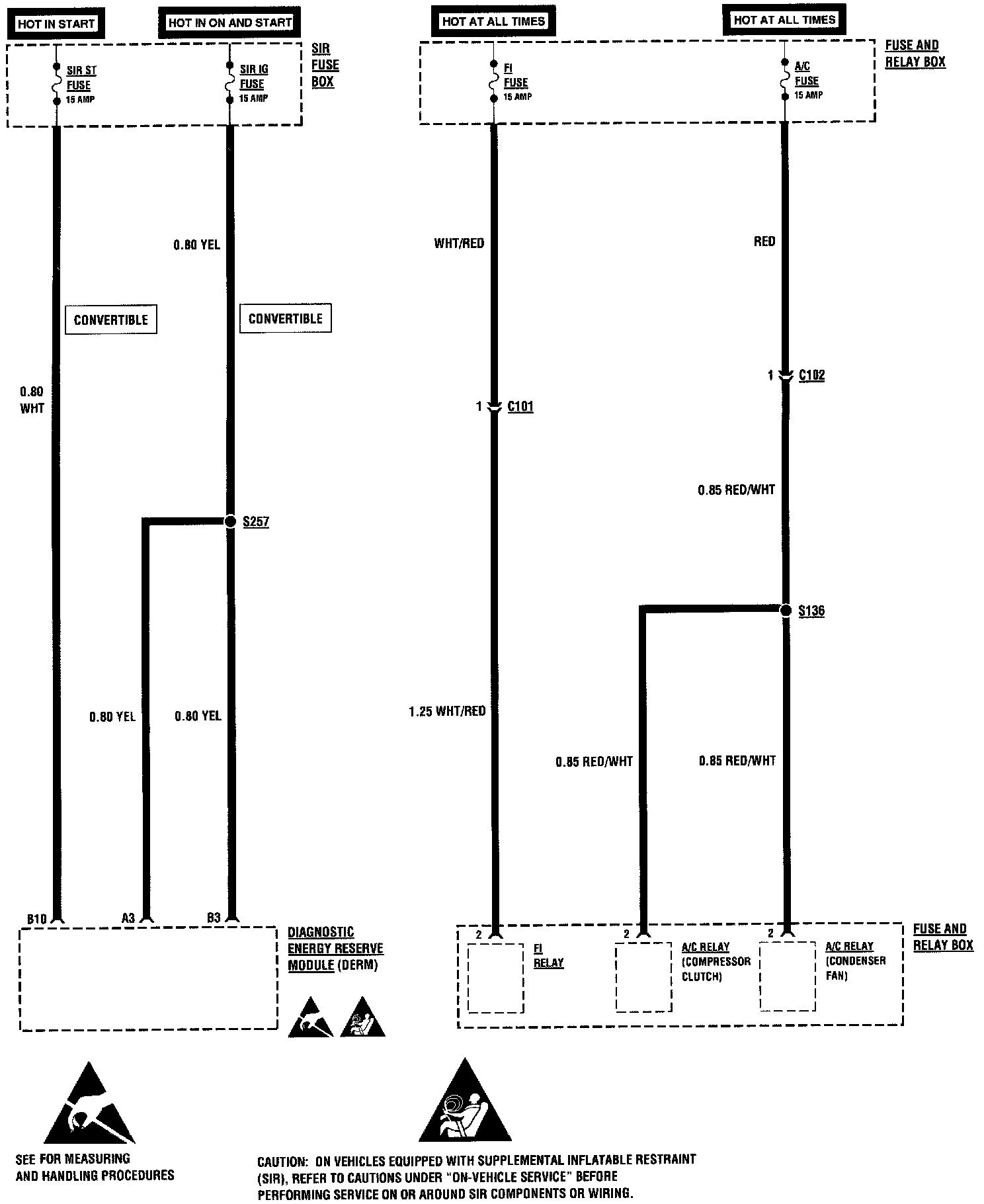

Fuse Block Details: Sir St & Sir IG Fuse, FI & A/C Fuse:
