Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio With Cassette and Compact Disc Player

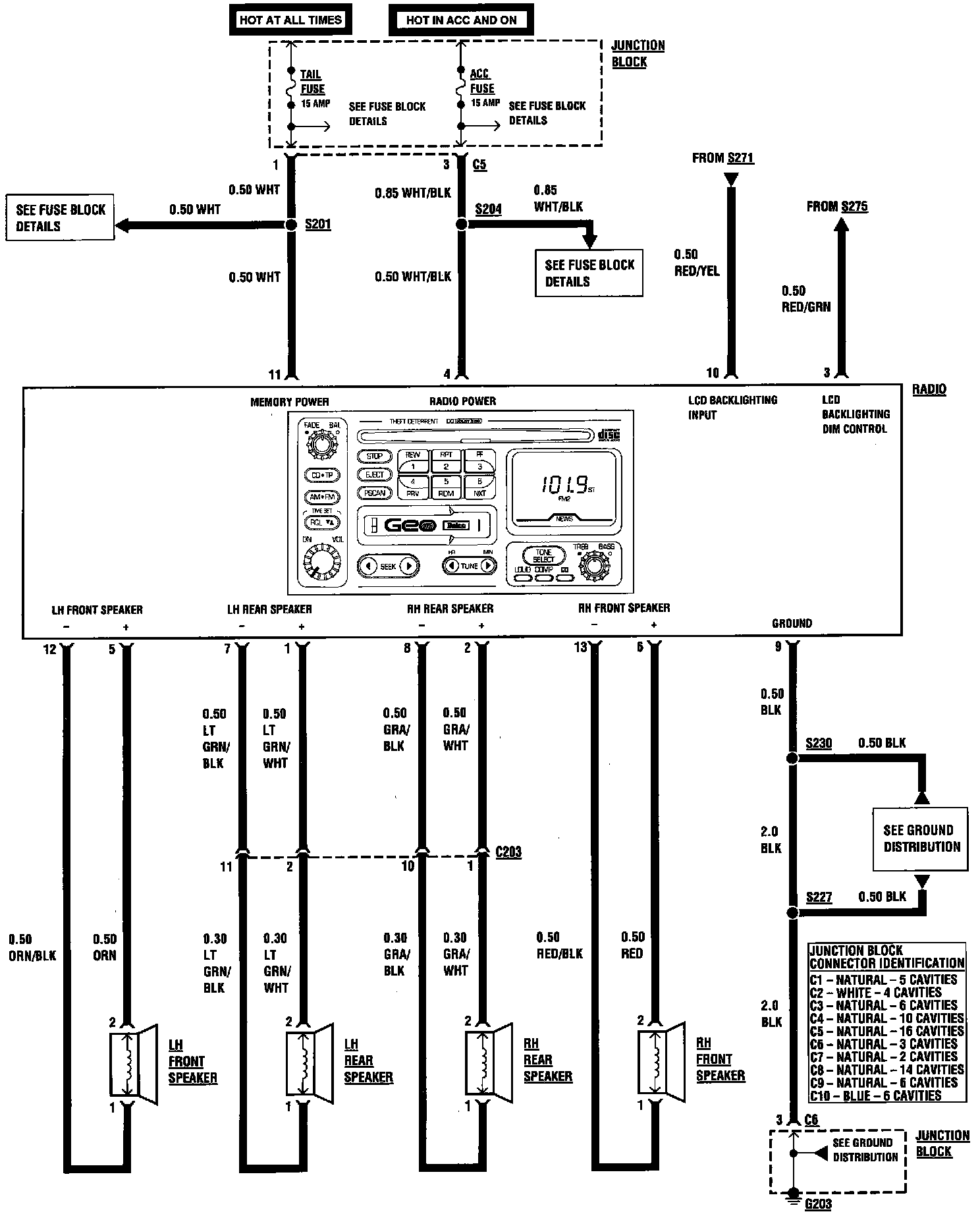

Radio With Cassette and Compact Disc Player

Radio/Audio Systems: Radio With Cassette & Compact Disc Player:
