Power, Grounds & Malfunction Indicator Lamp (MIL)

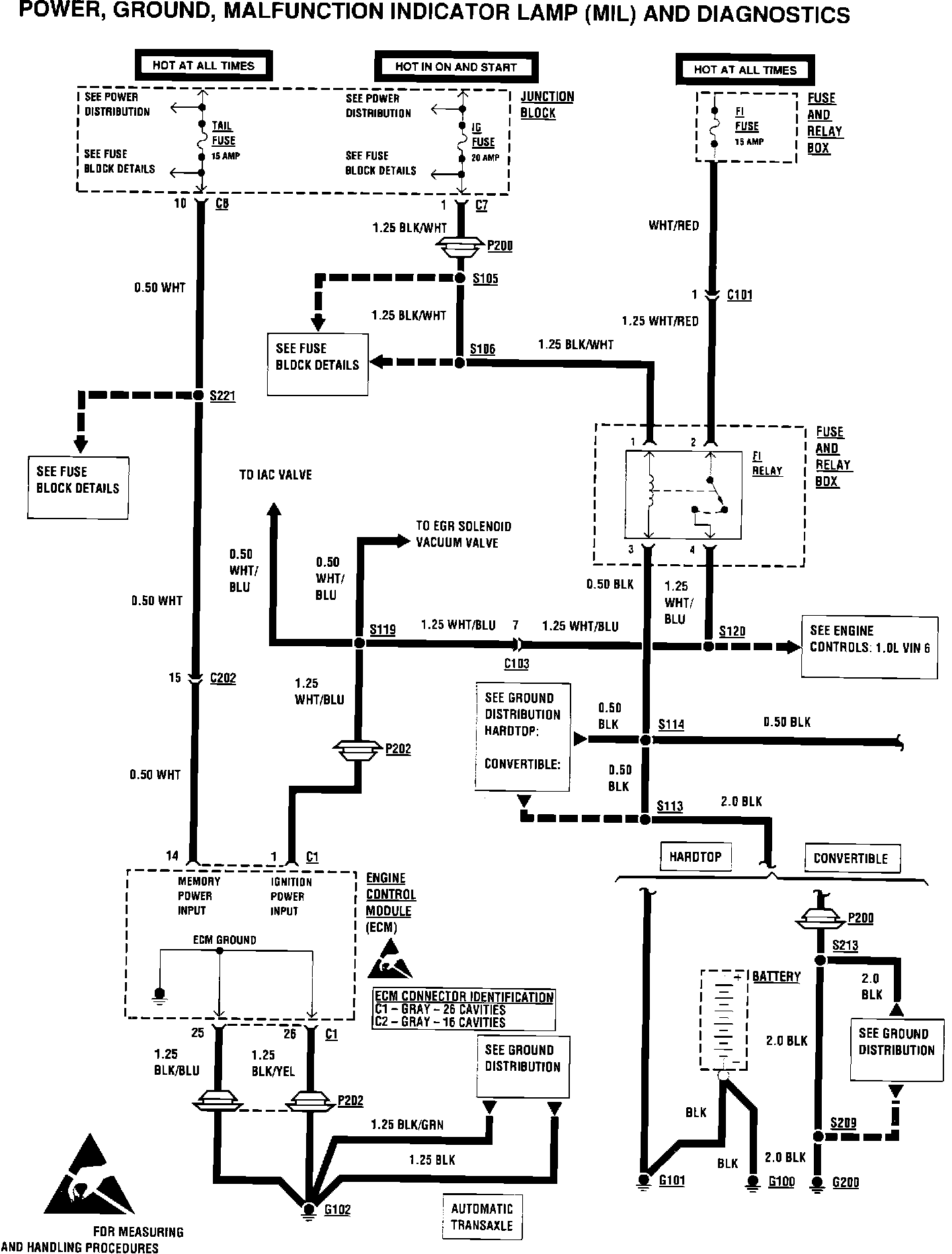

Engine Wiring Diagrams 93 Metro:

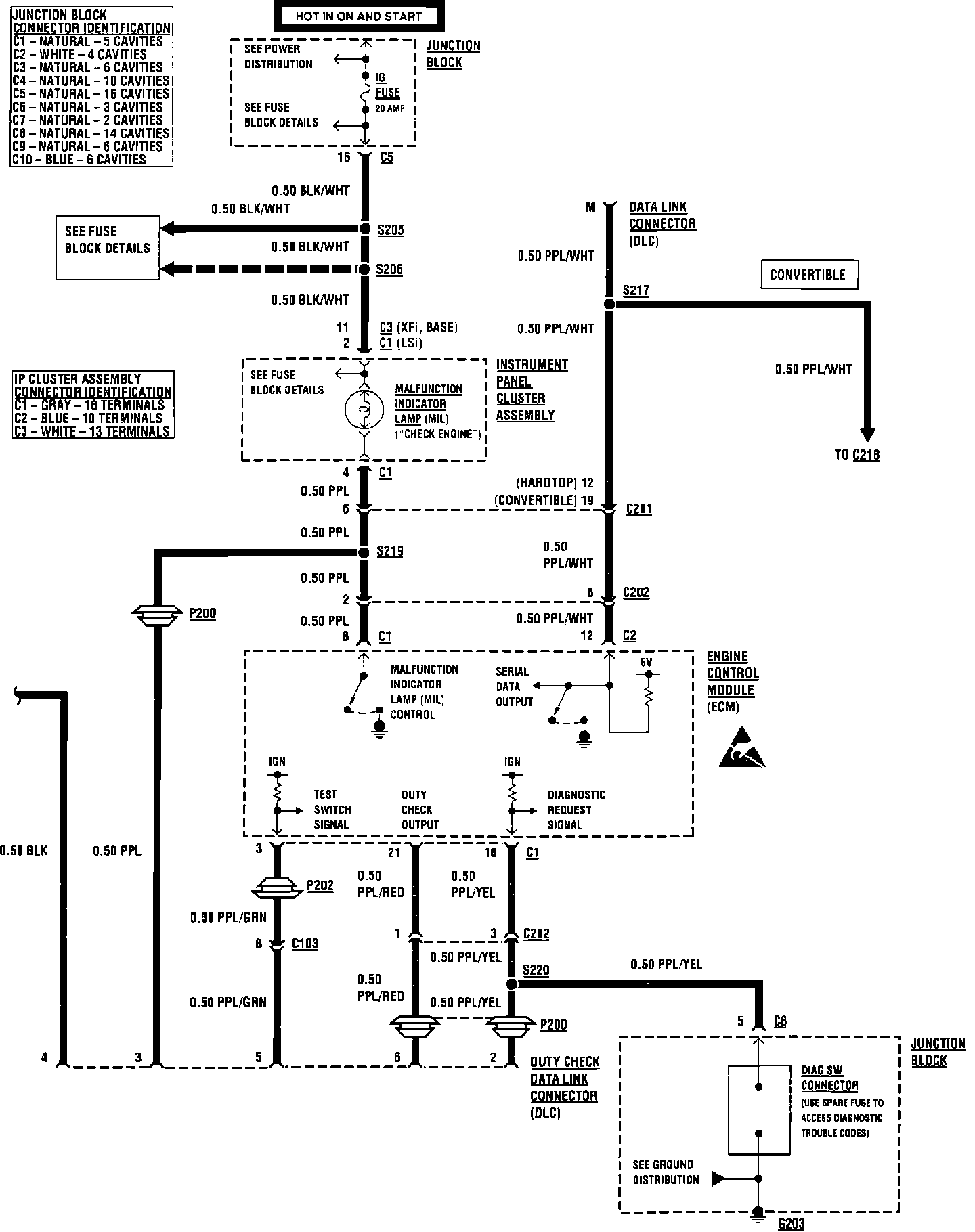

Engine Wiring Diagrams 93 Metro:
