Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> Turn/Hazard Lamps

Turn/Hazard Lamps

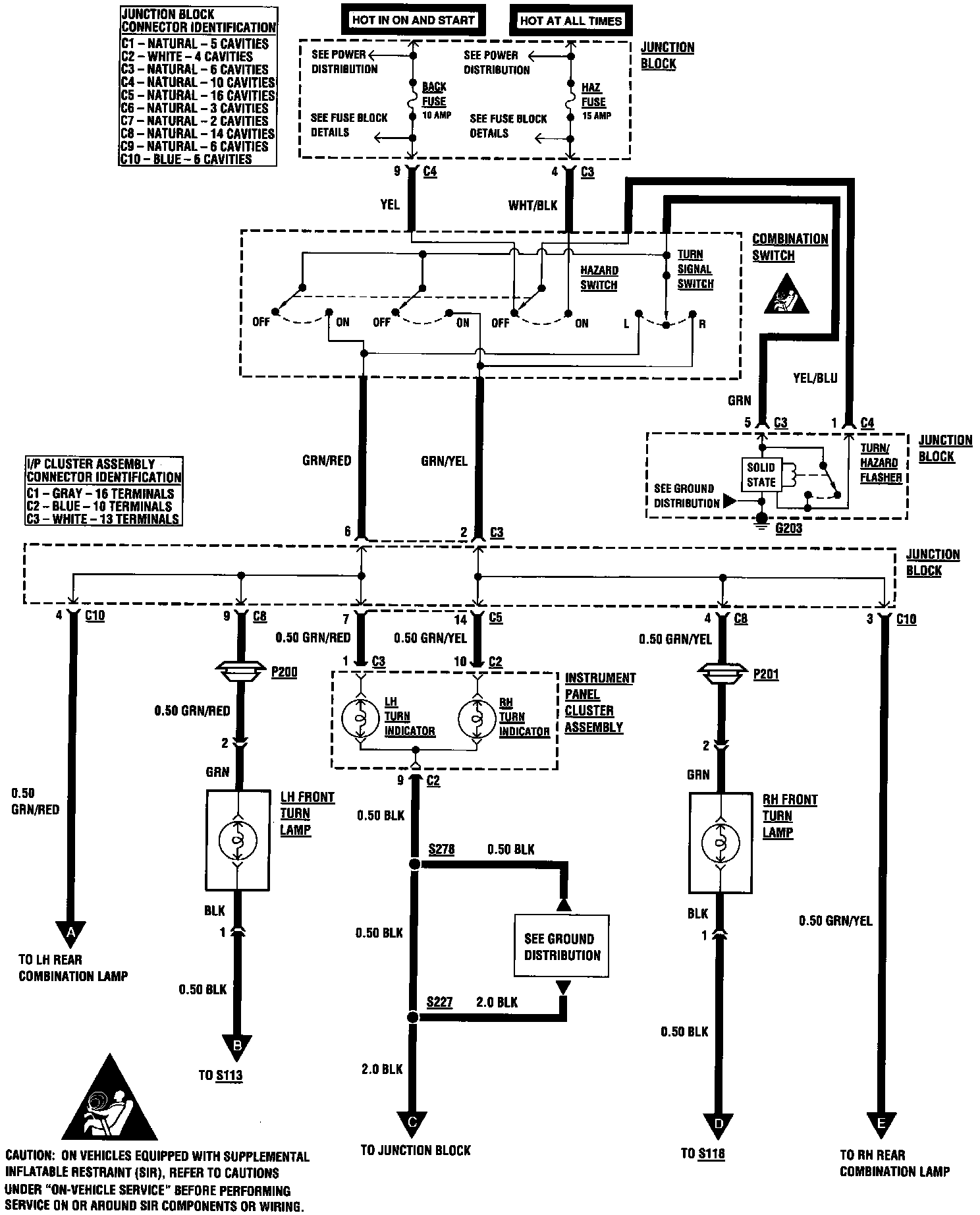

Exterior Lights: Turn/Hazard:



Exterior Lights: Turn/Hazard Cont.:
