Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

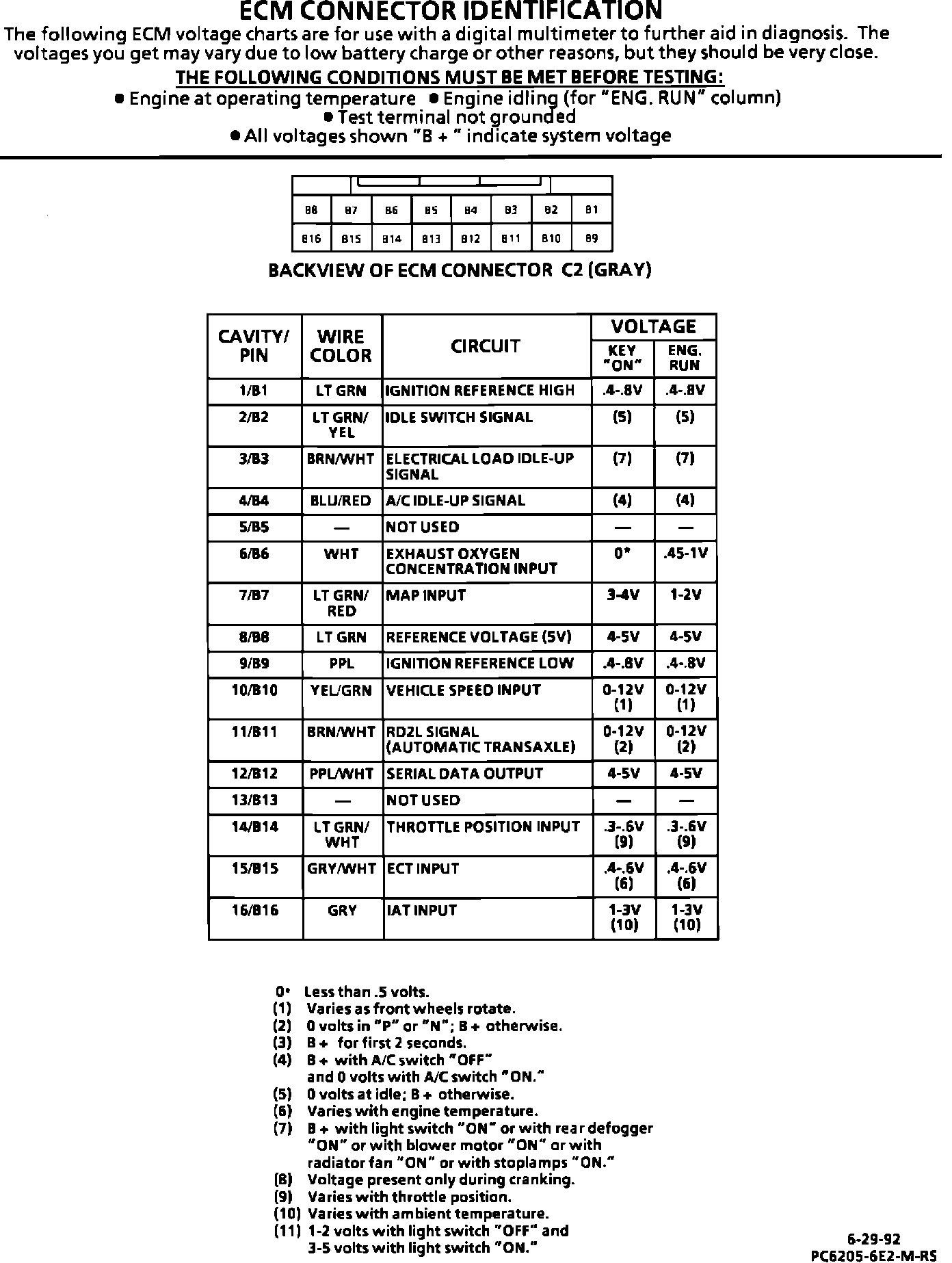

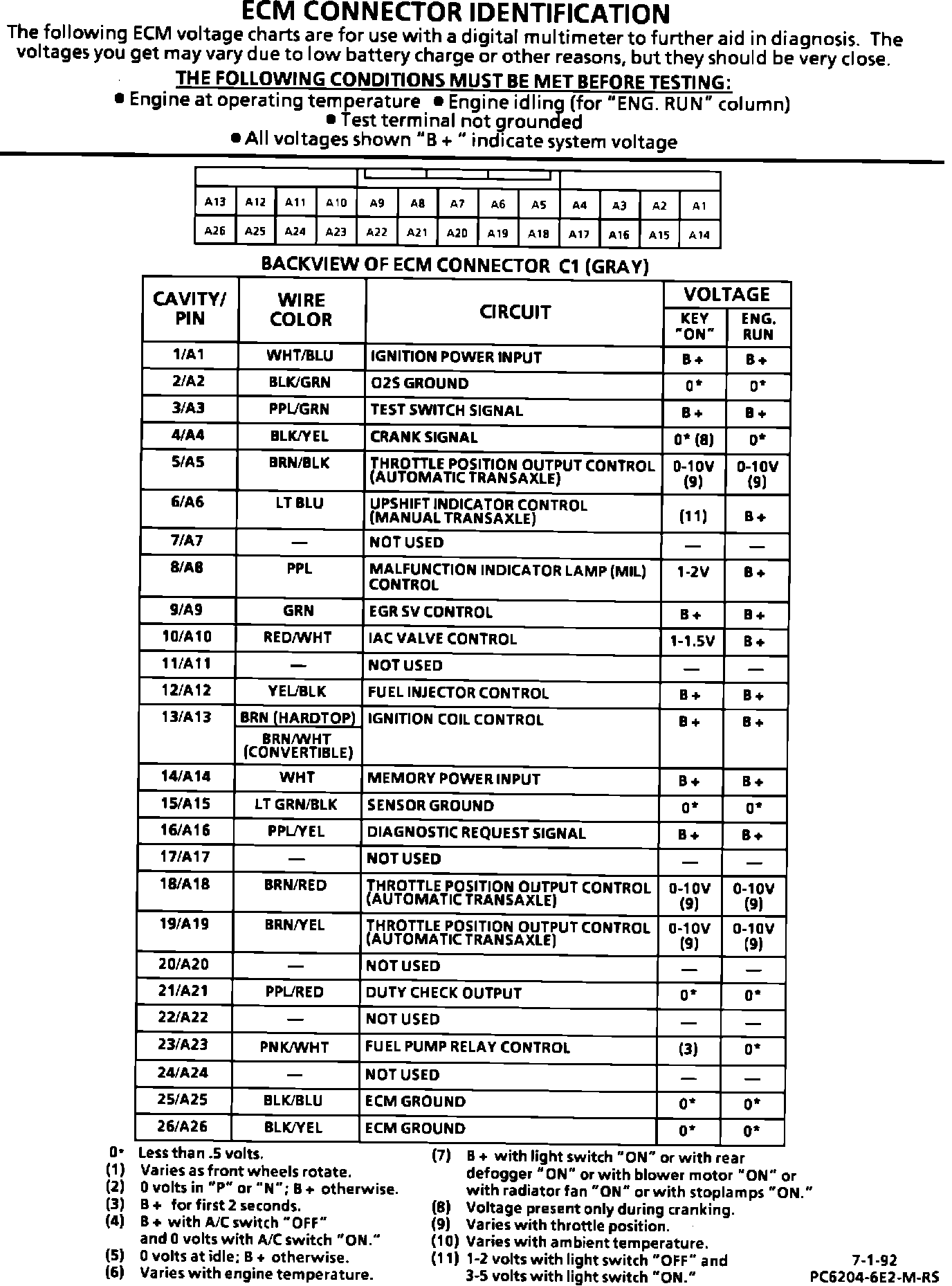

ECM Connector 93 Metro:



ECM Connector 93 Metro:
